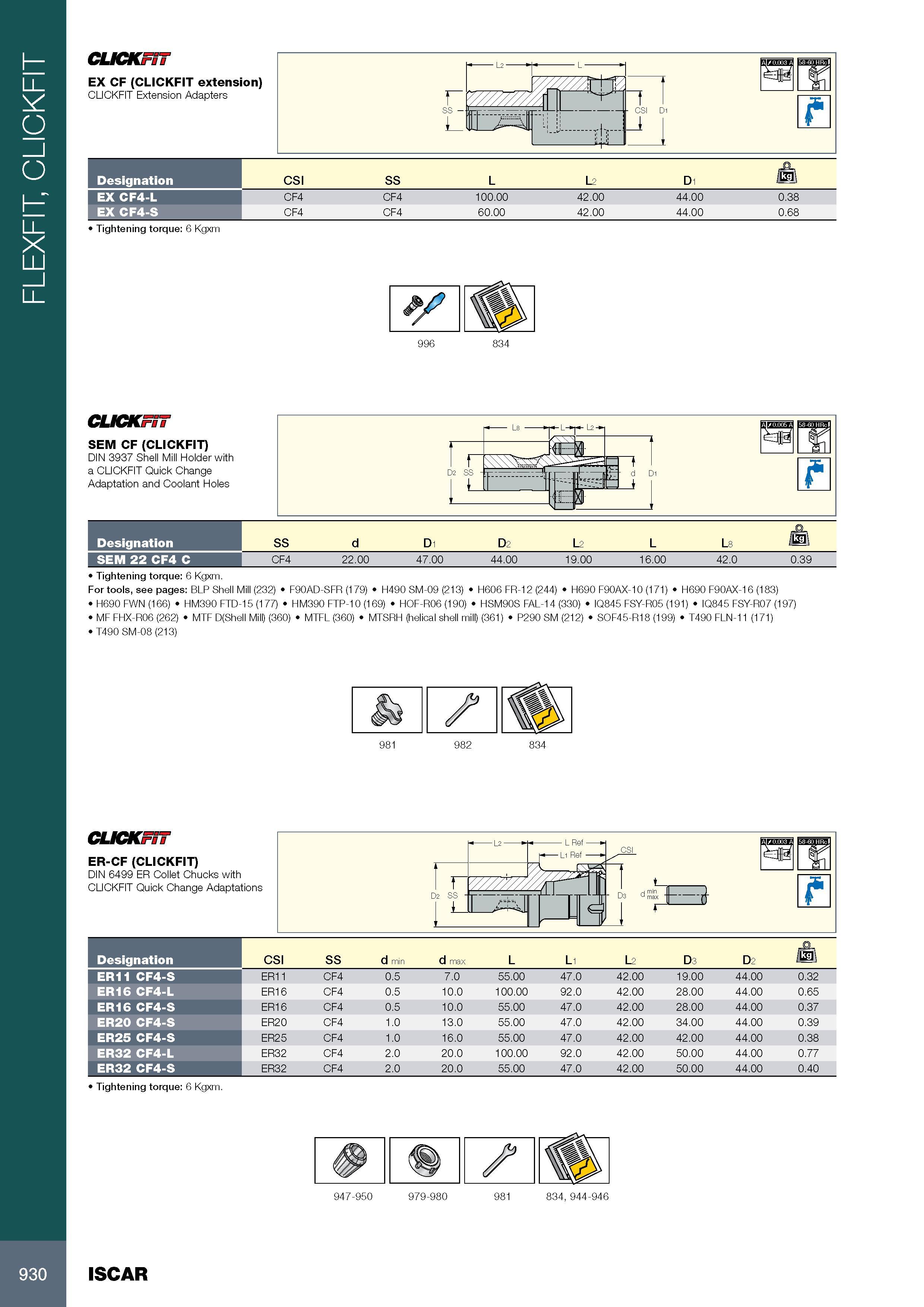

934 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.930

Каталог ISCAR 2017 Ротационный инструмент Стр. 930 0934 ENG Lab2u

FLEXFIT, CLICKFIT CLICKFIT EX CF (CLICKFIT extension) CLICKFIT Extension Adapters r SS CSI D1 J L Обозначение Designation CSI SS L L2 D1 EX CF4-L CF4 CF4 100.00 42.00 44.00 0.38 EX CF4-S CF4 CF4 60.00 42.00 44.00 0.68 Tightening torque: 6 Kgxm CLICKFIT SEM CF (CLICKFIT) DIN 3937 Shell Mill Holder with a CLICKFIT Quick Change Adaptation and Coolant Holes Обозначение Designation SS d D1 D2 L2 L L8 Ml SEM 22 CF4 C CF4 22.00 47.00 44.00 19.00 16.00 42.0 0.39 Tightening torque: 6 Kgxm. For tools, see pages: BLP Shell Mill (232) F90AD-SFR (179) H490 SM-09 (213) H606 FR-12 (244) H690 F90AX-10 (171) H690 F90AX-16 (183) H690 FWN (166) HM390 FTD-15 (177) HM390 FTP-10 (169) HOF-R06 (190) HSM90S FAL-14 (330) IQ845 FSY-R05 (191) IQ845 FSY-R07 (197) MF FHX-R06 (262) MTF D(Shell Mill) (360) MTFL (360) MTSRH (helical shell mill) (361) P290 SM (212) SOF45-R18 (199) T490 FLN-11 (171) T490 SM-08 (213) CLICKFIT ER-CF (CLICKFIT) DIN 6499 ER Collet Chucks with CLICKFIT Quick Change Adaptations Обозначение Designation CSI SS d min d max L L1 L2 D3 D2 /kfl ER11 CF4-S ER11 CF4 0.5 7.0 55.00 47.0 42.00 19.00 44.00 0.32 ER16 CF4-L ER16 CF4 0.5 10.0 100.00 92.0 42.00 28.00 44.00 0.65 ER16 CF4-S ER16 CF4 0.5 10.0 55.00 47.0 42.00 28.00 44.00 0.37 ER20 CF4-S ER20 CF4 1.0 13.0 55.00 47.0 42.00 34.00 44.00 0.39 ER25 CF4-S ER25 CF4 1.0 16.0 55.00 47.0 42.00 42.00 44.00 0.38 ER32 CF4-L ER32 CF4 2.0 20.0 100.00 92.0 42.00 50.00 44.00 0.77 ER32 CF4-S ER32 CF4 2.0 20.0 55.00 47.0 42.00 50.00 44.00 0.40 Tightening torque: 6 Kgxm. ISCAR 930
