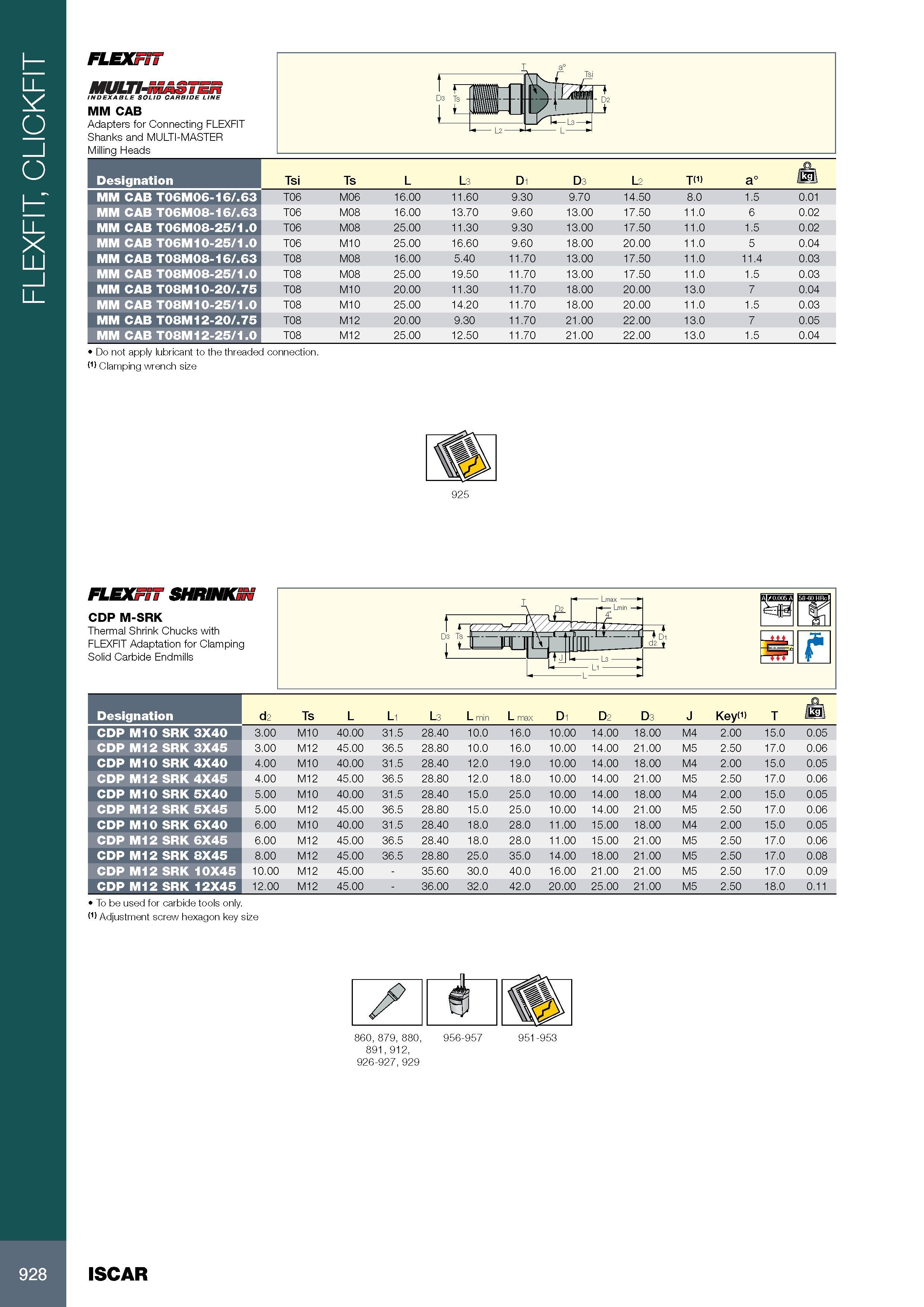

FLEXFIT, CLICKFIT FLEXFIT MULTI-, INDEXABLE SOLID CARBIDE LINE MM CAB Adapters for Connecting FLEXFIT Shanks and MULTI-MASTER Milling Heads Обозначение Designation Tsi Ts L L 3 D1 D3 L2 T(1) a° ra MM CAB T06M06-16/.63 T06 M06 16.00 11.60 9.30 9.70 14.50 8.0 1.5 0.01 MM CAB T06M08-16/.63 T06 M08 16.00 13.70 9.60 13.00 17.50 11.0 6 0.02 MM CAB T06M08-25/1.0 T06 M08 25.00 11.30 9.30 13.00 17.50 11.0 1.5 0.02 MM CAB T06M10-25/1.0 T06 M10 25.00 16.60 9.60 18.00 20.00 11.0 5 0.04 MM CAB T08M08-16/.63 T08 M08 16.00 5.40 11.70 13.00 17.50 11.0 11.4 0.03 MM CAB T08M08-25/1.0 T08 M08 25.00 19.50 11.70 13.00 17.50 11.0 1.5 0.03 MM CAB T08M10-20/.75 T08 M10 20.00 11.30 11.70 18.00 20.00 13.0 7 0.04 MM CAB T08M10-25/1.0 T08 M10 25.00 14.20 11.70 18.00 20.00 11.0 1.5 0.03 MM CAB T08M12-20/.75 T08 M12 20.00 9.30 11.70 21.00 22.00 13.0 7 0.05 MM CAB T08M12-25/1.0 T08 M12 25.00 12.50 11.70 21.00 22.00 13.0 1.5 0.04 Do not apply lubricant to the threaded connection. (1) Clamping wrench size FLEXFIT SHRINKIN CDP M-SRK Thermal Shrink Chucks with FLEXFIT Adaptation for Clamping Solid Carbide Endmills T "A D2 t n c is D Td m tVj Li J Ini' L L -L3 : d Di Обозначение Designation d2 Ts L L1 L3 L min L max D1 D2 D3 J KeyM) T CDP M10 SRK 3X40 3.00 M10 40.00 31.5 28.40 10.0 16.0 10.00 14.00 18.00 M4 2.00 15.0 0.05 CDP M12 SRK 3X45 3.00 M12 45.00 36.5 28.80 10.0 16.0 10.00 14.00 21.00 M5 2.50 17.0 0.06 CDP M10 SRK 4X40 4.00 M10 40.00 31.5 28.40 12.0 19.0 10.00 14.00 18.00 M4 2.00 15.0 0.05 CDP M12 SRK 4X45 4.00 M12 45.00 36.5 28.80 12.0 18.0 10.00 14.00 21.00 M5 2.50 17.0 0.06 CDP M10 SRK 5X40 5.00 M10 40.00 31.5 28.40 15.0 25.0 10.00 14.00 18.00 M4 2.00 15.0 0.05 CDP M12 SRK 5X45 5.00 M12 45.00 36.5 28.80 15.0 25.0 10.00 14.00 21.00 M5 2.50 17.0 0.06 CDP M10 SRK 6X40 6.00 M10 40.00 31.5 28.40 18.0 28.0 11.00 15.00 18.00 M4 2.00 15.0 0.05 CDP M12 SRK 6X45 6.00 M12 45.00 36.5 28.40 18.0 28.0 11.00 15.00 21.00 M5 2.50 17.0 0.06 CDP M12 SRK 8X45 8.00 M12 45.00 36.5 28.80 25.0 35.0 14.00 18.00 21.00 M5 2.50 17.0 0.08 CDP M12 SRK 10X45 10.00 M12 45.00 - 35.60 30.0 40.0 16.00 21.00 21.00 M5 2.50 17.0 0.09 CDP M12 SRK 12X45 12.00 M12 45.00 - 36.00 32.0 42.0 20.00 25.00 21.00 M5 2.50 18.0 0.11 To be used for carbide tools only. (1) Adjustment screw hexagon key size 860, 879, 880, 956-957 951-953 891, 912, 926-927, 929 928 ISCAR
