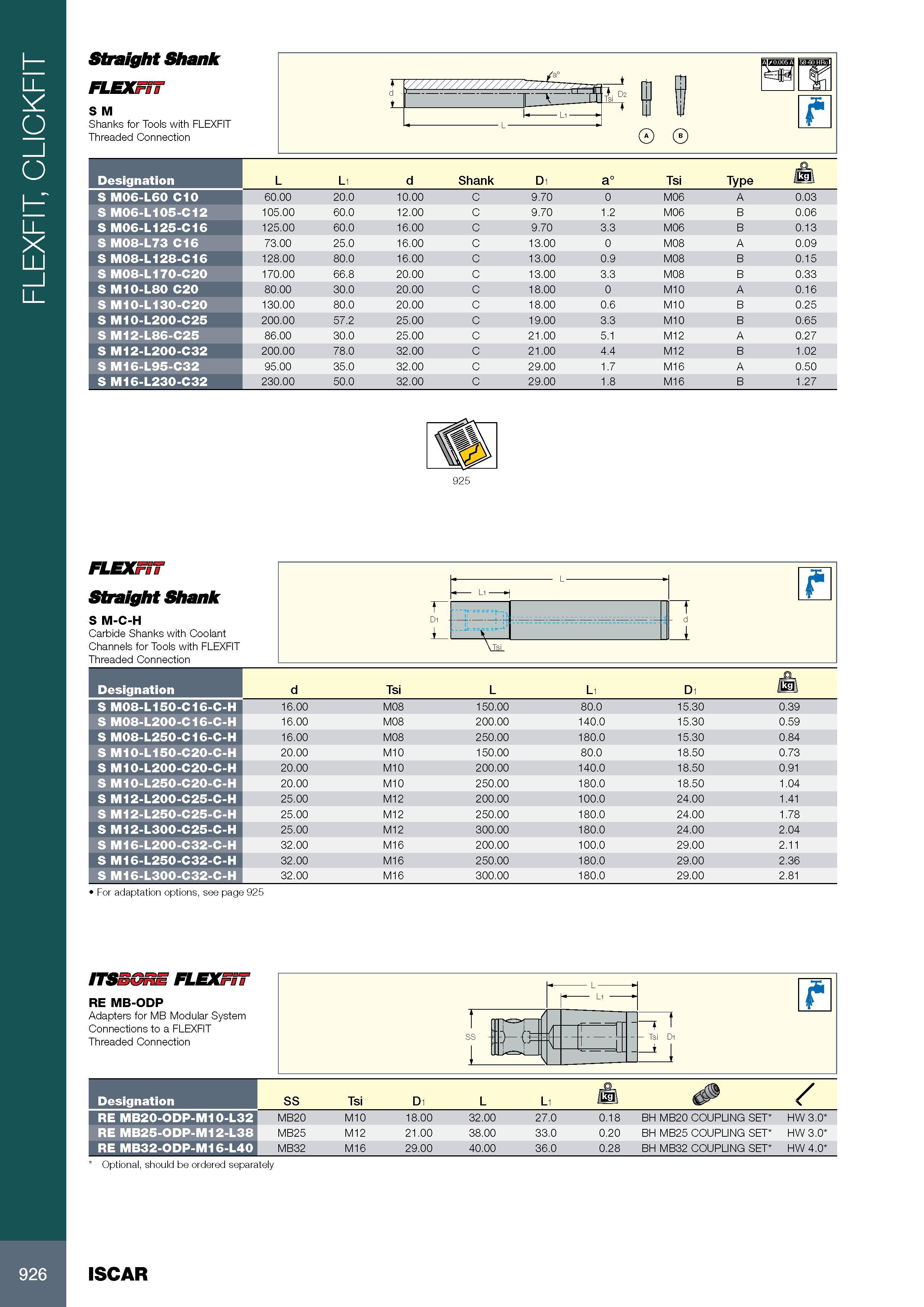

930 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.926

Каталог ISCAR 2017 Ротационный инструмент Стр. 926 0930 ENG Lab2u

FLEXFIT, CLICKFIT Straight Shank FLEXFiT S M Shanks for Tools with FLEXFIT Threaded Connection Обозначение Designation L L1 d Shank D1 a° Tsi Type JPt M S M06-L60 C10 60.00 20.0 10.00 C 9.70 0 M06 A 0.03 S M06-L105-C12 105.00 60.0 12.00 C 9.70 1.2 M06 B 0.06 S M06-L125-C16 125.00 60.0 16.00 C 9.70 3.3 M06 B 0.13 S M08-L73 C16 73.00 25.0 16.00 C 13.00 0 M08 A 0.09 S M08-L128-C16 128.00 80.0 16.00 C 13.00 0.9 M08 B 0.15 S M08-L170-C20 170.00 66.8 20.00 C 13.00 3.3 M08 B 0.33 S M10-L80 C20 80.00 30.0 20.00 C 18.00 0 M10 A 0.16 S M10-L130-C20 130.00 80.0 20.00 C 18.00 0.6 M10 B 0.25 S M10-L200-C25 200.00 57.2 25.00 C 19.00 3.3 M10 B 0.65 S M12-L86-C25 86.00 30.0 25.00 C 21.00 5.1 M12 A 0.27 S M12-L200-C32 200.00 78.0 32.00 C 21.00 4.4 M12 B 1.02 S M16-L95-C32 95.00 35.0 32.00 C 29.00 1.7 M16 A 0.50 S M16-L230-C32 230.00 50.0 32.00 C 29.00 1.8 M16 B 1.27 FLEX 77 // Straight Shank S M-C-H Carbide Shanks with Coolant Channels for Tools with FLEXFIT Threaded Connection Li L Di i> I \ 1 I 1 Обозначение Designation d Tsi L L1 D1 /k S M08-L150-C16-C-H 16.00 M08 150.00 80.0 15.30 0.39 S M08-L200-C16-C-H 16.00 M08 200.00 140.0 15.30 0.59 S M08-L250-C16-C-H 16.00 M08 250.00 180.0 15.30 0.84 S M10-L150-C20-C-H 20.00 M10 150.00 80.0 18.50 0.73 S M10-L200-C20-C-H 20.00 M10 200.00 140.0 18.50 0.91 S M10-L250-C20-C-H 20.00 M10 250.00 180.0 18.50 1.04 S M12-L200-C25-C-H 25.00 M12 200.00 100.0 24.00 1.41 S M12-L250-C25-C-H 25.00 M12 250.00 180.0 24.00 1.78 S M12-L300-C25-C-H 25.00 M12 300.00 180.0 24.00 2.04 S M16-L200-C32-C-H 32.00 M16 200.00 100.0 29.00 2.11 S M16-L250-C32-C-H 32.00 M16 250.00 180.0 29.00 2.36 S M16-L300-C32-C-H 32.00 M16 300.00 180.0 29.00 2.81 For adaptation options, see page 925 ITSEOnE FLEXFiT RE MB-ODP Adapters for MB Modular System Connections to a FLEXFIT Threaded Connection Обозначение Designation SS Tsi D1 L L1 & / RE MB20-ODP-M10-L32 MB20 M10 18.00 32.00 27.0 0.18 BH MB20 COUPLING SET HW 3.0 RE MB25-ODP-M12-L38 MB25 M12 21.00 38.00 33.0 0.20 BH MB25 COUPLING SET HW 3.0 RE MB32-ODP-M16-L40 MB32 M16 29.00 40.00 36.0 0.28 BH MB32 COUPLING SET HW 4.0 Optional, should be ordered separately 926 ISCAR
