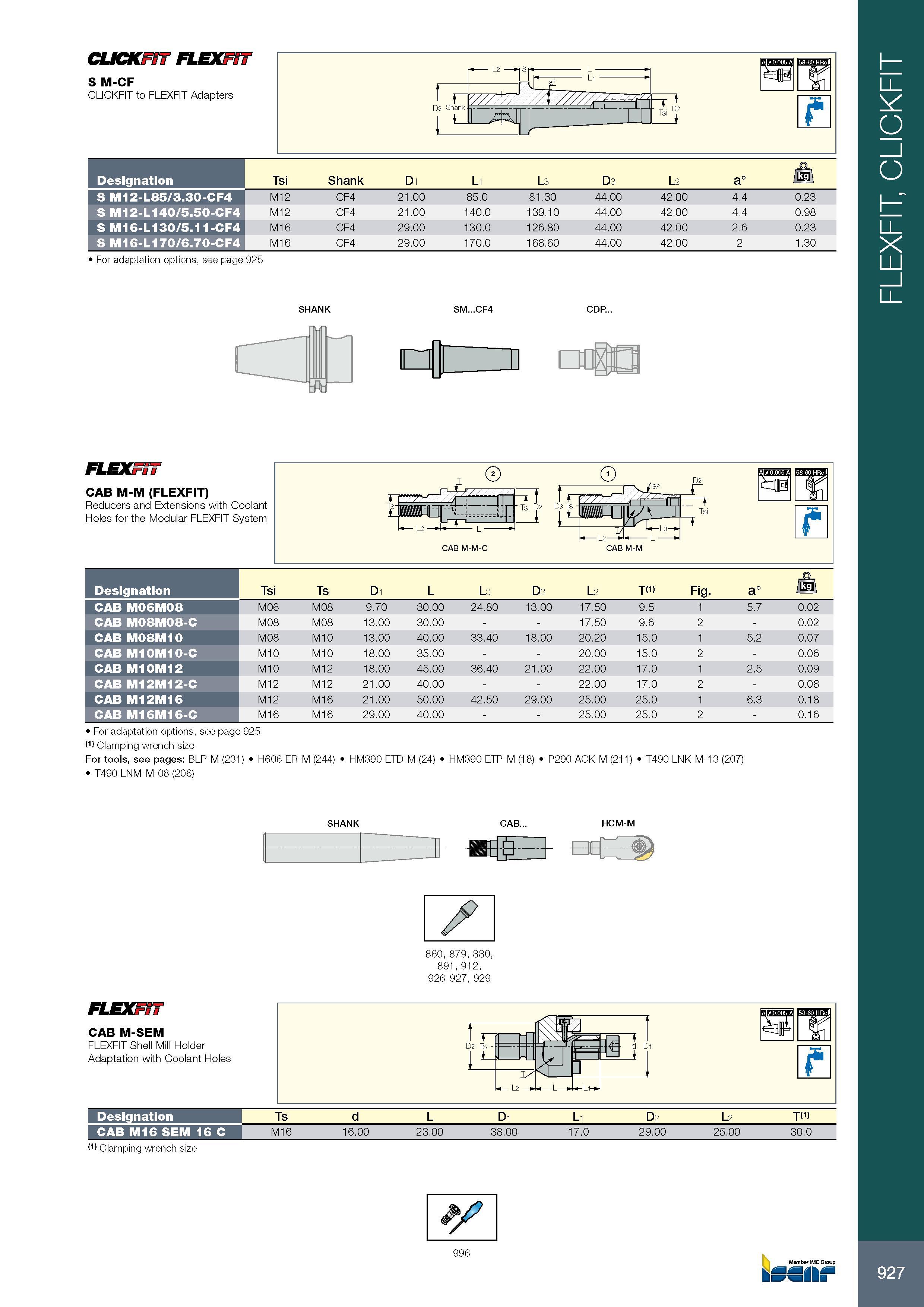

927 CLICKFIT FLEXFIT S M-CF CLICKFIT to FLEXFIT Adapters Обозначение Designation Tsi Shank D1 L1 L3 D3 L2 a° (PL S M12-L85/3.30-CF4 M12 CF4 21.00 85.0 81.30 44.00 42.00 4.4 0.23 S M12-L140/5.50-CF4 M12 CF4 21.00 140.0 139.10 44.00 42.00 4.4 0.98 S M16-L130/5.11-CF4 M16 CF4 29.00 130.0 126.80 44.00 42.00 2.6 0.23 S M16-L170/6.70-CF4 M16 CF4 29.00 170.0 168.60 44.00 42.00 2 1.30 For adaptation options, see page 925 SHANK SM...CF4 CDP... r fl 1H 1 1 i mol: FLEXFIT CAB M-M (FLEXFIT) Reducers and Extensions with Coolant Holes for the Modular FLEXFIT System f CAB M-M-C CAB M-M Обозначение Designation Tsi Ts D1 L L3 D3 L2 TM) Fig. a° CAB M06M08 M06 M08 9.70 30.00 24.80 13.00 17.50 9.5 1 5.7 0.02 CAB M08M08-C M08 M08 13.00 30.00 17.50 9.6 2 - 0.02 CAB M08M10 M08 M10 13.00 40.00 33.40 18.00 20.20 15.0 1 5.2 0.07 CAB M10M10-C M10 M10 18.00 35.00 20.00 15.0 2 - 0.06 CAB M10M12 M10 M12 18.00 45.00 36.40 21.00 22.00 17.0 1 2.5 0.09 CAB M12M12-C M12 M12 21.00 40.00 22.00 17.0 2 - 0.08 CAB M12M16 M12 M16 21.00 50.00 42.50 29.00 25.00 25.0 1 6.3 0.18 CAB M16M16-C M16 M16 29.00 40.00 25.00 25.0 2 - 0.16 For adaptation options, see page 925 (1) Clamping wrench size For tools, see pages: BLP-M (231) H606 ER-M (244) HM390 ETD-M (24) HM390 ETP-M (18) P290 ACK-M (211) T490 LNK-M-13 (207) T490 LNM-M-08 (206) HCM-M SHANK 860, 879, 880, 891, 912, 926-927, 929 FLEXFIT CAB M-SEM FLEXFIT Shell Mill Holder Adaptation with Coolant Holes Ts d L D1 L1 D2 L2 TM) 1 CAB M16 SEM 16 C M16 16.00 23.00 38.00 17.0 29.00 25.00 30.0 (1) Clamping wrench size FLEXFIT, CLICKFIT
