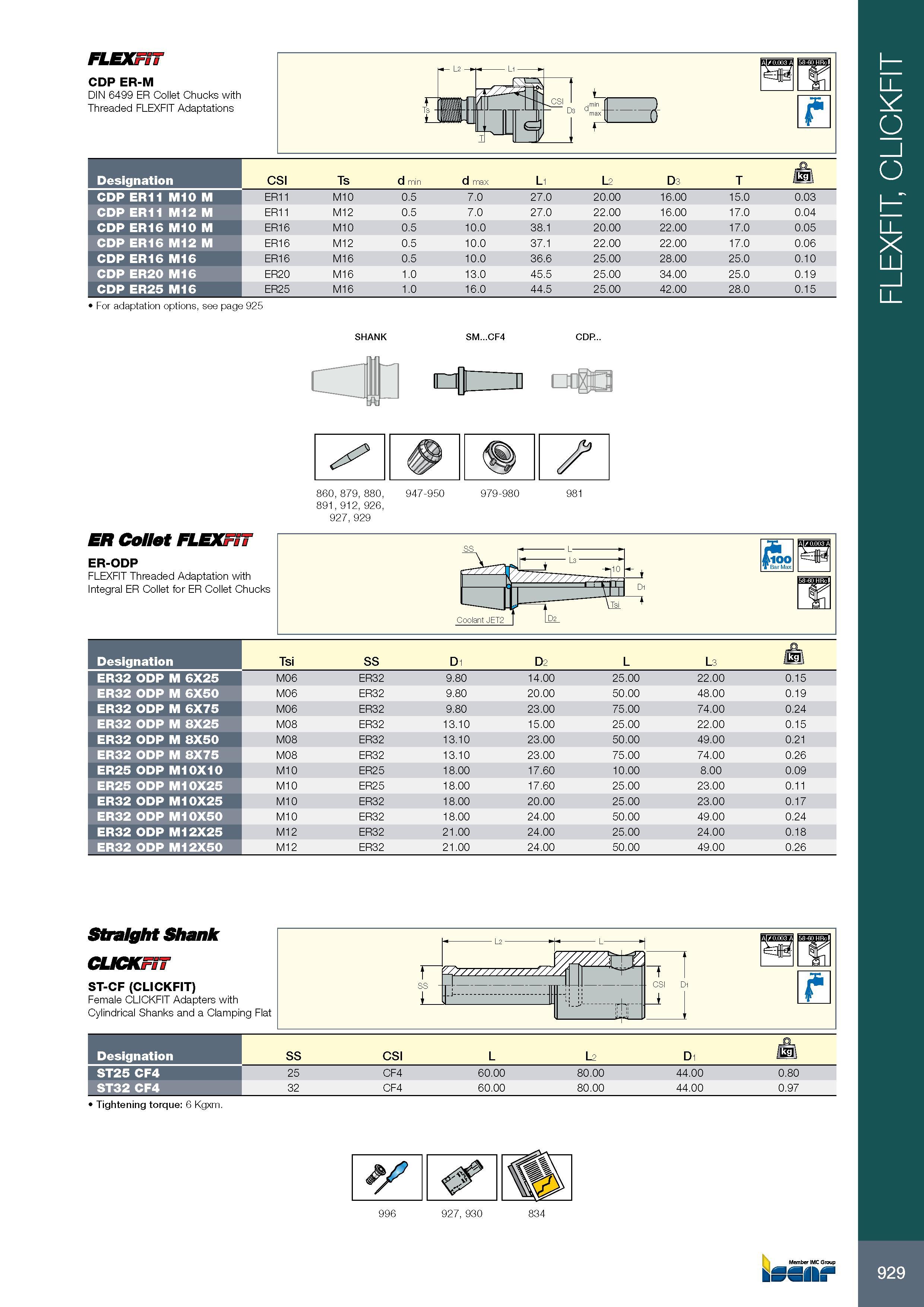

929 FLEXFIT CDP ER-M DIN 6499 ER Collet Chucks with Threaded FLEXFIT Adaptations Обозначение Designation CSI Ts d min d max L1 L2 D3 T M CDP ER11 M10 M ER11 M10 0.5 7.0 27.0 20.00 16.00 15.0 0.03 CDP ER11 M12 M ER11 M12 0.5 7.0 27.0 22.00 16.00 17.0 0.04 CDP ER16 M10 M ER16 M10 0.5 10.0 38.1 20.00 22.00 17.0 0.05 CDP ER16 M12 M ER16 M12 0.5 10.0 37.1 22.00 22.00 17.0 0.06 CDP ER16 M16 ER16 M16 0.5 10.0 36.6 25.00 28.00 25.0 0.10 CDP ER20 M16 ER20 M16 1.0 13.0 45.5 25.00 34.00 25.0 0.19 CDP ER25 M16 ER25 M16 1.0 16.0 44.5 25.00 42.00 28.0 0.15 For adaptation options, see page 925 SHANK SM...CF4 CDP... oOCU ngn / 860, 879, 880, 947-950 979-980 981 891, 912, 926, 927, 929 ER Collet FLEXFIT ER-ODP FLEXFIT Threaded Adaptation with Integral ER Collet for ER Collet Chucks T Bar Max n m Обозначение Designation Tsi SS D1 D2 L L3 o ER32 ODP M 6X25 M06 ER32 9.80 14.00 25.00 22.00 0.15 ER32 ODP M 6X50 M06 ER32 9.80 20.00 50.00 48.00 0.19 ER32 ODP M 6X75 M06 ER32 9.80 23.00 75.00 74.00 0.24 ER32 ODP M 8X25 M08 ER32 13.10 15.00 25.00 22.00 0.15 ER32 ODP M 8X50 M08 ER32 13.10 23.00 50.00 49.00 0.21 ER32 ODP M 8X75 M08 ER32 13.10 23.00 75.00 74.00 0.26 ER25 ODP M10X10 M10 ER25 18.00 17.60 10.00 8.00 0.09 ER25 ODP M10X25 M10 ER25 18.00 17.60 25.00 23.00 0.11 ER32 ODP M10X25 M10 ER32 18.00 20.00 25.00 23.00 0.17 ER32 ODP M10X50 M10 ER32 18.00 24.00 50.00 49.00 0.24 ER32 ODP M12X25 M12 ER32 21.00 24.00 25.00 24.00 0.18 ER32 ODP M12X50 M12 ER32 21.00 24.00 50.00 49.00 0.26 Straight Shank CLICKFIT ST-CF (CLICKFIT) Female CLICKFIT Adapters with Cylindrical Shanks and a Clamping Flat Tightening torque: 6 Kgxm. TP SS i ///////////A IB mm -7hr f - CSI Di Обозначение Designation SS CSI L L2 D1 ft ST25 CF4 25 CF4 60.00 80.00 44.00 0.80 ST32 CF4 32 CF4 60.00 80.00 44.00 0.97 FLEXFIT, CLICKFIT
