927 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.923

Каталог ISCAR 2017 Ротационный инструмент Стр. 923 0927 ENG Lab2u

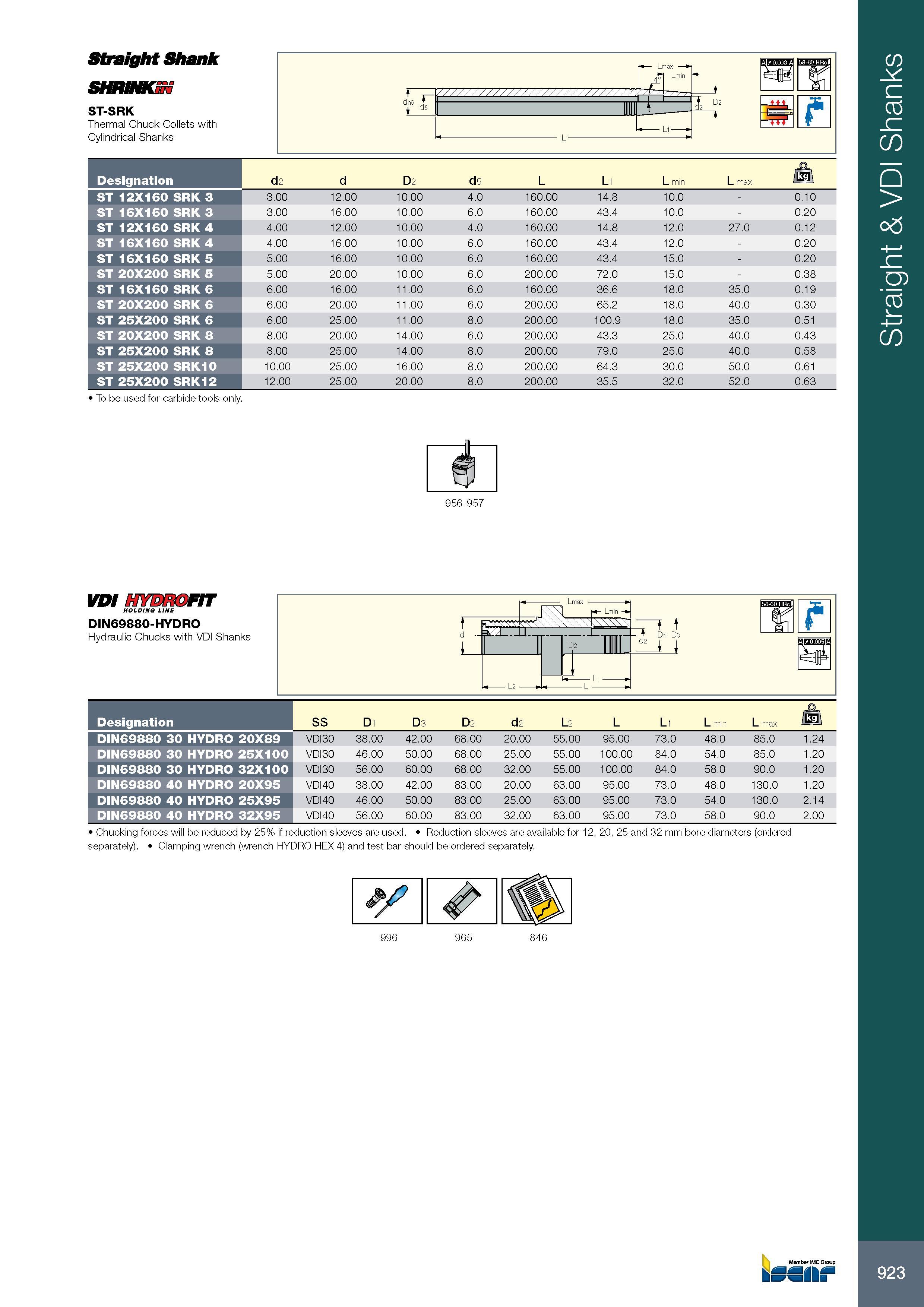

923 Straight Shank ST-SRK Thermal Chuck Collets with Cylindrical Shanks i j Обозначение Designation d2 d D2 d5 L L1 L min L max /k l\ ST 12X160 SRK 3 3.00 12.00 10.00 4.0 160.00 14.8 10.0 - 0.10 ST 16X160 SRK 3 3.00 16.00 10.00 6.0 160.00 43.4 10.0 - 0.20 ST 12X160 SRK 4 4.00 12.00 10.00 4.0 160.00 14.8 12.0 27.0 0.12 ST 16X160 SRK 4 4.00 16.00 10.00 6.0 160.00 43.4 12.0 - 0.20 ST 16X160 SRK 5 5.00 16.00 10.00 6.0 160.00 43.4 15.0 - 0.20 ST 20X200 SRK 5 5.00 20.00 10.00 6.0 200.00 72.0 15.0 - 0.38 ST 16X160 SRK 6 6.00 16.00 11.00 6.0 160.00 36.6 18.0 35.0 0.19 ST 20X200 SRK 6 6.00 20.00 11.00 6.0 200.00 65.2 18.0 40.0 0.30 ST 25X200 SRK 6 6.00 25.00 11.00 8.0 200.00 100.9 18.0 35.0 0.51 ST 20X200 SRK 8 8.00 20.00 14.00 6.0 200.00 43.3 25.0 40.0 0.43 ST 25X200 SRK 8 8.00 25.00 14.00 8.0 200.00 79.0 25.0 40.0 0.58 ST 25X200 SRK10 10.00 25.00 16.00 8.0 200.00 64.3 30.0 50.0 0.61 ST 25X200 SRK12 12.00 25.00 20.00 8.0 200.00 35.5 32.0 52.0 0.63 To be used for carbide tools only. 956-957 VDI HYDROFIT HOLDING LINE DIN69880-HYDRO Hydraulic Chucks with VDI Shanks Обозначение Designation SS D1 D3 D2 d2 L2 L L1 L min L max DIN69880 30 HYDRO 20X89 VDI30 38.00 42.00 68.00 20.00 55.00 95.00 73.0 48.0 85.0 1.24 DIN69880 30 HYDRO 25X100 VDI30 46.00 50.00 68.00 25.00 55.00 100.00 84.0 54.0 85.0 1.20 DIN69880 30 HYDRO 32X100 VDI30 56.00 60.00 68.00 32.00 55.00 100.00 84.0 58.0 90.0 1.20 DIN69880 40 HYDRO 20X95 VDI40 38.00 42.00 83.00 20.00 63.00 95.00 73.0 48.0 130.0 1.20 DIN69880 40 HYDRO 25X95 VDI40 46.00 50.00 83.00 25.00 63.00 95.00 73.0 54.0 130.0 2.14 DIN69880 40 HYDRO 32X95 VDI40 56.00 60.00 83.00 32.00 63.00 95.00 73.0 58.0 90.0 2.00 Chucking forces will be reduced by 25% if reduction sleeves are used. Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately). Clamping wrench (wrench HYDRO HEX 4) and test bar should be ordered separately. 996 965 846 Member IMC Group kSSlIf Straight & VDI Shanks
