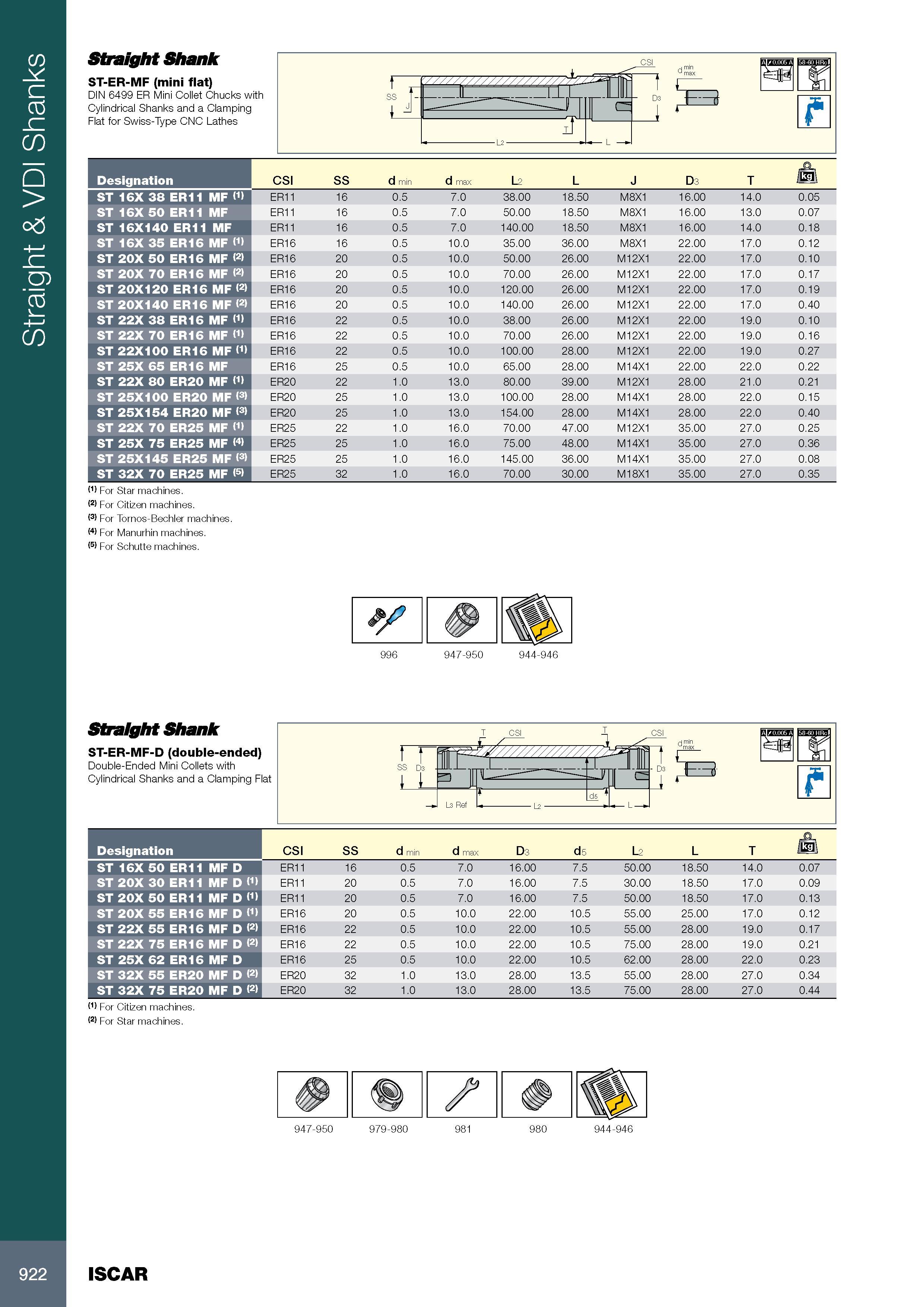

Straight & VDI Shanks Straight Shank ST-ER-MF (mini flat) DIN 6499 ER Mini Collet Chucks with Cylindrical Shanks and a Clamping Flat for Swiss-Type CNC Lathes Обозначение Designation CSI SS d min d max L2 L J D3 T M ST 16X 38 ER11 MF (1) ER11 16 0.5 7.0 38.00 18.50 M8X1 16.00 14.0 0.05 ST 16X 50 ER11 MF ER11 16 0.5 7.0 50.00 18.50 M8X1 16.00 13.0 0.07 ST 16X140 ER11 MF ER11 16 0.5 7.0 140.00 18.50 M8X1 16.00 14.0 0.18 ST 16X 35 ER16 MF (1) ER16 16 0.5 10.0 35.00 36.00 M8X1 22.00 17.0 0.12 ST 20X 50 ER16 MF (2) ER16 20 0.5 10.0 50.00 26.00 M12X1 22.00 17.0 0.10 ST 20X 70 ER16 MF (2) ER16 20 0.5 10.0 70.00 26.00 M12X1 22.00 17.0 0.17 ST 20X120 ER16 MF (2) ER16 20 0.5 10.0 120.00 26.00 M12X1 22.00 17.0 0.19 ST 20X140 ER16 MF (2) ER16 20 0.5 10.0 140.00 26.00 M12X1 22.00 17.0 0.40 ST 22X 38 ER16 MF (1) ER16 22 0.5 10.0 38.00 26.00 M12X1 22.00 19.0 0.10 ST 22X 70 ER16 MF (1) ER16 22 0.5 10.0 70.00 26.00 M12X1 22.00 19.0 0.16 ST 22X100 ER16 MF (1) ER16 22 0.5 10.0 100.00 28.00 M12X1 22.00 19.0 0.27 ST 25X 65 ER16 MF ER16 25 0.5 10.0 65.00 28.00 M14X1 22.00 22.0 0.22 ST 22X 80 ER20 MF (1) ER20 22 1.0 13.0 80.00 39.00 M12X1 28.00 21.0 0.21 ST 25X100 ER20 MF (3) ER20 25 1.0 13.0 100.00 28.00 M14X1 28.00 22.0 0.15 ST 25X154 ER20 MF (3) ER20 25 1.0 13.0 154.00 28.00 M14X1 28.00 22.0 0.40 ST 22X 70 ER25 MF (1) ER25 22 1.0 16.0 70.00 47.00 M12X1 35.00 27.0 0.25 ST 25X 75 ER25 MF (4) ER25 25 1.0 16.0 75.00 48.00 M14X1 35.00 27.0 0.36 ST 25X145 ER25 MF (3) ER25 25 1.0 16.0 145.00 36.00 M14X1 35.00 27.0 0.08 ST 32X 70 ER25 MF (5) ER25 32 1.0 16.0 70.00 30.00 M18X1 35.00 27.0 0.35 (1) For Star machines. (2) For Citizen machines. (3) For Tornos-Bechler machines. (4) For Manurhin machines. (5) For Schutte machines. Straight Shank ST-ER-MF-D (double-ended) Double-Ended Mini Collets with Cylindrical Shanks and a Clamping Flat Обозначение Designation CSI SS d min d max D3 d5 L2 L T ST 16X 50 ER11 MF D ER11 16 0.5 7.0 16.00 7.5 50.00 18.50 14.0 0.07 ST 20X 30 ER11 MF D (1) ER11 20 0.5 7.0 16.00 7.5 30.00 18.50 17.0 0.09 ST 20X 50 ER11 MF D (1) ER11 20 0.5 7.0 16.00 7.5 50.00 18.50 17.0 0.13 ST 20X 55 ER16 MF D (1) ER16 20 0.5 10.0 22.00 10.5 55.00 25.00 17.0 0.12 ST 22X 55 ER16 MF D (2) ER16 22 0.5 10.0 22.00 10.5 55.00 28.00 19.0 0.17 ST 22X 75 ER16 MF D (2) ER16 22 0.5 10.0 22.00 10.5 75.00 28.00 19.0 0.21 ST 25X 62 ER16 MF D ER16 25 0.5 10.0 22.00 10.5 62.00 28.00 22.0 0.23 ST 32X 55 ER20 MF D (2) ER20 32 1.0 13.0 28.00 13.5 55.00 28.00 27.0 0.34 ST 32X 75 ER20 MF D (2) ER20 32 1.0 13.0 28.00 13.5 75.00 28.00 27.0 0.44 (1) For Citizen machines. (2) For Star machines. 947-950 979-980 / 981 980 944-946 922 ISCAR
