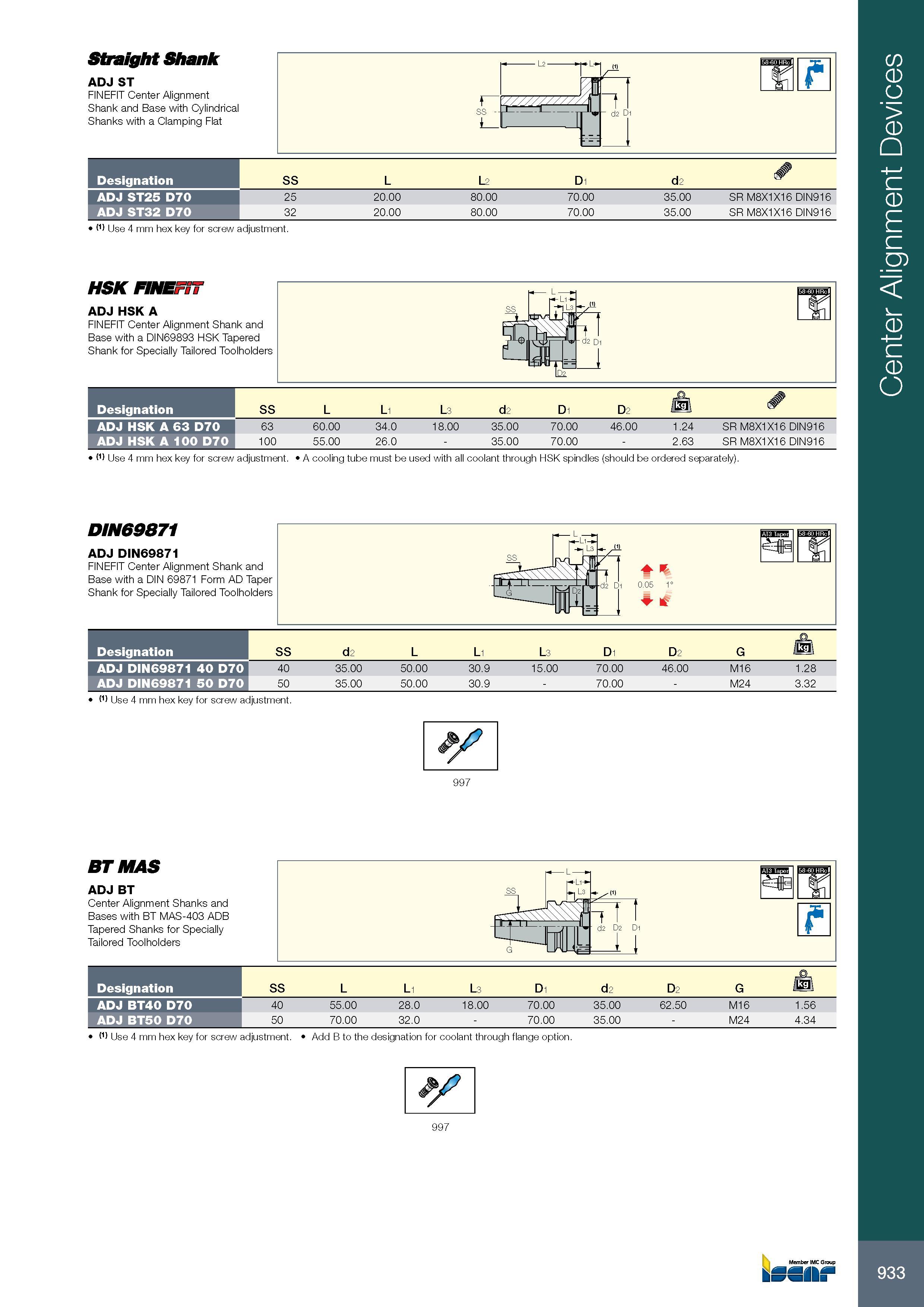

933 Straight Shank ADJ ST FINEFIT Center Alignment Shank and Base with Cylindrical Shanks with a Clamping Flat Обозначение Designation ADJ ST25 D70 ADJ ST32 D70 SS L L2 D1 d2 25 20.00 80.00 70.00 35.00 SR M8X1X16 DIN916 32 20.00 80.00 70.00 35.00 SR M8X1X16 DIN916 (1) Use 4 mm hex key for screw adjustment. HSK FINEFST ADJ HSK A FINEFIT Center Alignment Shank and Base with a DIN69893 HSK Tapered Shank for Specially Tailored Toolholders Обозначение Designation SS L L1 L3 d2 D1 D2 m ADJ HSK A 63 D70 63 60.00 34.0 18.00 35.00 70.00 46.00 1.24 SR M8X1X16 DIN916 ADJ HSK A 100 D70 100 55.00 26.0 - 35.00 70.00 - 2.63 SR M8X1X16 DIN916 (1) Use 4 mm hex key for screw adjustment. A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). DIN69871 ADJ DIN69871 FINEFIT Center Alignment Shank and Base with a DIN 69871 Form AD Taper Shank for Specially Tailored Toolholders Обозначение Designation ADJ DIN69871 40 D70 ADJ DIN69871 50 D70 SS d2 L L1 L3 D1 D2 G 40 35.00 50.00 30.9 15.00 70.00 46.00 M16 1.28 50 35.00 50.00 30.9 - 70.00 - M24 3.32 (1) Use 4 mm hex key for screw adjustment. 997 BT MAS ADJ BT Center Alignment Shanks and Bases with BT MAS-403 ADB Tapered Shanks for Specially Tailored Toolholders Обозначение Designation ADJ BT40 D70 ADJ BT50 D70 SS L1 L3 D1 d2 D2 40 50 55.00 70.00 28.0 32.0 18.00 70.00 70.00 35.00 35.00 62.50 M16 M24 1.56 4.34 (1) Use 4 mm hex key for screw adjustment. Add B to the designation for coolant through flange option. L G 997 Center Alignment Devices
