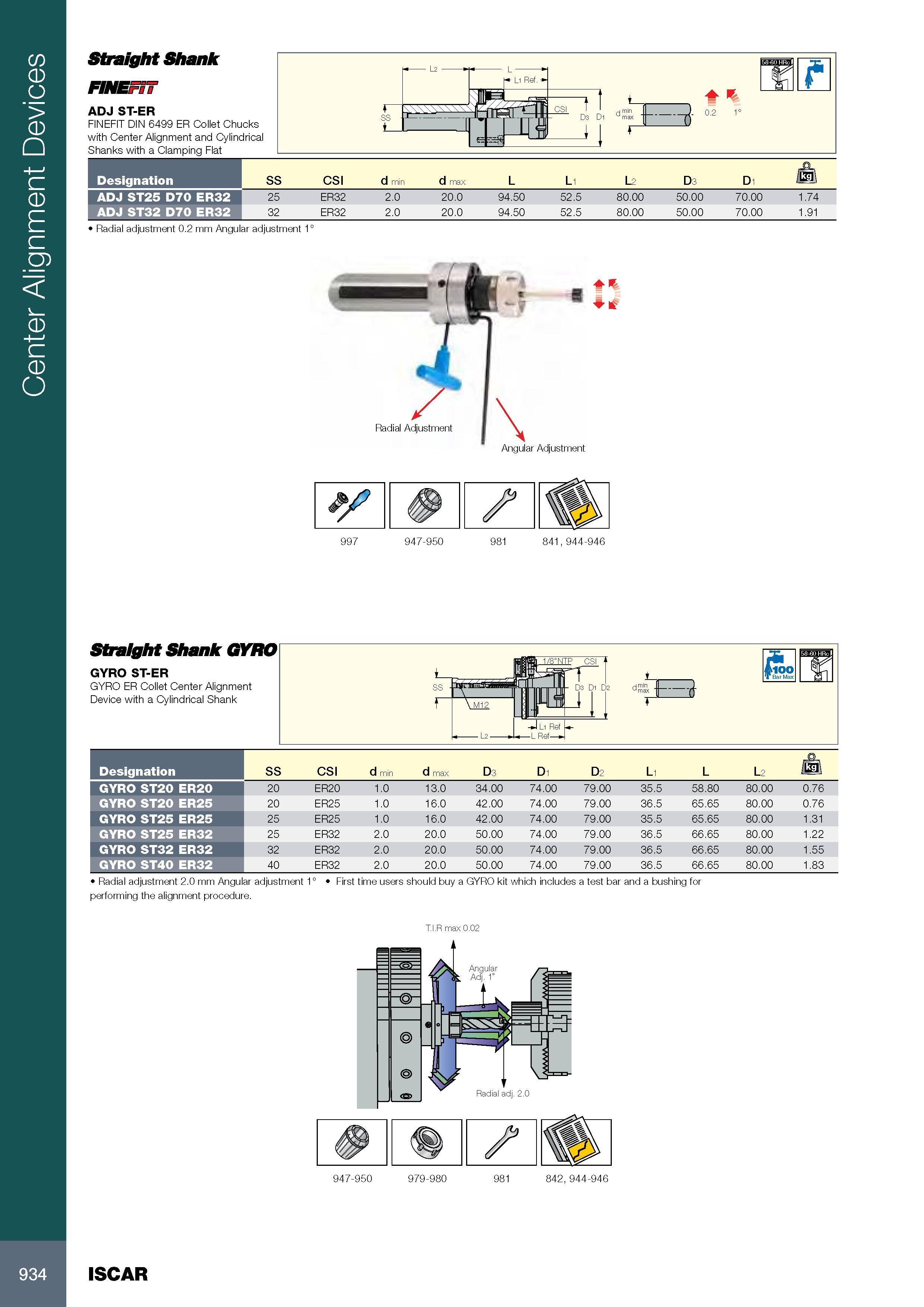

Center Alignment Devices Straight Shank FINEFST ADJ ST-ER FINEFIT DIN 6499 ER Collet Chucks with Center Alignment and Cylindrical Shanks with a Clamping Flat 4 L L1 Ref. f CSI t i SS + I rS -L fi - D3 D L-U Обозначение Designation SS CSI d min d max L L1 L2 D3 D1 o /kp ADJ ST25 D70 ER32 25 ER32 2.0 20.0 94.50 52.5 80.00 50.00 70.00 1.74 ADJ ST32 D70 ER32 32 ER32 2.0 20.0 94.50 52.5 80.00 50.00 70.00 1.91 Radial adjustment 0.2 mm Angular adjustment 1° d ft it Radial Adjustment Angular Adjustment Straight Shank GYRO GYRO ST-ER GYRO ER Collet Center Alignment Device with a Cylindrical Shank Обозначение Designation SS CSI d min d max D3 D1 D2 L1 L L2 o> ftp GYRO ST20 ER20 20 ER20 1.0 13.0 34.00 74.00 79.00 35.5 58.80 80.00 0.76 GYRO ST20 ER25 20 ER25 1.0 16.0 42.00 74.00 79.00 36.5 65.65 80.00 0.76 GYRO ST25 ER25 25 ER25 1.0 16.0 42.00 74.00 79.00 35.5 65.65 80.00 1.31 GYRO ST25 ER32 25 ER32 2.0 20.0 50.00 74.00 79.00 36.5 66.65 80.00 1.22 GYRO ST32 ER32 32 ER32 2.0 20.0 50.00 74.00 79.00 36.5 66.65 80.00 1.55 GYRO ST40 ER32 40 ER32 2.0 20.0 50.00 74.00 79.00 36.5 66.65 80.00 1.83 Radial adjustment 2.0 mm Angular adjustment 1° First time users should buy a GYRO kit which includes a test bar and a bushing for performing the alignment procedure. T.I.R max 0.02 934 ISCAR
