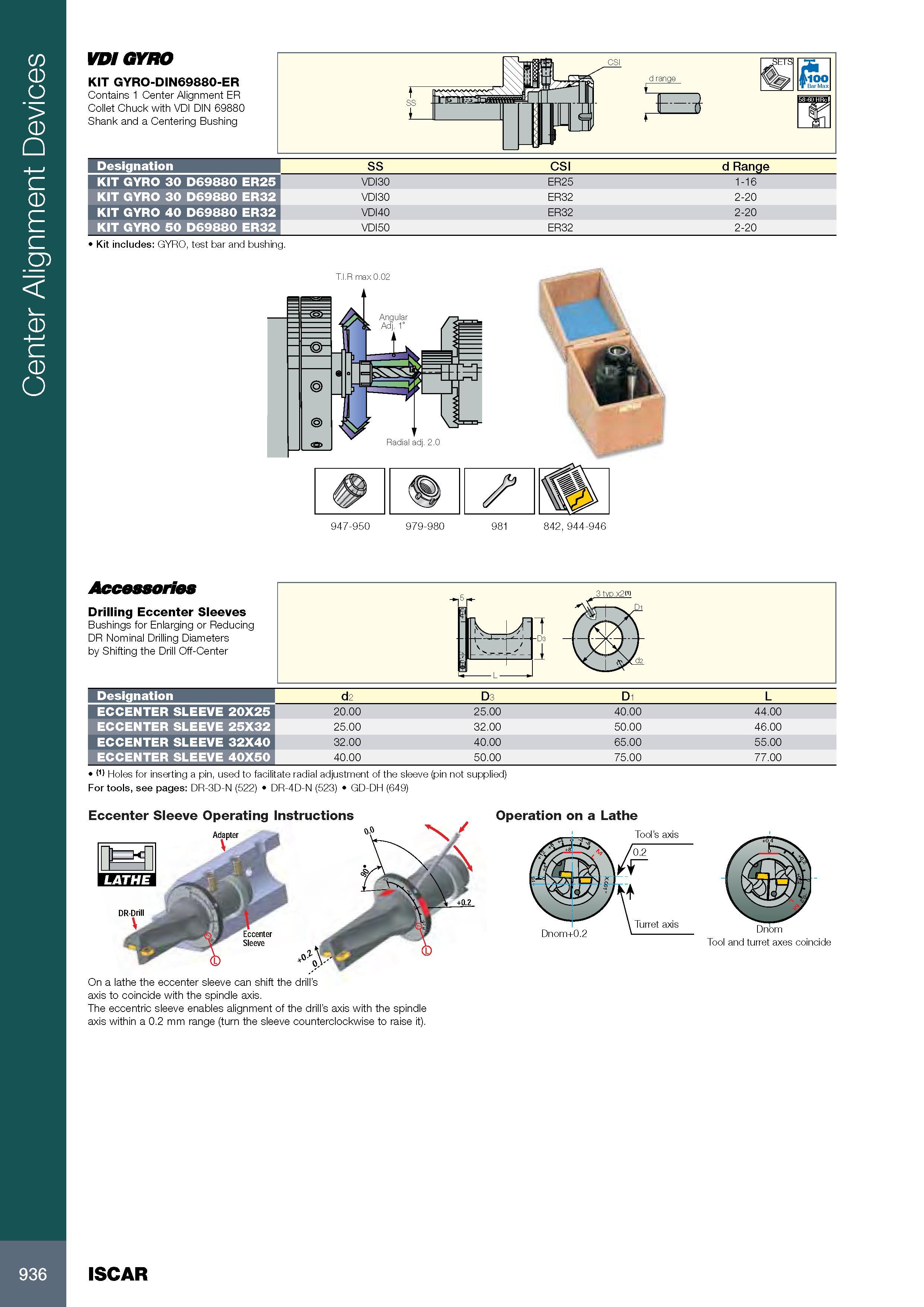

Center Alignment Devices VDI GYRO KIT GYRO-DIN69880-ER Contains 1 Center Alignment ER Collet Chuck with VDI DIN 69880 Shank and a Centering Bushing d range \ SS i - rJh r SETS ( oo T Bar Max n Обозначение Designation SS CSI d Range KIT GYRO 30 D69880 ER25 VDI30 ER25 1-16 KIT GYRO 30 D69880 ER32 VDI30 ER32 2-20 KIT GYRO 40 D69880 ER32 VDI40 ER32 2-20 KIT GYRO 50 D69880 ER32 VDI50 ER32 2-20 Kit includes: GYRO, test bar and bushing. T.I.R max 0.02 947-950 979-980 981 842, 944-946 Accessories Drilling Eccenter Sleeves Bushings for Enlarging or Reducing DR Nominal Drilling Diameters by Shifting the Drill Off-Center 3 tvp.x2H) Обозначение Designation d2 D3 D1 L ECCENTER SLEEVE 20X25 20.00 25.00 40.00 44.00 ECCENTER SLEEVE 25X32 25.00 32.00 50.00 46.00 ECCENTER SLEEVE 32X40 32.00 40.00 65.00 55.00 ECCENTER SLEEVE 40X50 40.00 50.00 75.00 77.00 (1) Holes for inserting a pin, used to facilitate radial adjustment of the sleeve (pin not supplied) For tools, see pages: DR-3D-N (522) DR-4D-N (523) GD-DH (649) Eccenter Sleeve Operating Instructions Operation on a Lathe On a lathe the eccenter sleeve can shift the drill’s axis to coincide with the spindle axis. The eccentric sleeve enables alignment of the drill’s axis with the spindle axis within a 0.2 mm range (turn the sleeve counterclockwise to raise it). Dnom Tool and turret axes coincide CSI 936 ISCAR
