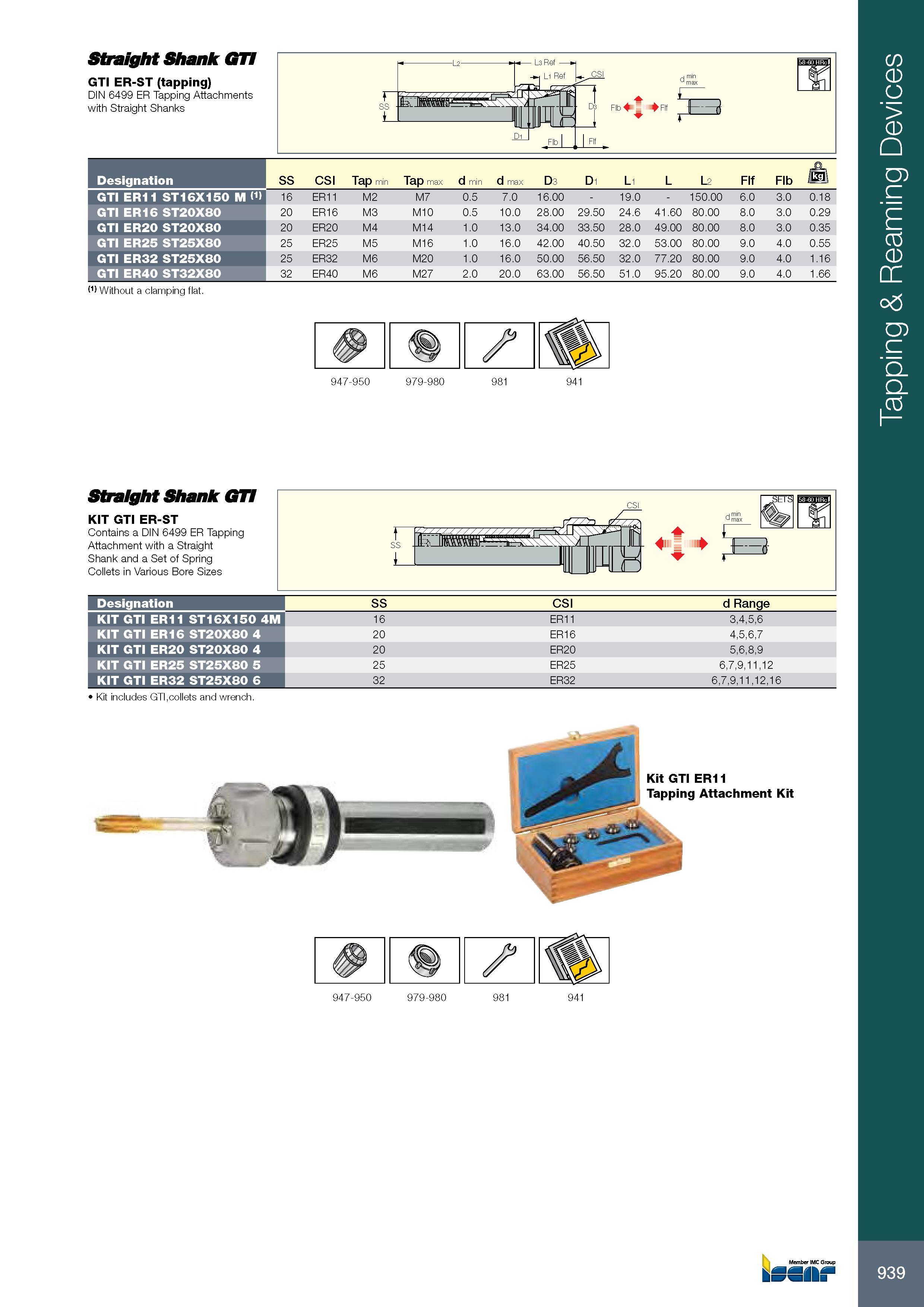

Straight Shank GTI GTI ER-ST (tapping) DIN 6499 ER Tapping Attachments with Straight Shanks Обозначение Designation SS CSI Tap min Tap max d min d max D3 D1 L1 L L2 Flf Flb O /kp GTI ER11 ST16X150 M (1) 16 ER11 M2 M7 0.5 7.0 16.00 - 19.0 - 150.00 6.0 3.0 0.18 GTI ER16 ST20X80 20 ER16 M3 M10 0.5 10.0 28.00 29.50 24.6 41.60 80.00 8.0 3.0 0.29 GTI ER20 ST20X80 20 ER20 M4 M14 1.0 13.0 34.00 33.50 28.0 49.00 80.00 8.0 3.0 0.35 GTI ER25 ST25X80 25 ER25 M5 M16 1.0 16.0 42.00 40.50 32.0 53.00 80.00 9.0 4.0 0.55 GTI ER32 ST25X80 25 ER32 M6 M20 1.0 16.0 50.00 56.50 32.0 77.20 80.00 9.0 4.0 1.16 GTI ER40 ST32X80 32 ER40 M6 M27 2.0 20.0 63.00 56.50 51.0 95.20 80.00 9.0 4.0 1.66 (1) Without a clamping flat. 947-950 979-980 981 941 Straight Shank GTI KIT GTI ER-ST Contains a DIN 6499 ER Tapping Attachment with a Straight Shank and a Set of Spring Collets in Various Bore Sizes jSetS Обозначение Designation SS CSI d Range KIT GTI ER11 ST16X150 4M 16 ER11 3,4,5,6 KIT GTI ER16 ST20X80 4 20 ER16 4,5,6,7 KIT GTI ER20 ST20X80 4 20 ER20 5,6,8,9 KIT GTI ER25 ST25X80 5 25 ER25 6,7,9,11,12 KIT GTI ER32 ST25X80 6 32 ER32 6,7,9,11,12,16 Kit includes GTI,collets and wrench. CSI d Tapping & Reaming Devices
