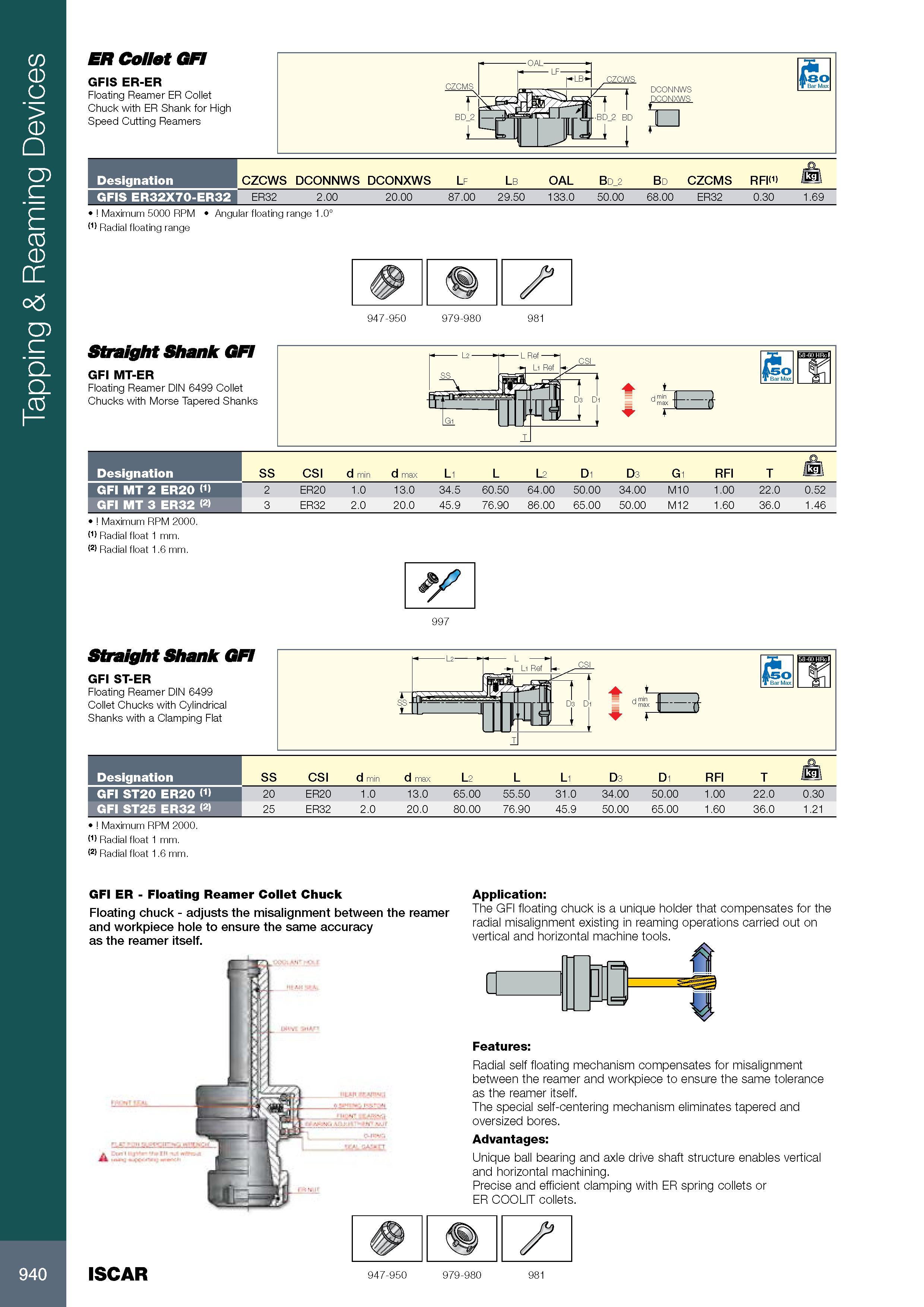

Tapping & Reaming Devices ER Collet GFI GFIS ER-ER Floating Reamer ER Collet Chuck with ER Shank for High Speed Cutting Reamers CZCMS r BD 2 1 DCONNWS DCONXWS fNT Обозначение Designation CZCWS DCONNWS DCONXWS Lf Lb OAL Bd 2 Bd CZCMS RFl<1> jOl GFIS ER32X70-ER32 ER32 2.00 20.00 87.00 29.50 133.0 50.00 68.00 ER32 0.30 1.69 Maximum 5000 RPM Angular floating range 1.0° (1) Radial floating range 947-950 979-980 981 Straight Shank GFI GFI MT-ER Floating Reamer DIN 6499 Collet Chucks with Morse Tapered Shanks - L Ref i Li Ref n rt D3 Di iJ EE3 CSI SS d T Обозначение Designation SS CSI d min d max L1 L L2 D1 D3 G1 RFl T /kj\ GFI MT 2 ER20 <1> 2 ER20 1.0 13.0 34.5 60.50 64.00 50.00 34.00 M10 1.00 22.0 0.52 GFI MT 3 ER32 <2) 3 ER32 2.0 20.0 45.9 76.90 86.00 65.00 50.00 M12 1.60 36.0 1.46 Maximum RPM 2000. (1) Radial float 1 mm. (2) Radial float 1.6 mm. 997 Straight Shank GFI GFI ST-ER Floating Reamer DIN 6499 Collet Chucks with Cylindrical Shanks with a Clamping Flat Обозначение Designation SS CSI d min d max L2 L L1 D3 D1 RFl T / k \ GFI ST20 ER20 t1) 20 ER20 1.0 13.0 65.00 55.50 31.0 34.00 50.00 1.00 22.0 0.30 GFI ST25 ER32 <2) 25 ER32 2.0 20.0 80.00 76.90 45.9 50.00 65.00 1.60 36.0 1.21 Maximum RPM 2000. (1) Radial float 1 mm. (2) Radial float 1.6 mm. GFI ER - Floating Reamer Collet Chuck Floating chuck - adjusts the misalignment between the reamer and workpiece hole to ensure the same accuracy as the reamer itself. Application: The GFI floating chuck is a unique holder that compensates for the radial misalignment existing in reaming operations carried out on vertical and horizontal machine tools. Features: Radial self floating mechanism compensates for misalignment between the reamer and workpiece to ensure the same tolerance as the reamer itself. The special self-centering mechanism eliminates tapered and oversized bores. Advantages: Unique ball bearing and axle drive shaft structure enables vertical and horizontal machining. Precise and efficient clamping with ER spring collets or ER COOLIT collets. 940 ISCAR 947-950 979-980 981
