946 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.942

Каталог ISCAR 2017 Ротационный инструмент Стр. 942 0946 ENG Lab2u

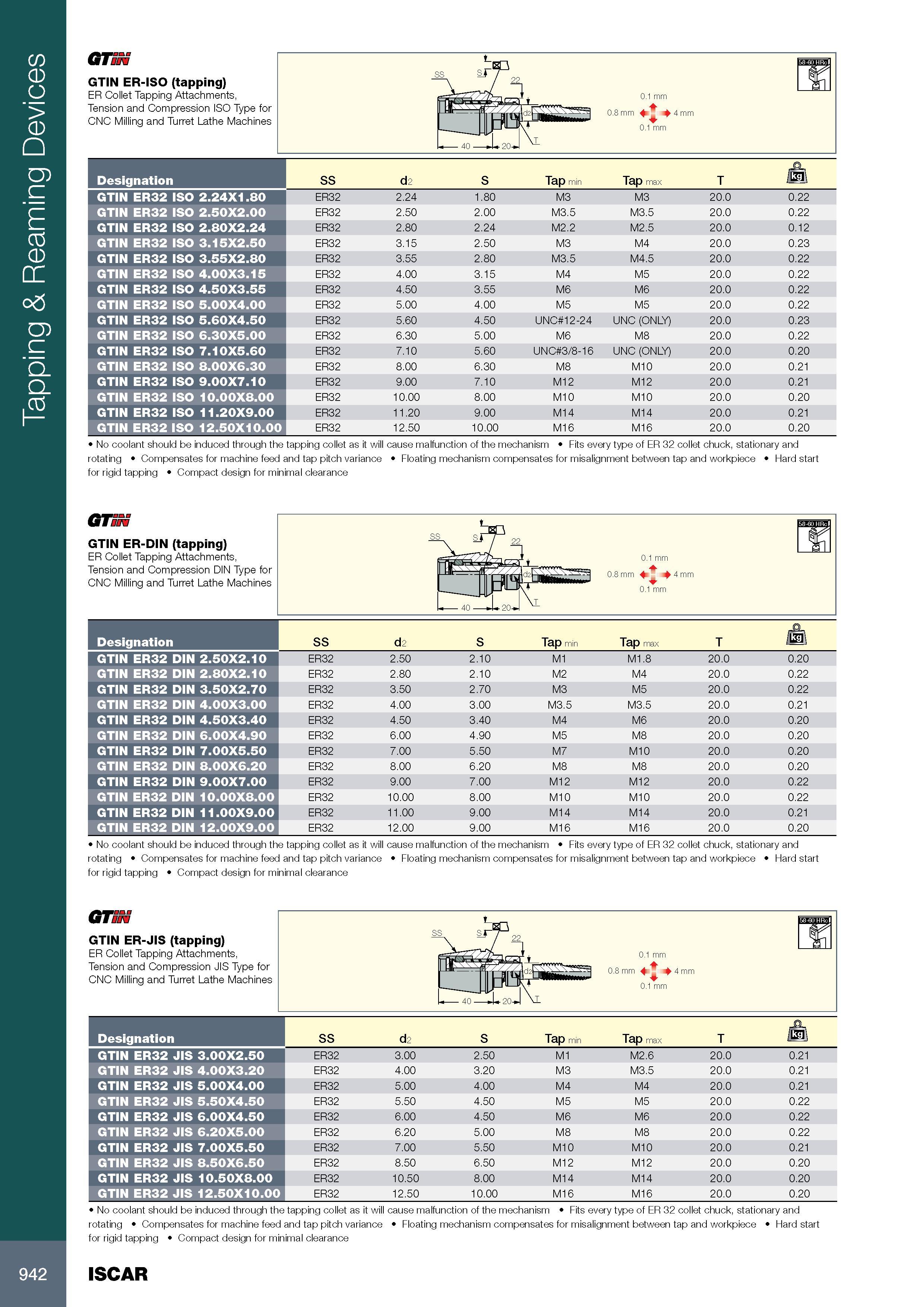

Tapping & Reaming Devices gt;n GTIN ER-ISO (tapping) ER Collet Tapping Attachments, Tension and Compression ISO Type for CNC Milling and Turret Lathe Machines Обозначение Designation SS d2 S Tap min Tap max T A GTIN ER32 ISO 2.24X1.80 ER32 2.24 1.80 M3 M3 20.0 0.22 GTIN ER32 ISO 2.50X2.00 ER32 2.50 2.00 M3.5 M3.5 20.0 0.22 GTIN ER32 ISO 2.80X2.24 ER32 2.80 2.24 M2.2 M2.5 20.0 0.12 GTIN ER32 ISO 3.15X2.50 ER32 3.15 2.50 M3 M4 20.0 0.23 GTIN ER32 ISO 3.55X2.80 ER32 3.55 2.80 M3.5 M4.5 20.0 0.22 GTIN ER32 ISO 4.00X3.15 ER32 4.00 3.15 M4 M5 20.0 0.22 GTIN ER32 ISO 4.50X3.55 ER32 4.50 3.55 M6 M6 20.0 0.22 GTIN ER32 ISO 5.00X4.00 ER32 5.00 4.00 M5 M5 20.0 0.22 GTIN ER32 ISO 5.60X4.50 ER32 5.60 4.50 UNC 12-24 UNC (ONLY) 20.0 0.23 GTIN ER32 ISO 6.30X5.00 ER32 6.30 5.00 M6 M8 20.0 0.22 GTIN ER32 ISO 7.10X5.60 ER32 7.10 5.60 UNC 3/8-16 UNC (ONLY) 20.0 0.20 GTIN ER32 ISO 8.00X6.30 ER32 8.00 6.30 M8 M10 20.0 0.21 GTIN ER32 ISO 9.00X7.10 ER32 9.00 7.10 M12 M12 20.0 0.21 GTIN ER32 ISO 10.00X8.00 ER32 10.00 8.00 M10 M10 20.0 0.20 GTIN ER32 ISO 11.20X9.00 ER32 11.20 9.00 M14 M14 20.0 0.21 GTIN ER32 ISO 12.50X10.00 ER32 12.50 10.00 M16 M16 20.0 0.20 No coolant should be induced through the tapping collet as it will cause malfunction of the mechanism Fits every type of ER 32 collet chuck, stationary and rotating Compensates for machine feed and tap pitch variance Floating mechanism compensates for misalignment between tap and workpiece Hard start for rigid tapping Compact design for minimal clearance GTiN GTIN ER-DIN (tapping) u ER Collet Tapping Attachments, Tension and Compression DIN Type for I j- rvyvyr’fi, ,nry,nl. 0.1 mm A 0.8 mm 4 4 mm -0.1 mm CNC Milling and Turret Lathe Machines PS J 2oJ PaiiHnii „,7l X - 40 V Обозначение Designation SS d2 S Tap min Tap max T /kp GTIN ER32 DIN 2.50X2.10 ER32 2.50 2.10 M1 M1.8 20.0 0.20 GTIN ER32 DIN 2.80X2.10 ER32 2.80 2.10 M2 M4 20.0 0.22 GTIN ER32 DIN 3.50X2.70 ER32 3.50 2.70 M3 M5 20.0 0.22 GTIN ER32 DIN 4.00X3.00 ER32 4.00 3.00 M3.5 M3.5 20.0 0.21 GTIN ER32 DIN 4.50X3.40 ER32 4.50 3.40 M4 M6 20.0 0.20 GTIN ER32 DIN 6.00X4.90 ER32 6.00 4.90 M5 M8 20.0 0.20 GTIN ER32 DIN 7.00X5.50 ER32 7.00 5.50 M7 M10 20.0 0.20 GTIN ER32 DIN 8.00X6.20 ER32 8.00 6.20 M8 M8 20.0 0.20 GTIN ER32 DIN 9.00X7.00 ER32 9.00 7.00 M12 M12 20.0 0.22 GTIN ER32 DIN 10.00X8.00 ER32 10.00 8.00 M10 M10 20.0 0.22 GTIN ER32 DIN 11.00X9.00 ER32 11.00 9.00 M14 M14 20.0 0.21 GTIN ER32 DIN 12.00X9.00 ER32 12.00 9.00 M16 M16 20.0 0.20 No coolant should be induced through the tapping collet as it will cause malfunction of the mechanism Fits every type of ER 32 collet chuck, stationary and rotating Compensates for machine feed and tap pitch variance Floating mechanism compensates for misalignment between tap and workpiece Hard start for rigid tapping Compact design for minimal clearance SS 22 GTiN GTIN ER-JIS (tapping) ER Collet Tapping Attachments, Tension and Compression JIS Type for CNC Milling and Turret Lathe Machines Обозначение Designation SS d2 S Tap min Tap max T /kp GTIN ER32 JIS 3.00X2.50 ER32 3.00 2.50 M1 M2.6 20.0 0.21 GTIN ER32 JIS 4.00X3.20 ER32 4.00 3.20 M3 M3.5 20.0 0.21 GTIN ER32 JIS 5.00X4.00 ER32 5.00 4.00 M4 M4 20.0 0.21 GTIN ER32 JIS 5.50X4.50 ER32 5.50 4.50 M5 M5 20.0 0.22 GTIN ER32 JIS 6.00X4.50 ER32 6.00 4.50 M6 M6 20.0 0.22 GTIN ER32 JIS 6.20X5.00 ER32 6.20 5.00 M8 M8 20.0 0.22 GTIN ER32 JIS 7.00X5.50 ER32 7.00 5.50 M10 M10 20.0 0.21 GTIN ER32 JIS 8.50X6.50 ER32 8.50 6.50 M12 M12 20.0 0.20 GTIN ER32 JIS 10.50X8.00 ER32 10.50 8.00 M14 M14 20.0 0.20 GTIN ER32 JIS 12.50X10.00 ER32 12.50 10.00 M16 M16 20.0 0.20 No coolant should be induced through the tapping collet as it will cause malfunction of the mechanism Fits every type of ER 32 collet chuck, stationary and rotating Compensates for machine feed and tap pitch variance Floating mechanism compensates for misalignment between tap and workpiece Hard start for rigid tapping Compact design for minimal clearance 942 ISCAR
