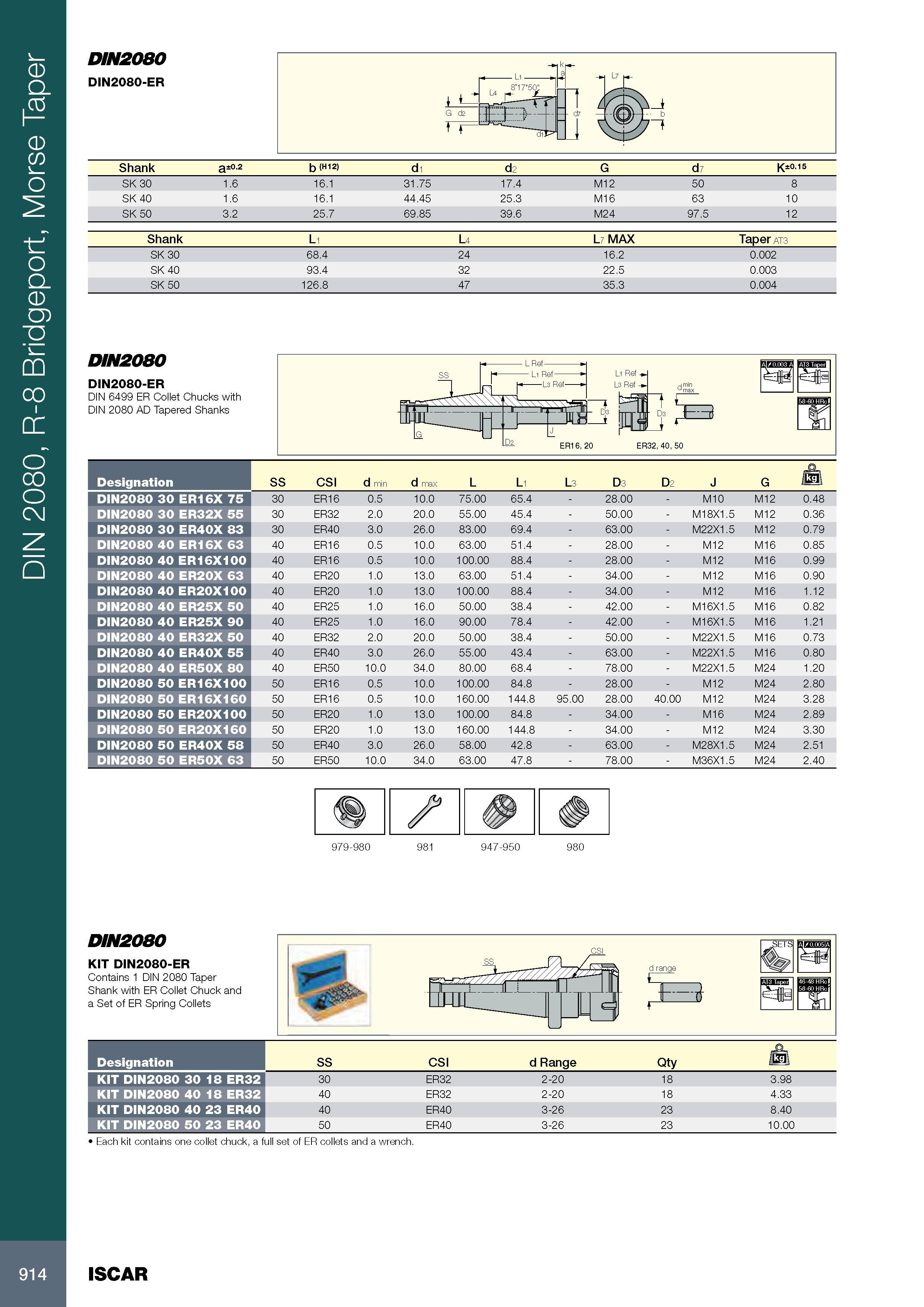

918 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.914

Каталог ISCAR 2017 Ротационный инструмент Стр. 914 0918 ENG Lab2u

DIN 2080, R-8 Bridgeport, Morse Taper DIN2080 DIN2080-ER Shank a±02 b (H12) d1 d2 G d7 K±015 SK 30 1.6 16.1 31.75 17.4 M12 50 8 SK 40 1.6 16.1 44.45 25.3 M16 63 10 SK 50 3.2 25.7 69.85 39.6 M24 97.5 12 Shank L1 L4 L7 max Taper at3 SK 30 68.4 24 16.2 0.002 SK 40 93.4 32 22.5 0.003 SK 50 126.8 47 35.3 0.004 DIN2080 DIN2080-ER DIN 6499 ER Collet Chucks with DIN 2080 AD Tapered Shanks Обозначение Designation SS CSI d min d max L L1 L3 D3 D2 J G DIN2080 30 ER16X 75 30 ER16 0.5 10.0 75.00 65.4 - 28.00 - M10 M12 0.48 DIN2080 30 ER32X 55 30 ER32 2.0 20.0 55.00 45.4 - 50.00 - M18X1.5 M12 0.36 DIN2080 30 ER40X 83 30 ER40 3.0 26.0 83.00 69.4 - 63.00 - M22X1.5 M12 0.79 DIN2080 40 ER16X 63 40 ER16 0.5 10.0 63.00 51.4 - 28.00 - M12 M16 0.85 DIN2080 40 ER16X100 40 ER16 0.5 10.0 100.00 88.4 - 28.00 - M12 M16 0.99 DIN2080 40 ER20X 63 40 ER20 1.0 13.0 63.00 51.4 - 34.00 - M12 M16 0.90 DIN2080 40 ER20X100 40 ER20 1.0 13.0 100.00 88.4 - 34.00 - M12 M16 1.12 DIN2080 40 ER25X 50 40 ER25 1.0 16.0 50.00 38.4 - 42.00 - M16X1.5 M16 0.82 DIN2080 40 ER25X 90 40 ER25 1.0 16.0 90.00 78.4 - 42.00 - M16X1.5 M16 1.21 DIN2080 40 ER32X 50 40 ER32 2.0 20.0 50.00 38.4 - 50.00 - M22X1.5 M16 0.73 DIN2080 40 ER40X 55 40 ER40 3.0 26.0 55.00 43.4 - 63.00 - M22X1.5 M16 0.80 DIN2080 40 ER50X 80 40 ER50 10.0 34.0 80.00 68.4 - 78.00 - M22X1.5 M24 1.20 DIN2080 50 ER16X100 50 ER16 0.5 10.0 100.00 84.8 - 28.00 - M12 M24 2.80 DIN2080 50 ER16X160 50 ER16 0.5 10.0 160.00 144.8 95.00 28.00 40.00 M12 M24 3.28 DIN2080 50 ER20X100 50 ER20 1.0 13.0 100.00 84.8 - 34.00 - M16 M24 2.89 DIN2080 50 ER20X160 50 ER20 1.0 13.0 160.00 144.8 - 34.00 - M12 M24 3.30 DIN2080 50 ER40X 58 50 ER40 3.0 26.0 58.00 42.8 - 63.00 - M28X1.5 M24 2.51 DIN2080 50 ER50X 63 50 ER50 10.0 34.0 63.00 47.8 - 78.00 - M36X1.5 M24 2.40 979-980 981 947-950 980 DIN2080 KIT DIN2080-ER Contains 1 DIN 2080 Taper Shank with ER Collet Chuck and a Set of ER Spring Collets d range Обозначение Designation SS CSI d Range jPl Qty KIT DIN2080 30 18 ER32 30 ER32 2-20 18 3.98 KIT DIN2080 40 18 ER32 40 ER32 2-20 18 4.33 KIT DIN2080 40 23 ER40 40 ER40 3-26 23 8.40 KIT DIN2080 50 23 ER40 50 ER40 3-26 23 10.00 Each kit contains one collet chuck, a full set of ER collets and a wrench. sets CSI 914 ISCAR
