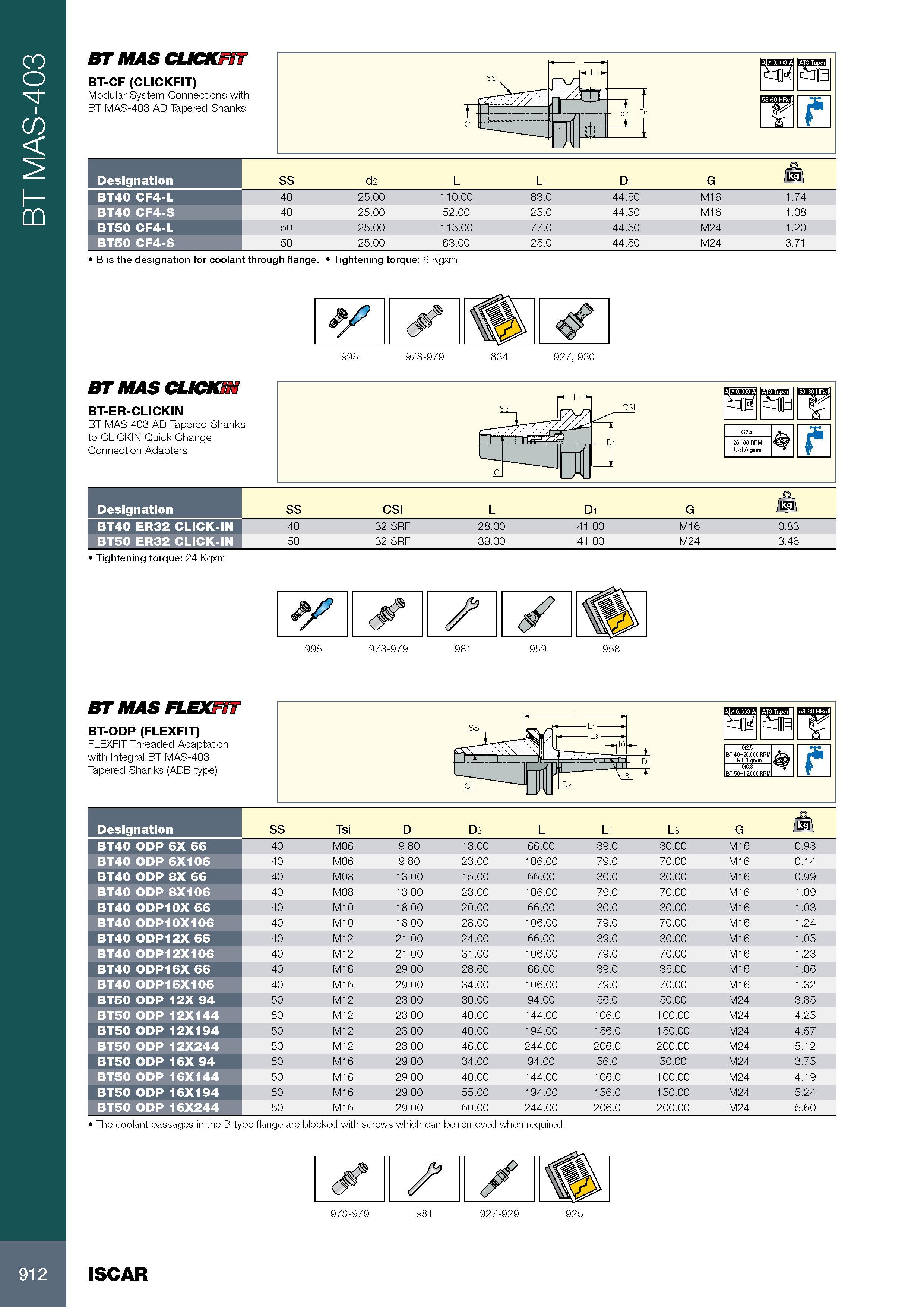

916 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.912

Каталог ISCAR 2017 Ротационный инструмент Стр. 912 0916 ENG Lab2u

BT MAS-403 BT MAS CLICKFIT BT-CF (CLICKFIT) Modular System Connections with BT MAS-403 AD Tapered Shanks SS <- h-Li- T f n o G U J-IUrH 1 f Обозначение Designation BT40 CF4-L BT40 CF4-S BT50 CF4-L BT50 CF4-S SS d2 L L1 D1 G / kgi\ 40 25.00 110.00 83.0 44.50 M16 1.74 40 25.00 52.00 25.0 44.50 M16 1.08 50 25.00 115.00 77.0 44.50 M24 1.20 50 25.00 63.00 25.0 44.50 M24 3.71 B is the designation for coolant through flange. Tightening torque: 6 Kgxm BT MAS CUCKSN BT-ER-CLICKIN BT MAS 403 AD Tapered Shanks to CLICKIN Quick Change Connection Adapters G2.5 >0,000 RPM U<1.0 gmm Обозначение Designation BT40 ER32 CLICK-IN BT50 ER32 CLICK-IN SS CSI D1 40 50 32 SRF 32 SRF 28.00 39.00 41.00 41.00 M16 M24 0.83 3.46 Tightening torque: 24 Kgxm L G BT MAS FLEXFIT BT-ODP (FLEXFIT) FLEXFIT Threaded Adaptation with Integral BT MAS-403 Tapered Shanks (ADB type) SS S'V L tT Li 'T ii0 t G s D2 Di si BT 40=20,000RPM G2.5 Обозначение Designation SS Tsi D1 D2 L L1 L3 G /kffl BT40 ODP 6X 66 40 M06 9.80 13.00 66.00 39.0 30.00 M16 0.98 BT40 ODP 6X106 40 M06 9.80 23.00 106.00 79.0 70.00 M16 0.14 BT40 ODP 8X 66 40 M08 13.00 15.00 66.00 30.0 30.00 M16 0.99 BT40 ODP 8X106 40 M08 13.00 23.00 106.00 79.0 70.00 M16 1.09 BT40 ODP10X 66 40 M10 18.00 20.00 66.00 30.0 30.00 M16 1.03 BT40 ODP10X106 40 M10 18.00 28.00 106.00 79.0 70.00 M16 1.24 BT40 ODP12X 66 40 M12 21.00 24.00 66.00 39.0 30.00 M16 1.05 BT40 ODP12X106 40 M12 21.00 31.00 106.00 79.0 70.00 M16 1.23 BT40 ODP16X 66 40 M16 29.00 28.60 66.00 39.0 35.00 M16 1.06 BT40 ODP16X106 40 M16 29.00 34.00 106.00 79.0 70.00 M16 1.32 BT50 ODP 12X 94 50 M12 23.00 30.00 94.00 56.0 50.00 M24 3.85 BT50 ODP 12X144 50 M12 23.00 40.00 144.00 106.0 100.00 M24 4.25 BT50 ODP 12X194 50 M12 23.00 40.00 194.00 156.0 150.00 M24 4.57 BT50 ODP 12X244 50 M12 23.00 46.00 244.00 206.0 200.00 M24 5.12 BT50 ODP 16X 94 50 M16 29.00 34.00 94.00 56.0 50.00 M24 3.75 BT50 ODP 16X144 50 M16 29.00 40.00 144.00 106.0 100.00 M24 4.19 BT50 ODP 16X194 50 M16 29.00 55.00 194.00 156.0 150.00 M24 5.24 BT50 ODP 16X244 50 M16 29.00 60.00 244.00 206.0 200.00 M24 5.60 The coolant passages in the B-type flange are blocked with screws which can be removed when required. 912 ISCAR
