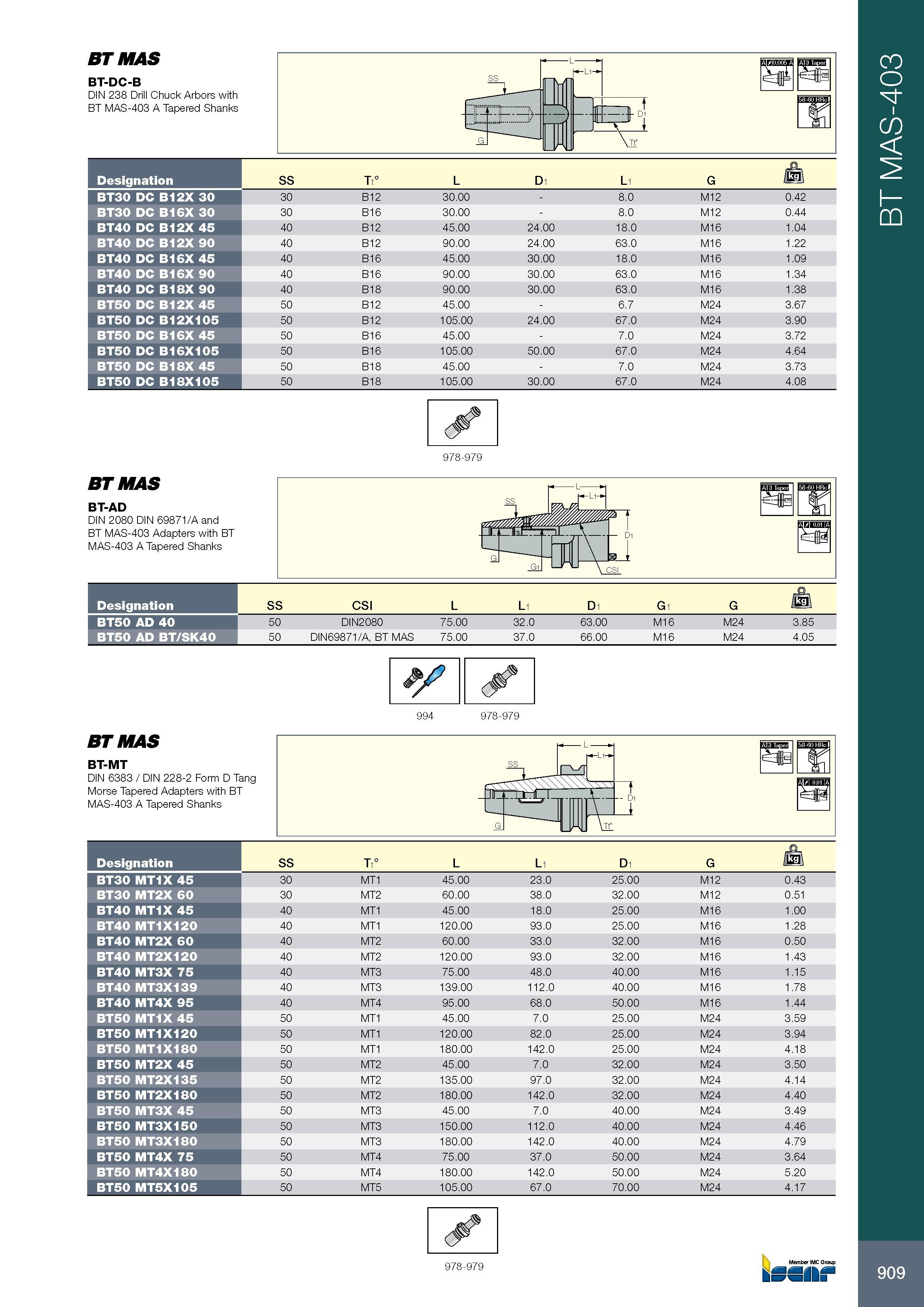

913 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.909

Каталог ISCAR 2017 Ротационный инструмент Стр. 909 0913 ENG Lab2u

BT MAS BT-DC-B DIN 238 Drill Chuck Arbors with BT MAS-403 A Tapered Shanks Обозначение Designation SS Tt° L D1 L1 G o BT30 DC B12X 30 30 B12 30.00 - 8.0 M12 0.42 BT30 DC B16X 30 30 B16 30.00 - 8.0 M12 0.44 BT40 DC B12X 45 40 B12 45.00 24.00 18.0 M16 1.04 BT40 DC B12X 90 40 B12 90.00 24.00 63.0 M16 1.22 BT40 DC B16X 45 40 B16 45.00 30.00 18.0 M16 1.09 BT40 DC B16X 90 40 B16 90.00 30.00 63.0 M16 1.34 BT40 DC B18X 90 40 B18 90.00 30.00 63.0 M16 1.38 BT50 DC B12X 45 50 B12 45.00 - 6.7 M24 3.67 BT50 DC B12X105 50 B12 105.00 24.00 67.0 M24 3.90 BT50 DC B16X 45 50 B16 45.00 - 7.0 M24 3.72 BT50 DC B16X105 50 B16 105.00 50.00 67.0 M24 4.64 BT50 DC B18X 45 50 B18 45.00 - 7.0 M24 3.73 BT50 DC B18X105 50 B18 105.00 30.00 67.0 M24 4.08 978-979 BTMAS BT-AD DIN 2080 DIN 69871/A and BT MAS-403 Adapters with BT MAS-403 A Tapered Shanks Обозначение Designation SS CSI L L1 D1 G1 G mm BT50 AD 40 50 DIN2080 75.00 32.0 63.00 M16 M24 3.85 BT50 AD BT/SK40 50 DIN69871/A, BT MAS 75.00 37.0 66.00 M16 M24 4.05 994 978-979 BTMAS BT-MT DIN 6383 / DIN 228-2 Form D Tang Morse Tapered Adapters with BT MAS-403 A Tapered Shanks Обозначение Designation SS Tt° L L1 D1 G BT30 MT1X 45 30 MT1 45.00 23.0 25.00 M12 0.43 BT30 MT2X 60 30 MT2 60.00 38.0 32.00 M12 0.51 BT40 MT1X 45 40 MT1 45.00 18.0 25.00 M16 1.00 BT40 MT1X120 40 MT1 120.00 93.0 25.00 M16 1.28 BT40 MT2X 60 40 MT2 60.00 33.0 32.00 M16 0.50 BT40 MT2X120 40 MT2 120.00 93.0 32.00 M16 1.43 BT40 MT3X 75 40 MT3 75.00 48.0 40.00 M16 1.15 BT40 MT3X139 40 MT3 139.00 112.0 40.00 M16 1.78 BT40 MT4X 95 40 MT4 95.00 68.0 50.00 M16 1.44 BT50 MT1X 45 50 MT1 45.00 7.0 25.00 M24 3.59 BT50 MT1X120 50 MT1 120.00 82.0 25.00 M24 3.94 BT50 MT1X180 50 MT1 180.00 142.0 25.00 M24 4.18 BT50 MT2X 45 50 MT2 45.00 7.0 32.00 M24 3.50 BT50 MT2X135 50 MT2 135.00 97.0 32.00 M24 4.14 BT50 MT2X180 50 MT2 180.00 142.0 32.00 M24 4.40 BT50 MT3X 45 50 MT3 45.00 7.0 40.00 M24 3.49 BT50 MT3X150 50 MT3 150.00 112.0 40.00 M24 4.46 BT50 MT3X180 50 MT3 180.00 142.0 40.00 M24 4.79 BT50 MT4X 75 50 MT4 75.00 37.0 50.00 M24 3.64 BT50 MT4X180 50 MT4 180.00 142.0 50.00 M24 5.20 BT50 MT5X105 50 MT5 105.00 67.0 70.00 M24 4.17 BT MAS-403
