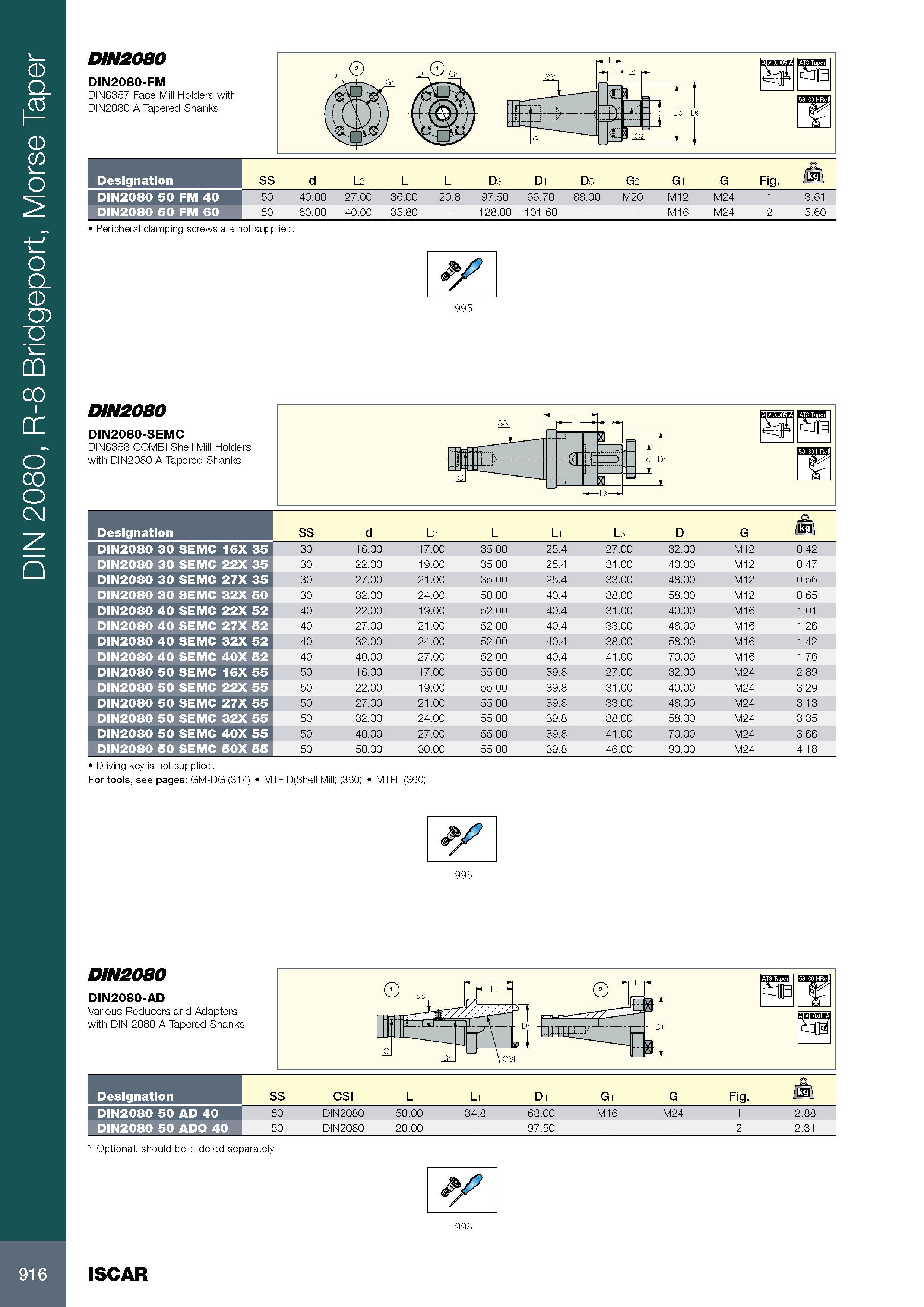

DIN 2080, R-8 Bridgeport, Morse Taper DIN2080 DIN2080-FM DIN6357 Face Mill Holders with DIN2080 A Tapered Shanks Обозначение Designation SS d L2 L L1 D3 D1 D5 G2 G1 G Fig. /kg\ DIN2080 50 FM 40 50 40.00 27.00 36.00 20.8 97.50 66.70 88.00 M20 M12 M24 1 3.61 DIN2080 50 FM 60 50 60.00 40.00 35.80 - 128.00 101.60 M16 M24 2 5.60 Peripheral clamping screws are not supplied. 995 DIN2080 DIN2080-SEMC DIN6358 COMBI Shell Mill Holders with DIN2080 A Tapered Shanks Обозначение Designation SS d L2 L L1 L3 D1 G /jk DIN2080 30 SEMC 16X 35 30 16.00 17.00 35.00 25.4 27.00 32.00 M12 0.42 DIN2080 30 SEMC 22X 35 30 22.00 19.00 35.00 25.4 31.00 40.00 M12 0.47 DIN2080 30 SEMC 27X 35 30 27.00 21.00 35.00 25.4 33.00 48.00 M12 0.56 DIN2080 30 SEMC 32X 50 30 32.00 24.00 50.00 40.4 38.00 58.00 M12 0.65 DIN2080 40 SEMC 22X 52 40 22.00 19.00 52.00 40.4 31.00 40.00 M16 1.01 DIN2080 40 SEMC 27X 52 40 27.00 21.00 52.00 40.4 33.00 48.00 M16 1.26 DIN2080 40 SEMC 32X 52 40 32.00 24.00 52.00 40.4 38.00 58.00 M16 1.42 DIN2080 40 SEMC 40X 52 40 40.00 27.00 52.00 40.4 41.00 70.00 M16 1.76 DIN2080 50 SEMC 16X 55 50 16.00 17.00 55.00 39.8 27.00 32.00 M24 2.89 DIN2080 50 SEMC 22X 55 50 22.00 19.00 55.00 39.8 31.00 40.00 M24 3.29 DIN2080 50 SEMC 27X 55 50 27.00 21.00 55.00 39.8 33.00 48.00 M24 3.13 DIN2080 50 SEMC 32X 55 50 32.00 24.00 55.00 39.8 38.00 58.00 M24 3.35 DIN2080 50 SEMC 40X 55 50 40.00 27.00 55.00 39.8 41.00 70.00 M24 3.66 DIN2080 50 SEMC 50X 55 50 50.00 30.00 55.00 39.8 46.00 90.00 M24 4.18 Driving key is not supplied. For tools, see pages: GM-DG (314) MTF D(Shell Mill) (360) MTFL (360) 995 DIN2080 DIN2080-AD Various Reducers and Adapters with DIN 2080 A Tapered Shanks Обозначение Designation DIN2080 50 AD 40 DIN2080 50 ADO 40 SS 50 50 Optional, should be ordered separately CSI DIN2080 DIN2080 L1 D1 G1 50.00 20.00 34.8 63.00 97.50 M16 M24 995 Fig. 2.88 2.31 L G 916 ISCAR
