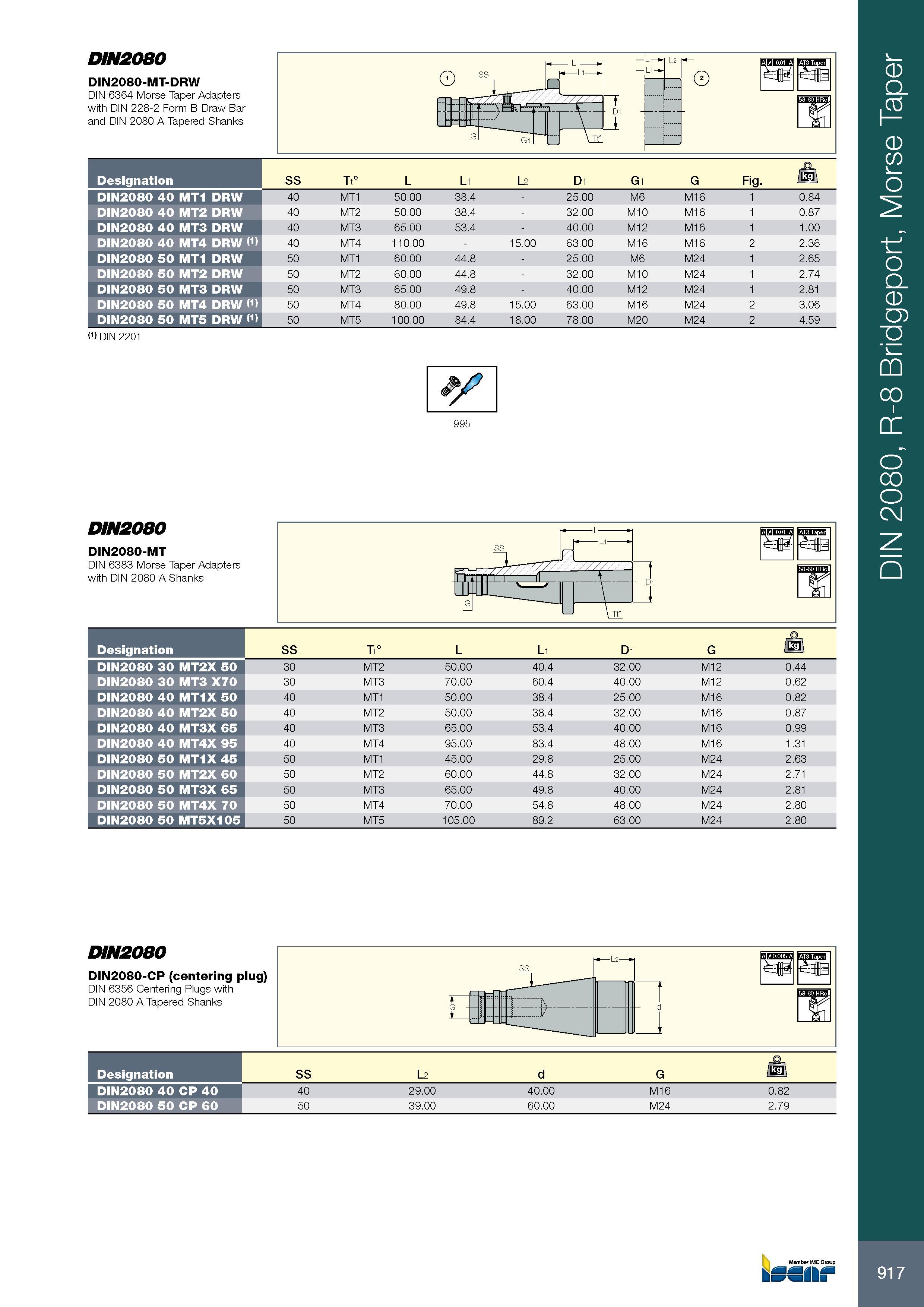

917 DIN2080 DIN2080-MT-DRW DIN 6364 Morse Taper Adapters with DIN 228-2 Form B Draw Bar and DIN 2080 A Tapered Shanks Обозначение Designation SS Tt° L L1 L2 D1 G1 G Fig. DIN2080 40 MT1 DRW 40 MT1 50.00 38.4 - 25.00 M6 M16 1 0.84 DIN2080 40 MT2 DRW 40 MT2 50.00 38.4 - 32.00 M10 M16 1 0.87 DIN2080 40 MT3 DRW 40 MT3 65.00 53.4 - 40.00 M12 M16 1 1.00 DIN2080 40 MT4 DRW (1) 40 MT4 110.00 - 15.00 63.00 M16 M16 2 2.36 DIN2080 50 MT1 DRW 50 MT1 60.00 44.8 - 25.00 M6 M24 1 2.65 DIN2080 50 MT2 DRW 50 MT2 60.00 44.8 - 32.00 M10 M24 1 2.74 DIN2080 50 MT3 DRW 50 MT3 65.00 49.8 - 40.00 M12 M24 1 2.81 DIN2080 50 MT4 DRW (1) 50 MT4 80.00 49.8 15.00 63.00 M16 M24 2 3.06 DIN2080 50 MT5 DRW (1) 50 MT5 100.00 84.4 18.00 78.00 M20 M24 2 4.59 (1) DIN 2201 995 DIN2080 DIN2080-MT DIN 6383 Morse Taper Adapters with DIN 2080 A Shanks Обозначение Designation SS Tt° L L1 D1 G DIN2080 30 MT2X 50 30 MT2 50.00 40.4 32.00 M12 0.44 DIN2080 30 MT3 X70 30 MT3 70.00 60.4 40.00 M12 0.62 DIN2080 40 MT1X 50 40 MT1 50.00 38.4 25.00 M16 0.82 DIN2080 40 MT2X 50 40 MT2 50.00 38.4 32.00 M16 0.87 DIN2080 40 MT3X 65 40 MT3 65.00 53.4 40.00 M16 0.99 DIN2080 40 MT4X 95 40 MT4 95.00 83.4 48.00 M16 1.31 DIN2080 50 MT1X 45 50 MT1 45.00 29.8 25.00 M24 2.63 DIN2080 50 MT2X 60 50 MT2 60.00 44.8 32.00 M24 2.71 DIN2080 50 MT3X 65 50 MT3 65.00 49.8 40.00 M24 2.81 DIN2080 50 MT4X 70 50 MT4 70.00 54.8 48.00 M24 2.80 DIN2080 50 MT5X105 50 MT5 105.00 89.2 63.00 M24 2.80 DIN2080 DIN2080-CP (centering plug) DIN 6356 Centering Plugs with DIN 2080 A Tapered Shanks SS L2 d G M 40 29.00 40.00 M16 0.82 50 39.00 60.00 M24 2.79 Обозначение Designation DIN2080 40 CP 40 DIN2080 50 CP 60 DIN 2080, R-8 Bridgeport, Morse Taper
