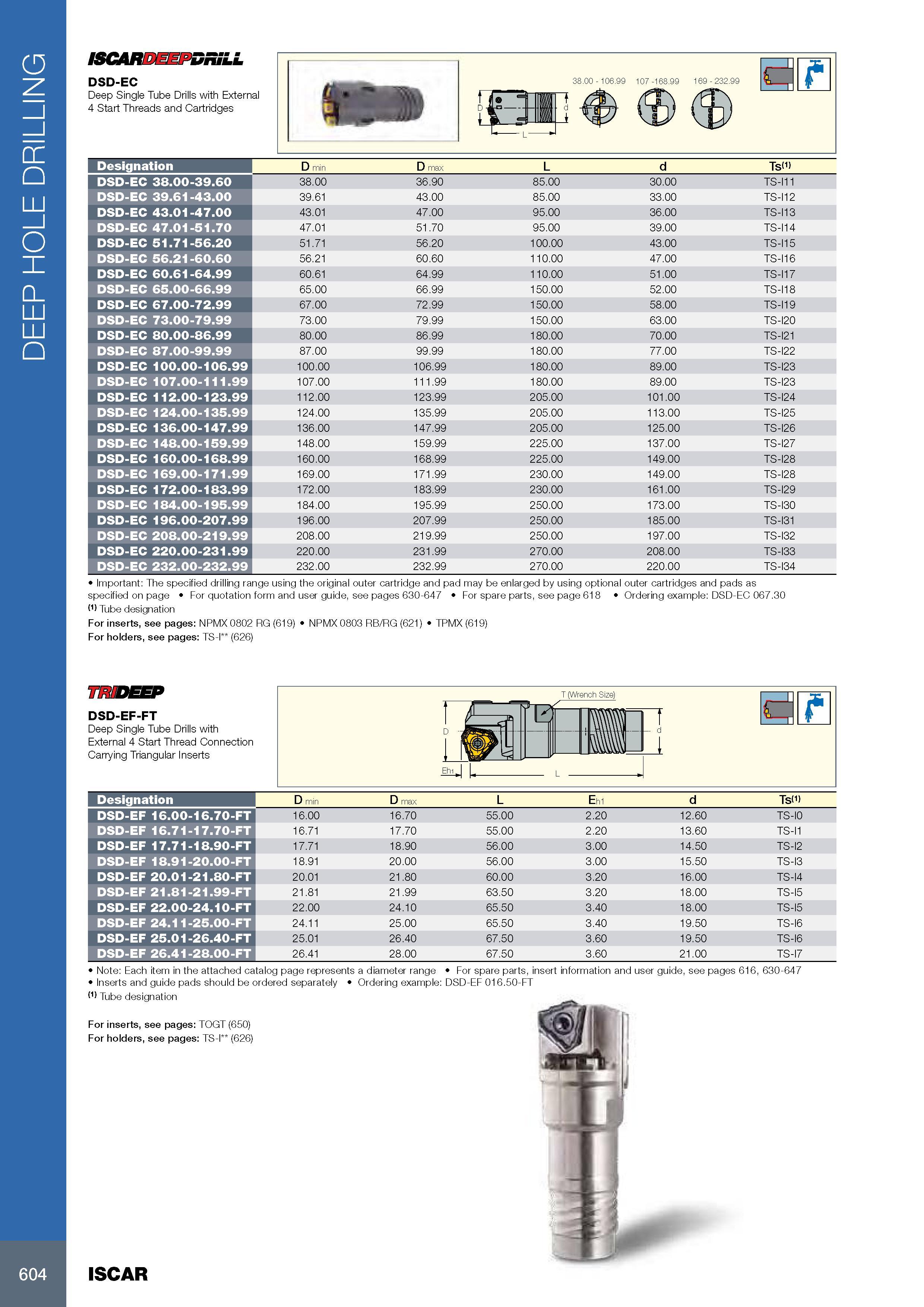

DEEP HOLE DRILLING ISCARDEEPDRiLL DSD-EC Deep Single Tube Drills with External 4 Start Threads and Cartridges 38.00 - 106.99 107 -168.99 169 - 232.99 Обозначение Designation D min D max L d Ts <1> DSD-EC 38.00-39.60 38.00 36.90 85.00 30.00 TS-I11 DSD-EC 39.61-43.00 39.61 43.00 85.00 33.00 TS-I12 DSD-EC 43.01-47.00 43.01 47.00 95.00 36.00 TS-I13 DSD-EC 47.01-51.70 47.01 51.70 95.00 39.00 TS-I14 DSD-EC 51.71-56.20 51.71 56.20 100.00 43.00 TS-I15 DSD-EC 56.21-60.60 56.21 60.60 110.00 47.00 TS-I16 DSD-EC 60.61-64.99 60.61 64.99 110.00 51.00 TS-I17 DSD-EC 65.00-66.99 65.00 66.99 150.00 52.00 TS-I18 DSD-EC 67.00-72.99 67.00 72.99 150.00 58.00 TS-I19 DSD-EC 73.00-79.99 73.00 79.99 150.00 63.00 TS-I20 DSD-EC 80.00-86.99 80.00 86.99 180.00 70.00 TS-I21 DSD-EC 87.00-99.99 87.00 99.99 180.00 77.00 TS-I22 DSD-EC 100.00-106.99 100.00 106.99 180.00 89.00 TS-I23 DSD-EC 107.00-111.99 107.00 111.99 180.00 89.00 TS-I23 DSD-EC 112.00-123.99 112.00 123.99 205.00 101.00 TS-I24 DSD-EC 124.00-135.99 124.00 135.99 205.00 113.00 TS-I25 DSD-EC 136.00-147.99 136.00 147.99 205.00 125.00 TS-I26 DSD-EC 148.00-159.99 148.00 159.99 225.00 137.00 TS-I27 DSD-EC 160.00-168.99 160.00 168.99 225.00 149.00 TS-I28 DSD-EC 169.00-171.99 169.00 171.99 230.00 149.00 TS-I28 DSD-EC 172.00-183.99 172.00 183.99 230.00 161.00 TS-I29 DSD-EC 184.00-195.99 184.00 195.99 250.00 173.00 TS-I30 DSD-EC 196.00-207.99 196.00 207.99 250.00 185.00 TS-I31 DSD-EC 208.00-219.99 208.00 219.99 250.00 197.00 TS-I32 DSD-EC 220.00-231.99 220.00 231.99 270.00 208.00 TS-I33 DSD-EC 232.00-232.99 232.00 232.99 270.00 220.00 TS-I34 Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional specified on page For quotation form and user guide, see pages 630-647 For spare parts, see page 618 (1) Tube designation For inserts, see pages: NPMX 0802 RG (619) NPMX 0803 RB/RG (621) TPMX (619) For holders, see pages: TS-I (626) outer cartridges and pads as Ordering example: DSD-EC 067.30 DSD-EF-FT Deep Single Tube Drills with External 4 Start Thread Connection Carrying Triangular Inserts T (Wrench Size) mi Обозначение Designation D min D max L Eh1 d Ts <1> DSD-EF 16.00-16.70-FT 16.00 16.70 55.00 2.20 12.60 TS-I0 DSD-EF 16.71-17.70-FT 16.71 17.70 55.00 2.20 13.60 TS-I1 DSD-EF 17.71-18.90-FT 17.71 18.90 56.00 3.00 14.50 TS-I2 DSD-EF 18.91-20.00-FT 18.91 20.00 56.00 3.00 15.50 TS-I3 DSD-EF 20.01-21.80-FT 20.01 21.80 60.00 3.20 16.00 TS-I4 DSD-EF 21.81-21.99-FT 21.81 21.99 63.50 3.20 18.00 TS-15 DSD-EF 22.00-24.10-FT 22.00 24.10 65.50 3.40 18.00 TS-15 DSD-EF 24.11-25.00-FT 24.11 25.00 65.50 3.40 19.50 TS-16 DSD-EF 25.01-26.40-FT 25.01 26.40 67.50 3.60 19.50 TS-16 DSD-EF 26.41-28.00-FT 26.41 28.00 67.50 3.60 21.00 TS-17 Note: Each item in the attached catalog page represents a diameter range For spare parts, insert information and user guide, see pages 616, 630-647 Inserts and guide pads should be ordered separately Ordering example: DSD-EF 016.50-FT (1) Tube designation For inserts, see pages: TOGT (650) For holders, see pages: TS-I (626) 604 ISCAR
