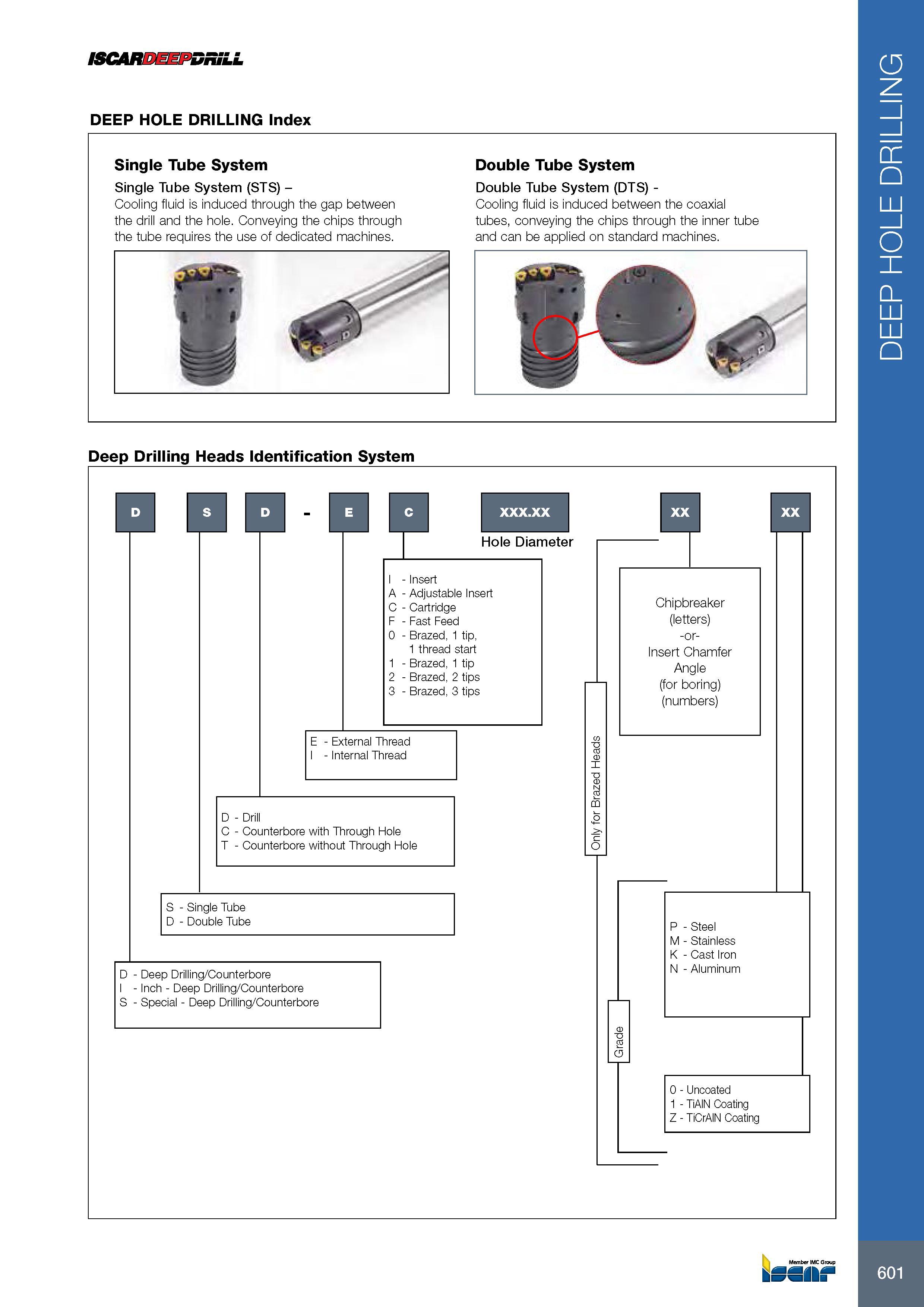

ISCARDEEPDRiLL DEEP HOLE DRILLING Index Single Tube System Single Tube System (STS) - Cooling fluid is induced through the gap between the drill and the hole. Conveying the chips through the tube requires the use of dedicated machines. Double Tube System Double Tube System (DTS) - Cooling fluid is induced between the coaxial tubes, conveying the chips through the inner tube and can be applied on standard machines. Deep Drilling Heads Identification System n Hole Diameter I - Insert A - Adjustable Insert C - Cartridge F - Fast Feed 0 - Brazed, 1 tip, 1 thread start 1 - Brazed, 1 tip 2 - Brazed, 2 tips 3 - Brazed, 3 tips S - Single Tube D - Double Tube D - Deep Drilling/Counterbore I - Inch - Deep Drilling/Counterbore S - Special - Deep Drilling/Counterbore CD a ra C5 P - Steel M - Stainless K - Cast Iron N - Aluminum 0 - Uncoated 1 - TiAlN Coating Z - TiCrAlN Coating 601 DEEP HOLE DRILLING
