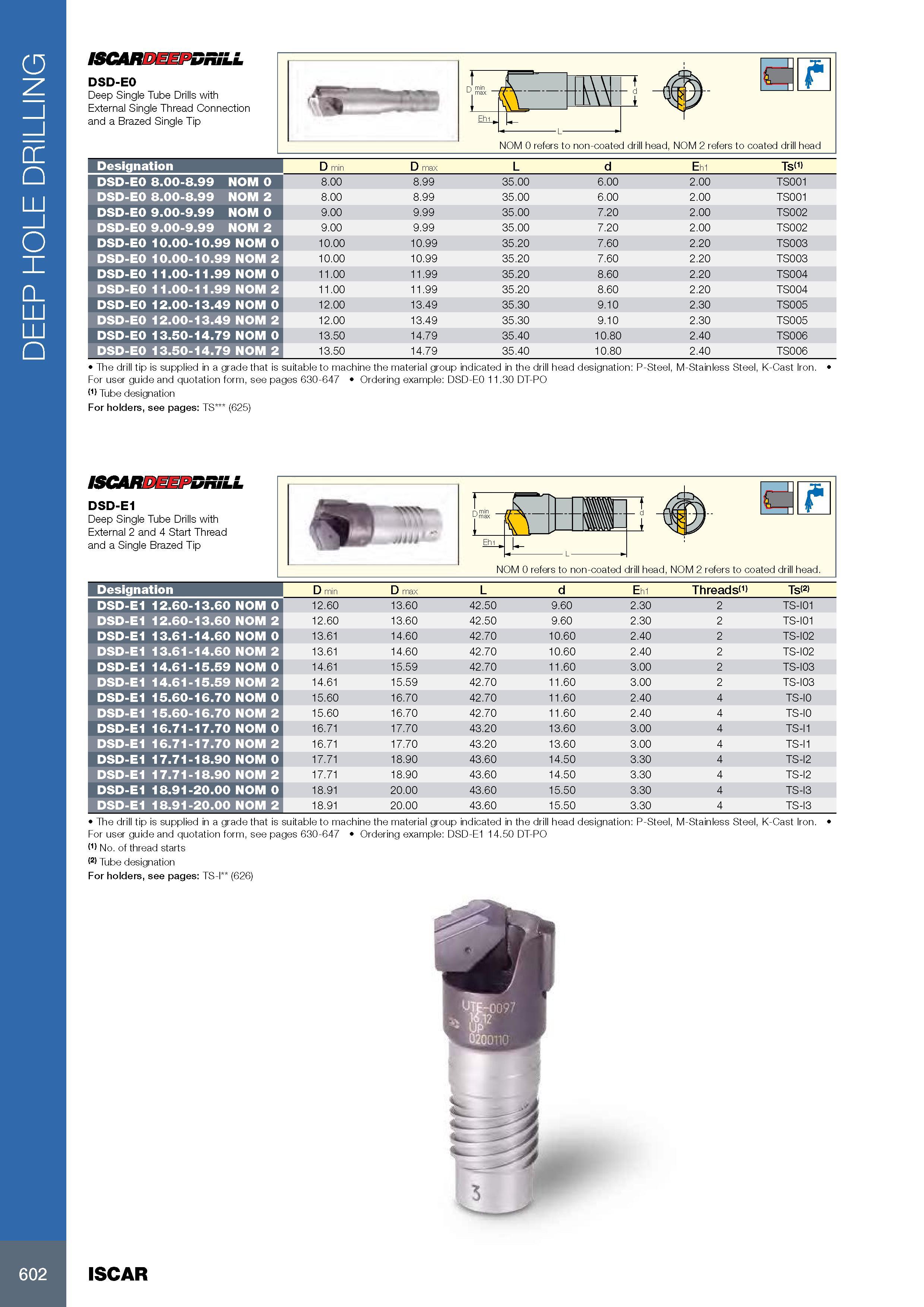

DEEP HOLE DRILLING ISCARDEEPDRiLL DSD-E0 Deep Single Tube Drills with External Single Thread Connection and a Brazed Single Tip Обозначение Designation D min D max L d Eh1 Ts DSD-E0 8.00-8.99 NOM 0 8.00 8.99 35.00 6.00 2.00 TS001 DSD-E0 8.00-8.99 NOM 2 8.00 8.99 35.00 6.00 2.00 TS001 DSD-E0 9.00-9.99 NOM 0 9.00 9.99 35.00 7.20 2.00 TS002 DSD-E0 9.00-9.99 NOM 2 9.00 9.99 35.00 7.20 2.00 TS002 DSD-E0 10.00-10.99 NOM 0 10.00 10.99 35.20 7.60 2.20 TS003 DSD-E0 10.00-10.99 NOM 2 10.00 10.99 35.20 7.60 2.20 TS003 DSD-E0 11.00-11.99 NOM 0 11.00 11.99 35.20 8.60 2.20 TS004 DSD-E0 11.00-11.99 NOM 2 11.00 11.99 35.20 8.60 2.20 TS004 DSD-E0 12.00-13.49 NOM 0 12.00 13.49 35.30 9.10 2.30 TS005 DSD-E0 12.00-13.49 NOM 2 12.00 13.49 35.30 9.10 2.30 TS005 DSD-E0 13.50-14.79 NOM 0 13.50 14.79 35.40 10.80 2.40 TS006 DSD-E0 13.50-14.79 NOM 2 13.50 14.79 35.40 10.80 2.40 TS006 The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron. For user guide and quotation form, see pages 630-647 Ordering example: DSD-E0 11.30 DT-PO (1) Tube designation For holders, see pages: TS (625) ISCAR DSD-E1 Deep Single Tube Drills with External 2 and 4 Start Thread and a Single Brazed Tip Обозначение Designation D min D max L d Eh1 Threads 1) Ts (2) DSD-E1 12.60-13.60 NOM 0 12.60 13.60 42.50 9.60 2.30 2 TS-I01 DSD-E1 12.60-13.60 NOM 2 12.60 13.60 42.50 9.60 2.30 2 TS-I01 DSD-E1 13.61-14.60 NOM 0 13.61 14.60 42.70 10.60 2.40 2 TS-I02 DSD-E1 13.61-14.60 NOM 2 13.61 14.60 42.70 10.60 2.40 2 TS-I02 DSD-E1 14.61-15.59 NOM 0 14.61 15.59 42.70 11.60 3.00 2 TS-I03 DSD-E1 14.61-15.59 NOM 2 14.61 15.59 42.70 11.60 3.00 2 TS-I03 DSD-E1 15.60-16.70 NOM 0 15.60 16.70 42.70 11.60 2.40 4 TS-I0 DSD-E1 15.60-16.70 NOM 2 15.60 16.70 42.70 11.60 2.40 4 TS-I0 DSD-E1 16.71-17.70 NOM 0 16.71 17.70 43.20 13.60 3.00 4 TS-I1 DSD-E1 16.71-17.70 NOM 2 16.71 17.70 43.20 13.60 3.00 4 TS-I1 DSD-E1 17.71-18.90 NOM 0 17.71 18.90 43.60 14.50 3.30 4 TS-I2 DSD-E1 17.71-18.90 NOM 2 17.71 18.90 43.60 14.50 3.30 4 TS-I2 DSD-E1 18.91-20.00 NOM 0 18.91 20.00 43.60 15.50 3.30 4 TS-I3 DSD-E1 18.91-20.00 NOM 2 18.91 20.00 43.60 15.50 3.30 4 TS-I3 The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron. For user guide and quotation form, see pages 630-647 Ordering example: DSD-E1 14.50 DT-PO (1) No. of thread starts Tube designation For holders, see pages: TS-I (626) 602 ISCAR
