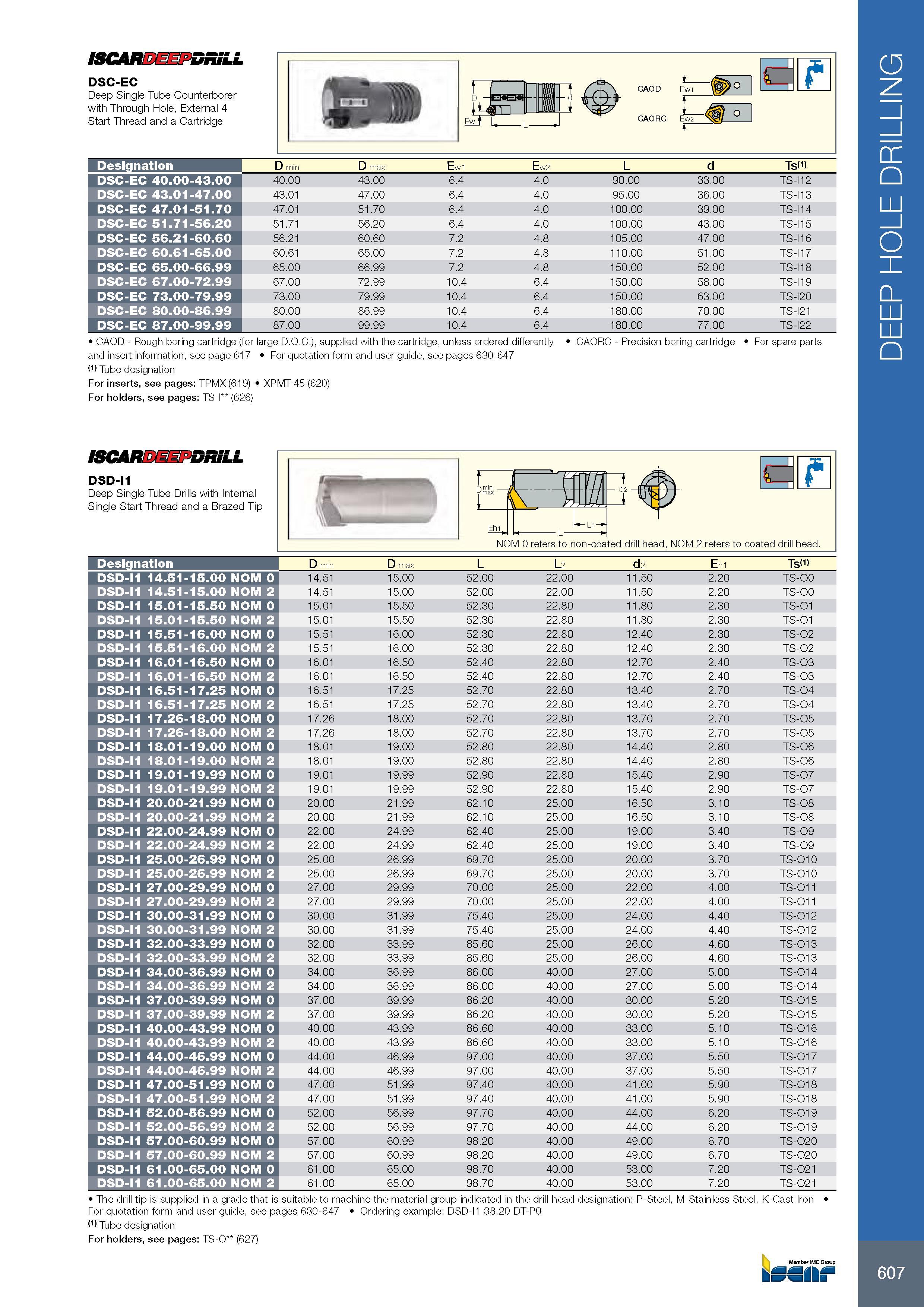

607 ISCARDEEPDRiLL DSC-EC Deep Single Tube Counterborer with Through Hole, External 4 Start Thread and a Cartridge a f6 Обозначение Designation D min D max Ewi Ewi L d Ts DSC-EC 40.00-43.00 40.00 43.00 6.4 4.0 90.00 33.00 TS-I12 DSC-EC 43.01-47.00 43.01 47.00 6.4 4.0 95.00 36.00 TS-I13 DSC-EC 47.01-51.70 47.01 51.70 6.4 4.0 100.00 39.00 TS-I14 DSC-EC 51.71-56.20 51.71 56.20 6.4 4.0 100.00 43.00 TS-I15 DSC-EC 56.21-60.60 56.21 60.60 7.2 4.8 105.00 47.00 TS-I16 DSC-EC 60.61-65.00 60.61 65.00 7.2 4.8 110.00 51.00 TS-I17 DSC-EC 65.00-66.99 65.00 66.99 7.2 4.8 150.00 52.00 TS-I18 DSC-EC 67.00-72.99 67.00 72.99 10.4 6.4 150.00 58.00 TS-I19 DSC-EC 73.00-79.99 73.00 79.99 10.4 6.4 150.00 63.00 TS-I20 DSC-EC 80.00-86.99 80.00 86.99 10.4 6.4 180.00 70.00 TS-I21 DSC-EC 87.00-99.99 87.00 99.99 10.4 6.4 180.00 77.00 TS-I22 CAOD - Rough boring cartridge (for large D.O.C.), supplied with the cartridge, unless ordered differently CAORC - Precision boring cartridge For spare parts and insert information, see page 617 For quotation form and user guide, see pages 630-647 (1) Tube designation For inserts, see pages: TPMX (619) XPMT-45 (620) For holders, see pages: TS-I (626) ISCARDEEPDRiLL DSD-I1 Deep Single Tube Drills with Internal Single Start Thread and a Brazed Tip NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head. Обозначение Designation D min D max L L2 d2 Eh1 Ts DSD-I1 14.51-15.00 NOM 0 14.51 15.00 52.00 22.00 11.50 2.20 TS-O0 DSD-I1 14.51-15.00 NOM 2 14.51 15.00 52.00 22.00 11.50 2.20 TS-O0 DSD-I1 15.01-15.50 NOM 0 15.01 15.50 52.30 22.80 11.80 2.30 TS-O1 DSD-I1 15.01-15.50 NOM 2 15.01 15.50 52.30 22.80 11.80 2.30 TS-O1 DSD-I1 15.51-16.00 NOM 0 15.51 16.00 52.30 22.80 12.40 2.30 TS-O2 DSD-I1 15.51-16.00 NOM 2 15.51 16.00 52.30 22.80 12.40 2.30 TS-O2 DSD-I1 16.01-16.50 NOM 0 16.01 16.50 52.40 22.80 12.70 2.40 TS-O3 DSD-I1 16.01-16.50 NOM 2 16.01 16.50 52.40 22.80 12.70 2.40 TS-O3 DSD-I1 16.51-17.25 NOM 0 16.51 17.25 52.70 22.80 13.40 2.70 TS-O4 DSD-I1 16.51-17.25 NOM 2 16.51 17.25 52.70 22.80 13.40 2.70 TS-O4 DSD-I1 17.26-18.00 NOM 0 17.26 18.00 52.70 22.80 13.70 2.70 TS-O5 DSD-I1 17.26-18.00 NOM 2 17.26 18.00 52.70 22.80 13.70 2.70 TS-O5 DSD-I1 18.01-19.00 NOM 0 18.01 19.00 52.80 22.80 14.40 2.80 TS-O6 DSD-I1 18.01-19.00 NOM 2 18.01 19.00 52.80 22.80 14.40 2.80 TS-O6 DSD-I1 19.01-19.99 NOM 0 19.01 19.99 52.90 22.80 15.40 2.90 TS-O7 DSD-I1 19.01-19.99 NOM 2 19.01 19.99 52.90 22.80 15.40 2.90 TS-O7 DSD-I1 20.00-21.99 NOM 0 20.00 21.99 62.10 25.00 16.50 3.10 TS-O8 DSD-I1 20.00-21.99 NOM 2 20.00 21.99 62.10 25.00 16.50 3.10 TS-O8 DSD-I1 22.00-24.99 NOM 0 22.00 24.99 62.40 25.00 19.00 3.40 TS-O9 DSD-I1 22.00-24.99 NOM 2 22.00 24.99 62.40 25.00 19.00 3.40 TS-O9 DSD-I1 25.00-26.99 NOM 0 25.00 26.99 69.70 25.00 20.00 3.70 TS-O10 DSD-I1 25.00-26.99 NOM 2 25.00 26.99 69.70 25.00 20.00 3.70 TS-O10 DSD-I1 27.00-29.99 NOM 0 27.00 29.99 70.00 25.00 22.00 4.00 TS-O11 DSD-I1 27.00-29.99 NOM 2 27.00 29.99 70.00 25.00 22.00 4.00 TS-O11 DSD-I1 30.00-31.99 NOM 0 30.00 31.99 75.40 25.00 24.00 4.40 TS-O12 DSD-I1 30.00-31.99 NOM 2 30.00 31.99 75.40 25.00 24.00 4.40 TS-O12 DSD-I1 32.00-33.99 NOM 0 32.00 33.99 85.60 25.00 26.00 4.60 TS-O13 DSD-I1 32.00-33.99 NOM 2 32.00 33.99 85.60 25.00 26.00 4.60 TS-O13 DSD-I1 34.00-36.99 NOM 0 34.00 36.99 86.00 40.00 27.00 5.00 TS-O14 DSD-I1 34.00-36.99 NOM 2 34.00 36.99 86.00 40.00 27.00 5.00 TS-O14 DSD-I1 37.00-39.99 NOM 0 37.00 39.99 86.20 40.00 30.00 5.20 TS-O15 DSD-I1 37.00-39.99 NOM 2 37.00 39.99 86.20 40.00 30.00 5.20 TS-O15 DSD-I1 40.00-43.99 NOM 0 40.00 43.99 86.60 40.00 33.00 5.10 TS-O16 DSD-I1 40.00-43.99 NOM 2 40.00 43.99 86.60 40.00 33.00 5.10 TS-O16 DSD-I1 44.00-46.99 NOM 0 44.00 46.99 97.00 40.00 37.00 5.50 TS-O17 DSD-I1 44.00-46.99 NOM 2 44.00 46.99 97.00 40.00 37.00 5.50 TS-O17 DSD-I1 47.00-51.99 NOM 0 47.00 51.99 97.40 40.00 41.00 5.90 TS-O18 DSD-I1 47.00-51.99 NOM 2 47.00 51.99 97.40 40.00 41.00 5.90 TS-O18 DSD-I1 52.00-56.99 NOM 0 52.00 56.99 97.70 40.00 44.00 6.20 TS-O19 DSD-I1 52.00-56.99 NOM 2 52.00 56.99 97.70 40.00 44.00 6.20 TS-O19 DSD-I1 57.00-60.99 NOM 0 57.00 60.99 98.20 40.00 49.00 6.70 TS-O20 DSD-I1 57.00-60.99 NOM 2 57.00 60.99 98.20 40.00 49.00 6.70 TS-O20 DSD-I1 61.00-65.00 NOM 0 61.00 65.00 98.70 40.00 53.00 7.20 TS-O21 DSD-I1 61.00-65.00 NOM 2 61.00 65.00 98.70 40.00 53.00 7.20 TS-O21 The drill tip is supplied in a grade that is suitable to machine the material group indicated in For quotation form and user guide, see pages 630-647 Ordering example: DSD-I1 38.20 (1) Tube designation For holders, see pages: TS-O (627) the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron DT-P0 Member IMC Group DEEP HOLE DRILLING
