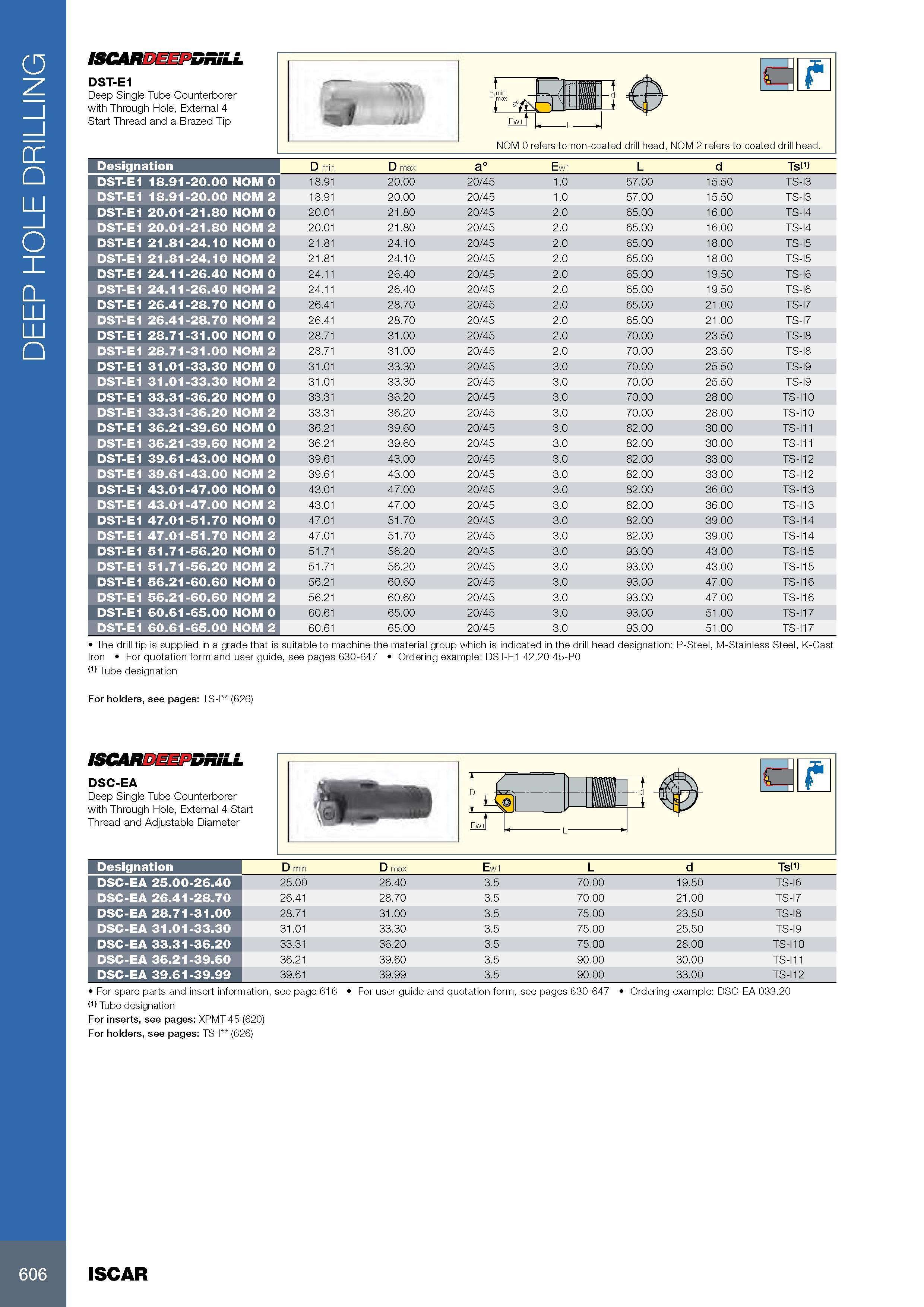

DEEP HOLE DRILLING ISCARDEEPDRiLL DST-E1 Deep Single Tube Counterborer with Through Hole, External 4 Start Thread and a Brazed Tip Обозначение Designation D min D max a° Ew1 L d Ts <1> DST-E1 18.91-20.00 NOM 0 18.91 20.00 20/45 1.0 57.00 15.50 TS-I3 DST-E1 18.91-20.00 NOM 2 18.91 20.00 20/45 1.0 57.00 15.50 TS-I3 DST-E1 20.01-21.80 NOM 0 20.01 21.80 20/45 2.0 65.00 16.00 TS-I4 DST-E1 20.01-21.80 NOM 2 20.01 21.80 20/45 2.0 65.00 16.00 TS-I4 DST-E1 21.81-24.10 NOM 0 21.81 24.10 20/45 2.0 65.00 18.00 TS-I5 DST-E1 21.81-24.10 NOM 2 21.81 24.10 20/45 2.0 65.00 18.00 TS-I5 DST-E1 24.11-26.40 NOM 0 24.11 26.40 20/45 2.0 65.00 19.50 TS-I6 DST-E1 24.11-26.40 NOM 2 24.11 26.40 20/45 2.0 65.00 19.50 TS-I6 DST-E1 26.41-28.70 NOM 0 26.41 28.70 20/45 2.0 65.00 21.00 TS-I7 DST-E1 26.41-28.70 NOM 2 26.41 28.70 20/45 2.0 65.00 21.00 TS-I7 DST-E1 28.71-31.00 NOM 0 28.71 31.00 20/45 2.0 70.00 23.50 TS-I8 DST-E1 28.71-31.00 NOM 2 28.71 31.00 20/45 2.0 70.00 23.50 TS-I8 DST-E1 31.01-33.30 NOM 0 31.01 33.30 20/45 3.0 70.00 25.50 TS-I9 DST-E1 31.01-33.30 NOM 2 31.01 33.30 20/45 3.0 70.00 25.50 TS-I9 DST-E1 33.31-36.20 NOM 0 33.31 36.20 20/45 3.0 70.00 28.00 TS-I10 DST-E1 33.31-36.20 NOM 2 33.31 36.20 20/45 3.0 70.00 28.00 TS-I10 DST-E1 36.21-39.60 NOM 0 36.21 39.60 20/45 3.0 82.00 30.00 TS-I11 DST-E1 36.21-39.60 NOM 2 36.21 39.60 20/45 3.0 82.00 30.00 TS-I11 DST-E1 39.61-43.00 NOM 0 39.61 43.00 20/45 3.0 82.00 33.00 TS-I12 DST-E1 39.61-43.00 NOM 2 39.61 43.00 20/45 3.0 82.00 33.00 TS-I12 DST-E1 43.01-47.00 NOM 0 43.01 47.00 20/45 3.0 82.00 36.00 TS-I13 DST-E1 43.01-47.00 NOM 2 43.01 47.00 20/45 3.0 82.00 36.00 TS-I13 DST-E1 47.01-51.70 NOM 0 47.01 51.70 20/45 3.0 82.00 39.00 TS-I14 DST-E1 47.01-51.70 NOM 2 47.01 51.70 20/45 3.0 82.00 39.00 TS-I14 DST-E1 51.71-56.20 NOM 0 51.71 56.20 20/45 3.0 93.00 43.00 TS-I15 DST-E1 51.71-56.20 NOM 2 51.71 56.20 20/45 3.0 93.00 43.00 TS-I15 DST-E1 56.21-60.60 NOM 0 56.21 60.60 20/45 3.0 93.00 47.00 TS-I16 DST-E1 56.21-60.60 NOM 2 56.21 60.60 20/45 3.0 93.00 47.00 TS-I16 DST-E1 60.61-65.00 NOM 0 60.61 65.00 20/45 3.0 93.00 51.00 TS-I17 DST-E1 60.61-65.00 NOM 2 60.61 65.00 20/45 3.0 93.00 51.00 TS-I17 The drill tip is supplied in a grade that is suitable to machine the material group which is indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron For quotation form and user guide, see pages 630-647 Ordering example: DST-E1 42.20 45-P0 (1) Tube designation For holders, see pages: TS-I (626) ISCARDEEPDRiLL DSC-EA Deep Single Tube Counterborer with Through Hole, External 4 Start Thread and Adjustable Diameter D min D max Ew1 L d Ts(1) 25.00 26.40 3.5 70.00 19.50 TS-I6 26.41 28.70 3.5 70.00 21.00 TS-I7 28.71 31.00 3.5 75.00 23.50 TS-I8 31.01 33.30 3.5 75.00 25.50 TS-I9 33.31 36.20 3.5 75.00 28.00 TS-I10 36.21 39.60 3.5 90.00 30.00 TS-I11 39.61 39.99 3.5 90.00 33.00 TS-I12 For spare parts and insert information, see page 616 For user guide and quotation form, see pages 630-647 Ordering example: DSC-EA 033.20 (1) Tube designation For inserts, see pages: XPMT-45 (620) For holders, see pages: TS-I (626) Обозначение Designation DSC-EA 25.00-26.40 DSC-EA 26.41-28.70 DSC-EA 28.71-31.00 DSC-EA 31.01-33.30 DSC-EA 33.31-36.20 DSC-EA 36.21-39.60 DSC-EA 39.61-39.99 606 ISCAR
