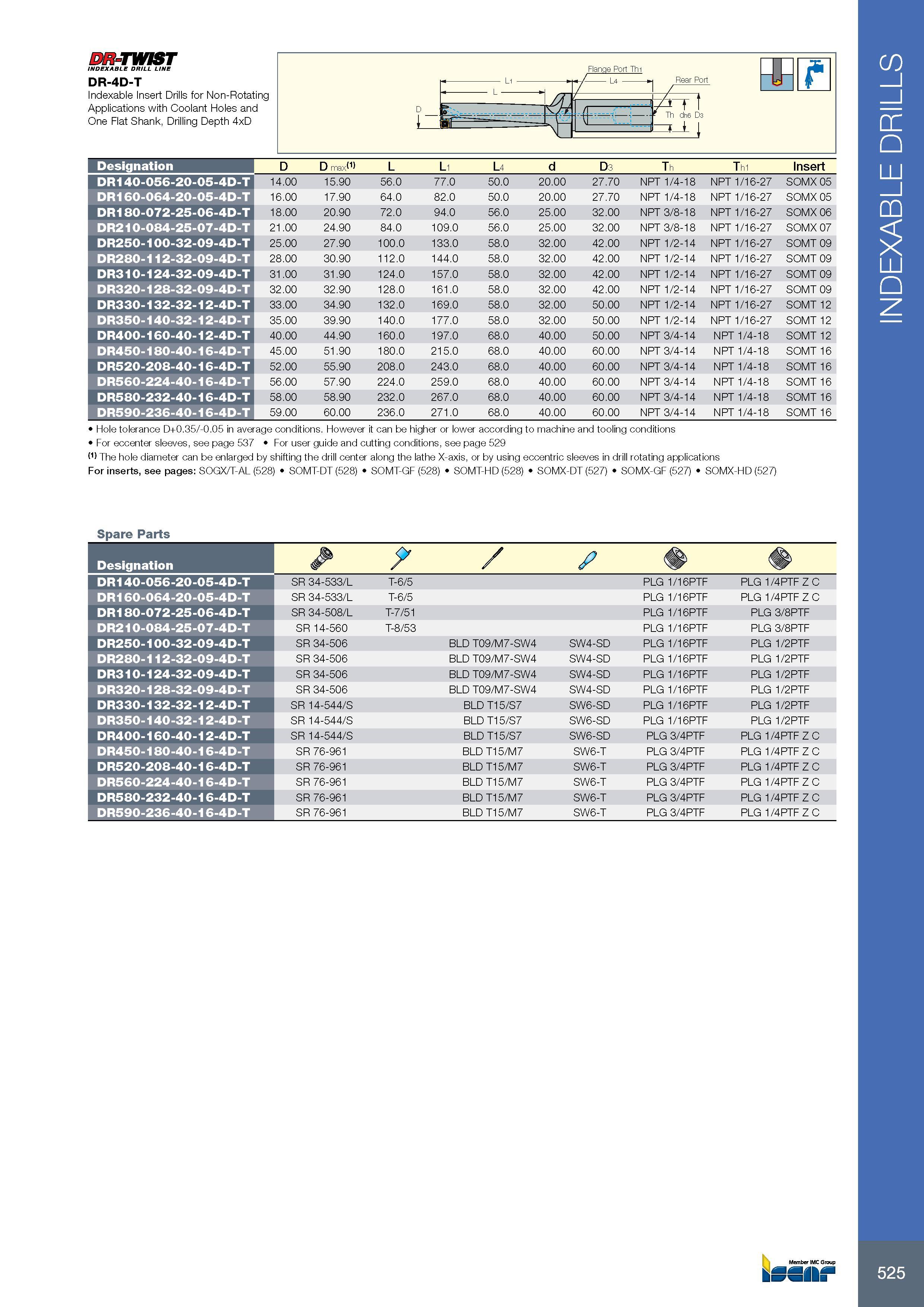

DR-TWIST INDEXABLE DRILL LINE DR-4D-T Indexable Insert Drills for Non-Rotating Applications with Coolant Holes and One Flat Shank, Drilling Depth 4xD Обозначение Designation D D max(1) L L1 L4 d D3 Th Th1 Insert DR140-056-20-05-4D-T 14.00 15.90 56.0 77.0 50.0 20.00 27.70 NPT 1/4-18 NPT 1/16-27 SOMX 05 DR160-064-20-05-4D-T 16.00 17.90 64.0 82.0 50.0 20.00 27.70 NPT 1/4-18 NPT 1/16-27 SOMX 05 DR180-072-25-06-4D-T 18.00 20.90 72.0 94.0 56.0 25.00 32.00 NPT 3/8-18 NPT 1/16-27 SOMX 06 DR210-084-25-07-4D-T 21.00 24.90 84.0 109.0 56.0 25.00 32.00 NPT 3/8-18 NPT 1/16-27 SOMX 07 DR250-100-32-09-4D-T 25.00 27.90 100.0 133.0 58.0 32.00 42.00 NPT 1/2-14 NPT 1/16-27 SOMT 09 DR280-112-32-09-4D-T 28.00 30.90 112.0 144.0 58.0 32.00 42.00 NPT 1/2-14 NPT 1/16-27 SOMT 09 DR310-124-32-09-4D-T 31.00 31.90 124.0 157.0 58.0 32.00 42.00 NPT 1/2-14 NPT 1/16-27 SOMT 09 DR320-128-32-09-4D-T 32.00 32.90 128.0 161.0 58.0 32.00 42.00 NPT 1/2-14 NPT 1/16-27 SOMT 09 DR330-132-32-12-4D-T 33.00 34.90 132.0 169.0 58.0 32.00 50.00 NPT 1/2-14 NPT 1/16-27 SOMT 12 DR350-140-32-12-4D-T 35.00 39.90 140.0 177.0 58.0 32.00 50.00 NPT 1/2-14 NPT 1/16-27 SOMT 12 DR400-160-40-12-4D-T 40.00 44.90 160.0 197.0 68.0 40.00 50.00 NPT 3/4-14 NPT 1/4-18 SOMT 12 DR450-180-40-16-4D-T 45.00 51.90 180.0 215.0 68.0 40.00 60.00 NPT 3/4-14 NPT 1/4-18 SOMT 16 DR520-208-40-16-4D-T 52.00 55.90 208.0 243.0 68.0 40.00 60.00 NPT 3/4-14 NPT 1/4-18 SOMT 16 DR560-224-40-16-4D-T 56.00 57.90 224.0 259.0 68.0 40.00 60.00 NPT 3/4-14 NPT 1/4-18 SOMT 16 DR580-232-40-16-4D-T 58.00 58.90 232.0 267.0 68.0 40.00 60.00 NPT 3/4-14 NPT 1/4-18 SOMT 16 DR590-236-40-16-4D-T 59.00 60.00 236.0 271.0 68.0 40.00 60.00 NPT 3/4-14 NPT 1/4-18 SOMT16 Hole tolerance D+0.35/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions For eccenter sleeves, see page 537 For user guide and cutting conditions, see page 529 (1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications For inserts, see pages: SOGX/T-AL (528) SOMT-DT (528) SOMT-GF (528) SOMT-HD (528) SOMX-DT (527) SOMX-GF (527) SOMX-HD (527) Spare Parts Обозначение Designation & z7 DR140-056-20-05-4D-T SR 34-533/L T-6/5 PLG 1/16PTF PLG 1/4PTF Z C DR160-064-20-05-4D-T SR 34-533/L T-6/5 PLG 1/16PTF PLG 1/4PTF Z C DR180-072-25-06-4D-T SR 34-508/L T-7/51 PLG 1/16PTF PLG 3/8PTF DR210-084-25-07-4D-T SR 14-560 T-8/53 PLG 1/16PTF PLG 3/8PTF DR250-100-32-09-4D-T SR 34-506 BLD T09/M7-SW4 SW4-SD PLG 1/16PTF PLG 1/2PTF DR280-112-32-09-4D-T SR 34-506 BLD T09/M7-SW4 SW4-SD PLG 1/16PTF PLG 1/2PTF DR310-124-32-09-4D-T SR 34-506 BLD T09/M7-SW4 SW4-SD PLG 1/16PTF PLG 1/2PTF DR320-128-32-09-4D-T SR 34-506 BLD T09/M7-SW4 SW4-SD PLG 1/16PTF PLG 1/2PTF DR330-132-32-12-4D-T SR 14-544/S BLD T15/S7 SW6-SD PLG 1/16PTF PLG 1/2PTF DR350-140-32-12-4D-T SR 14-544/S BLD T15/S7 SW6-SD PLG 1/16PTF PLG 1/2PTF DR400-160-40-12-4D-T SR 14-544/S BLD T15/S7 SW6-SD PLG 3/4PTF PLG 1/4PTF Z C DR450-180-40-16-4D-T SR 76-961 BLD T15/M7 SW6-T PLG 3/4PTF PLG 1/4PTF Z C DR520-208-40-16-4D-T SR 76-961 BLD T15/M7 SW6-T PLG 3/4PTF PLG 1/4PTF Z C DR560-224-40-16-4D-T SR 76-961 BLD T15/M7 SW6-T PLG 3/4PTF PLG 1/4PTF Z C DR580-232-40-16-4D-T SR 76-961 BLD T15/M7 SW6-T PLG 3/4PTF PLG 1/4PTF Z C DR590-236-40-16-4D-T SR 76-961 BLD T15/M7 SW6-T PLG 3/4PTF PLG 1/4PTF Z C 525 INDEXABLE DRILLS
