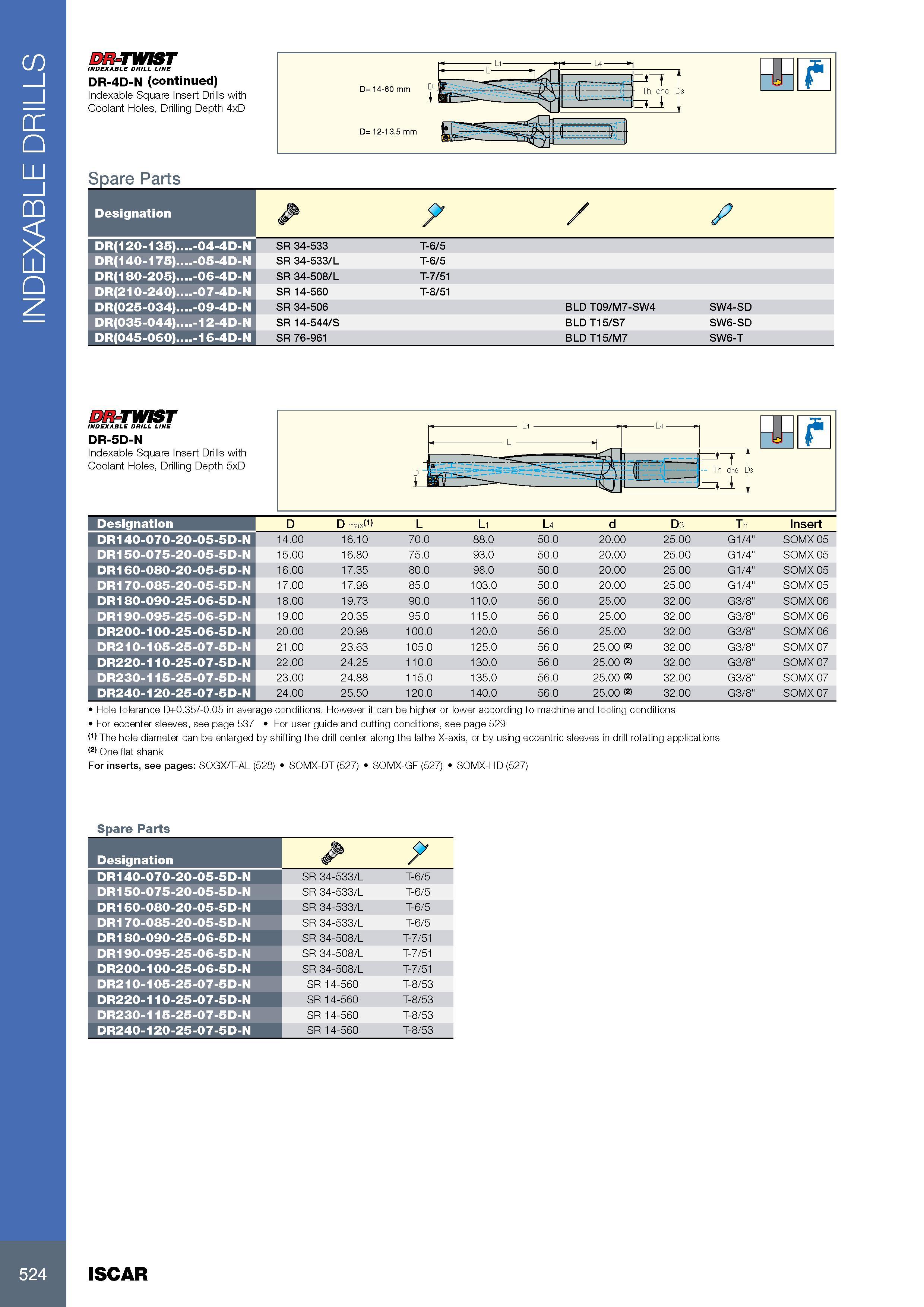

INDEXABLE DRILLS DR-TWIST INDEXABLE DRILL LINE DR-4D-N (continued) Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD Spare Parts Обозначение Designation / Z’ DR(120-135).. ..-04-4D-N SR 34-533 T-6/5 DR(140-175).. ..-05-4D-N SR 34-533/L T-6/5 DR(180-205).. ..-06-4D-N SR 34-508/L T-7/51 DR(210-240).. ..-07-4D-N SR 14-560 T-8/51 DR(025-034).. ..-09-4D-N SR 34-506 BLD T09/M7-SW4 SW4-SD DR(035-044).. ..-12-4D-N SR 14-544/S BLD T15/S7 SW6-SD DR(045-060).. ..-16-4D-N SR 76-961 BLD T15/M7 SW6-T DR-TWIST INDEXABLE DRILL LINE DR-5D-N Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Обозначение Designation D D max(1) L L1 L4 d D3 Th Insert DR140-070-20-05-5D-N 14.00 16.10 70.0 88.0 50.0 20.00 25.00 G1/4" SOMX 05 DR150-075-20-05-5D-N 15.00 16.80 75.0 93.0 50.0 20.00 25.00 G1/4" SOMX 05 DR160-080-20-05-5D-N 16.00 17.35 80.0 98.0 50.0 20.00 25.00 G1/4" SOMX 05 DR170-085-20-05-5D-N 17.00 17.98 85.0 103.0 50.0 20.00 25.00 G1/4" SOMX 05 DR180-090-25-06-5D-N 18.00 19.73 90.0 110.0 56.0 25.00 32.00 G3/8" SOMX 06 DR190-095-25-06-5D-N 19.00 20.35 95.0 115.0 56.0 25.00 32.00 G3/8" SOMX 06 DR200-100-25-06-5D-N 20.00 20.98 100.0 120.0 56.0 25.00 32.00 G3/8" SOMX 06 DR210-105-25-07-5D-N 21.00 23.63 105.0 125.0 56.0 25.00 (2) 32.00 G3/8" SOMX 07 DR220-110-25-07-5D-N 22.00 24.25 110.0 130.0 56.0 25.00 (2) 32.00 G3/8" SOMX 07 DR230-115-25-07-5D-N 23.00 24.88 115.0 135.0 56.0 25.00 (2) 32.00 G3/8" SOMX 07 DR240-120-25-07-5D-N 24.00 25.50 120.0 140.0 56.0 25.00 (2) 32.00 G3/8" SOMX 07 Hole tolerance D+0.35/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions For eccenter sleeves, see page 537 For user guide and cutting conditions, see page 529 (1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications (2) One flat shank For inserts, see pages: SOGX/T-AL (528) SOMX-DT (527) SOMX-GF (527) SOMX-HD (527) Spare Parts Обозначение Designation DR140-070-20-05-5D-N SR 34-533/L T-6/5 DR150-075-20-05-5D-N SR 34-533/L T-6/5 DR160-080-20-05-5D-N SR 34-533/L T-6/5 DR170-085-20-05-5D-N SR 34-533/L T-6/5 DR180-090-25-06-5D-N SR 34-508/L T-7/51 DR190-095-25-06-5D-N SR 34-508/L T-7/51 DR200-100-25-06-5D-N SR 34-508/L T-7/51 DR210-105-25-07-5D-N SR 14-560 T-8/53 DR220-110-25-07-5D-N SR 14-560 T-8/53 DR230-115-25-07-5D-N SR 14-560 T-8/53 DR240-120-25-07-5D-N SR 14-560 T-8/53 524 ISCAR
