527 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.523

Каталог ISCAR 2017 Ротационный инструмент Стр. 523 0527 ENG Lab2u

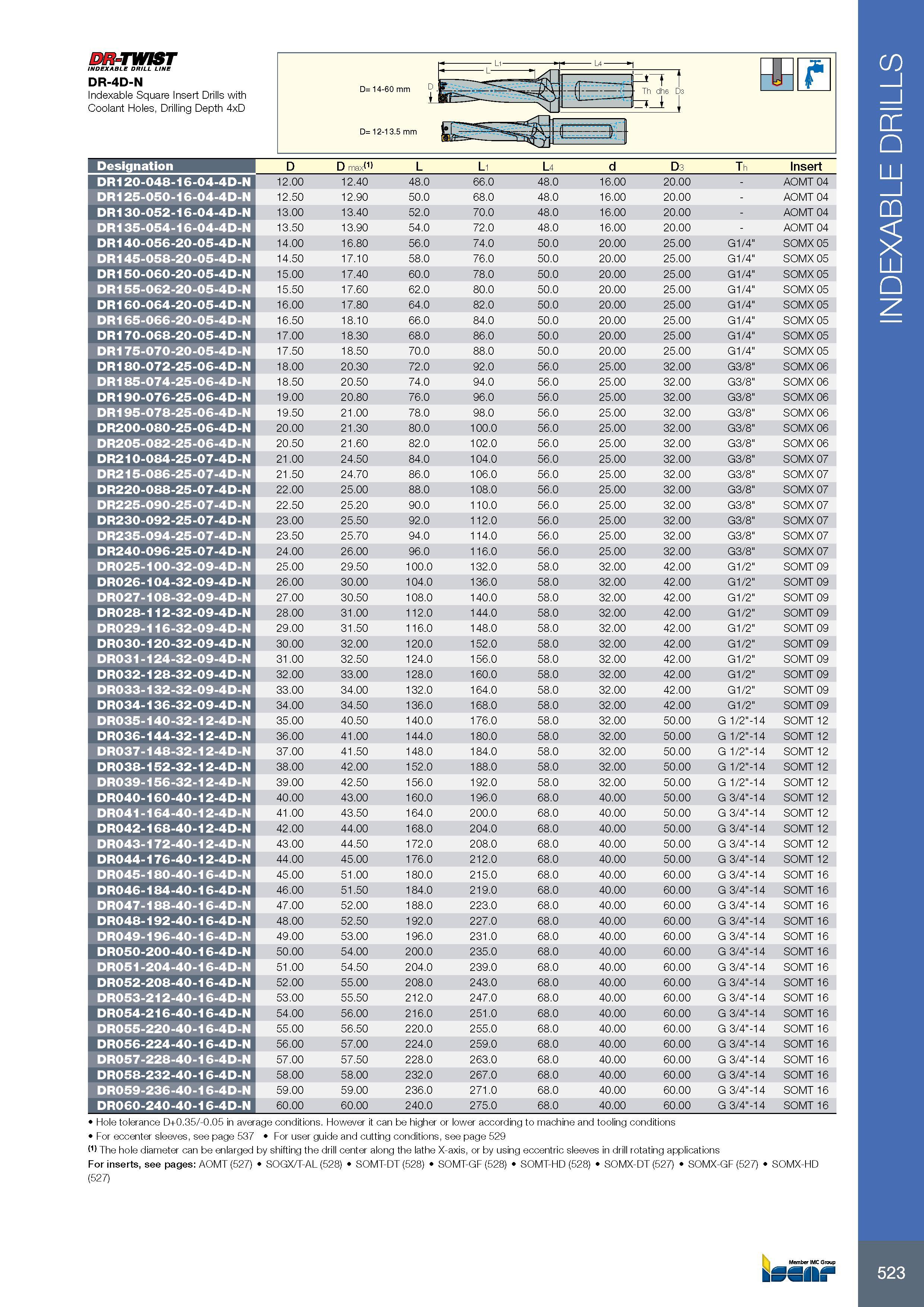

523 DR-TWIST INDEXABLE DRILL LINE DR-4D-N Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD Обозначение Designation D D max(1) L L1 L4 d D3 Th Insert DR120-048-16-04-4D-N 12.00 12.40 48.0 66.0 48.0 16.00 20.00 - AOMT 04 DR125-050-16-04-4D-N 12.50 12.90 50.0 68.0 48.0 16.00 20.00 - AOMT 04 DR130-052-16-04-4D-N 13.00 13.40 52.0 70.0 48.0 16.00 20.00 - AOMT 04 DR135-054-16-04-4D-N 13.50 13.90 54.0 72.0 48.0 16.00 20.00 - AOMT 04 DR140-056-20-05-4D-N 14.00 16.80 56.0 74.0 50.0 20.00 25.00 G1/4" SOMX 05 DR145-058-20-05-4D-N 14.50 17.10 58.0 76.0 50.0 20.00 25.00 G1/4" SOMX 05 DR150-060-20-05-4D-N 15.00 17.40 60.0 78.0 50.0 20.00 25.00 G1/4" SOMX 05 DR155-062-20-05-4D-N 15.50 17.60 62.0 80.0 50.0 20.00 25.00 G1/4" SOMX 05 DR160-064-20-05-4D-N 16.00 17.80 64.0 82.0 50.0 20.00 25.00 G1/4" SOMX 05 DR165-066-20-05-4D-N 16.50 18.10 66.0 84.0 50.0 20.00 25.00 G1/4" SOMX 05 DR170-068-20-05-4D-N 17.00 18.30 68.0 86.0 50.0 20.00 25.00 G1/4" SOMX 05 DR175-070-20-05-4D-N 17.50 18.50 70.0 88.0 50.0 20.00 25.00 G1/4" SOMX 05 DR180-072-25-06-4D-N 18.00 20.30 72.0 92.0 56.0 25.00 32.00 G3/8" SOMX 06 DR185-074-25-06-4D-N 18.50 20.50 74.0 94.0 56.0 25.00 32.00 G3/8" SOMX 06 DR190-076-25-06-4D-N 19.00 20.80 76.0 96.0 56.0 25.00 32.00 G3/8" SOMX 06 DR195-078-25-06-4D-N 19.50 21.00 78.0 98.0 56.0 25.00 32.00 G3/8" SOMX 06 DR200-080-25-06-4D-N 20.00 21.30 80.0 100.0 56.0 25.00 32.00 G3/8" SOMX 06 DR205-082-25-06-4D-N 20.50 21.60 82.0 102.0 56.0 25.00 32.00 G3/8" SOMX 06 DR210-084-25-07-4D-N 21.00 24.50 84.0 104.0 56.0 25.00 32.00 G3/8" SOMX 07 DR215-086-25-07-4D-N 21.50 24.70 86.0 106.0 56.0 25.00 32.00 G3/8" SOMX 07 DR220-088-25-07-4D-N 22.00 25.00 88.0 108.0 56.0 25.00 32.00 G3/8" SOMX 07 DR225-090-25-07-4D-N 22.50 25.20 90.0 110.0 56.0 25.00 32.00 G3/8" SOMX 07 DR230-092-25-07-4D-N 23.00 25.50 92.0 112.0 56.0 25.00 32.00 G3/8" SOMX 07 DR235-094-25-07-4D-N 23.50 25.70 94.0 114.0 56.0 25.00 32.00 G3/8" SOMX 07 DR240-096-25-07-4D-N 24.00 26.00 96.0 116.0 56.0 25.00 32.00 G3/8" SOMX 07 DR025-100-32-09-4D-N 25.00 29.50 100.0 132.0 58.0 32.00 42.00 G1/2" SOMT 09 DR026-104-32-09-4D-N 26.00 30.00 104.0 136.0 58.0 32.00 42.00 G1/2" SOMT 09 DR027-108-32-09-4D-N 27.00 30.50 108.0 140.0 58.0 32.00 42.00 G1/2" SOMT 09 DR028-112-32-09-4D-N 28.00 31.00 112.0 144.0 58.0 32.00 42.00 G1/2" SOMT 09 DR029-116-32-09-4D-N 29.00 31.50 116.0 148.0 58.0 32.00 42.00 G1/2" SOMT 09 DR030-120-32-09-4D-N 30.00 32.00 120.0 152.0 58.0 32.00 42.00 G1/2" SOMT 09 DR031-124-32-09-4D-N 31.00 32.50 124.0 156.0 58.0 32.00 42.00 G1/2" SOMT 09 DR032-128-32-09-4D-N 32.00 33.00 128.0 160.0 58.0 32.00 42.00 G1/2" SOMT 09 DR033-132-32-09-4D-N 33.00 34.00 132.0 164.0 58.0 32.00 42.00 G1/2" SOMT 09 DR034-136-32-09-4D-N 34.00 34.50 136.0 168.0 58.0 32.00 42.00 G1/2" SOMT 09 DR035-140-32-12-4D-N 35.00 40.50 140.0 176.0 58.0 32.00 50.00 G 1/2"-14 SOMT 12 DR036-144-32-12-4D-N 36.00 41.00 144.0 180.0 58.0 32.00 50.00 G 1/2"-14 SOMT 12 DR037-148-32-12-4D-N 37.00 41.50 148.0 184.0 58.0 32.00 50.00 G 1/2"-14 SOMT 12 DR038-152-32-12-4D-N 38.00 42.00 152.0 188.0 58.0 32.00 50.00 G 1/2"-14 SOMT 12 DR039-156-32-12-4D-N 39.00 42.50 156.0 192.0 58.0 32.00 50.00 G 1/2"-14 SOMT 12 DR040-160-40-12-4D-N 40.00 43.00 160.0 196.0 68.0 40.00 50.00 G 3/4"-14 SOMT 12 DR041-164-40-12-4D-N 41.00 43.50 164.0 200.0 68.0 40.00 50.00 G 3/4"-14 SOMT 12 DR042-168-40-12-4D-N 42.00 44.00 168.0 204.0 68.0 40.00 50.00 G 3/4"-14 SOMT 12 DR043-172-40-12-4D-N 43.00 44.50 172.0 208.0 68.0 40.00 50.00 G 3/4"-14 SOMT 12 DR044-176-40-12-4D-N 44.00 45.00 176.0 212.0 68.0 40.00 50.00 G 3/4"-14 SOMT 12 DR045-180-40-16-4D-N 45.00 51.00 180.0 215.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR046-184-40-16-4D-N 46.00 51.50 184.0 219.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR047-188-40-16-4D-N 47.00 52.00 188.0 223.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR048-192-40-16-4D-N 48.00 52.50 192.0 227.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR049-196-40-16-4D-N 49.00 53.00 196.0 231.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR050-200-40-16-4D-N 50.00 54.00 200.0 235.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR051-204-40-16-4D-N 51.00 54.50 204.0 239.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR052-208-40-16-4D-N 52.00 55.00 208.0 243.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR053-212-40-16-4D-N 53.00 55.50 212.0 247.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR054-216-40-16-4D-N 54.00 56.00 216.0 251.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR055-220-40-16-4D-N 55.00 56.50 220.0 255.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR056-224-40-16-4D-N 56.00 57.00 224.0 259.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR057-228-40-16-4D-N 57.00 57.50 228.0 263.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR058-232-40-16-4D-N 58.00 58.00 232.0 267.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR059-236-40-16-4D-N 59.00 59.00 236.0 271.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 DR060-240-40-16-4D-N 60.00 60.00 240.0 275.0 68.0 40.00 60.00 G 3/4"-14 SOMT 16 Hole tolerance D+0.35/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions For eccenter sleeves, see page 537 For user guide and cutting conditions, see page 529 (1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications For inserts, see pages: AOMT (527) SOGX/T-AL (528) SOMT-DT (528) SOMT-GF (528) SOMT-HD (528) SOMX-DT (527) SOMX-GF (527) SOMX-HD (527) INDEXABLE DRILLS
