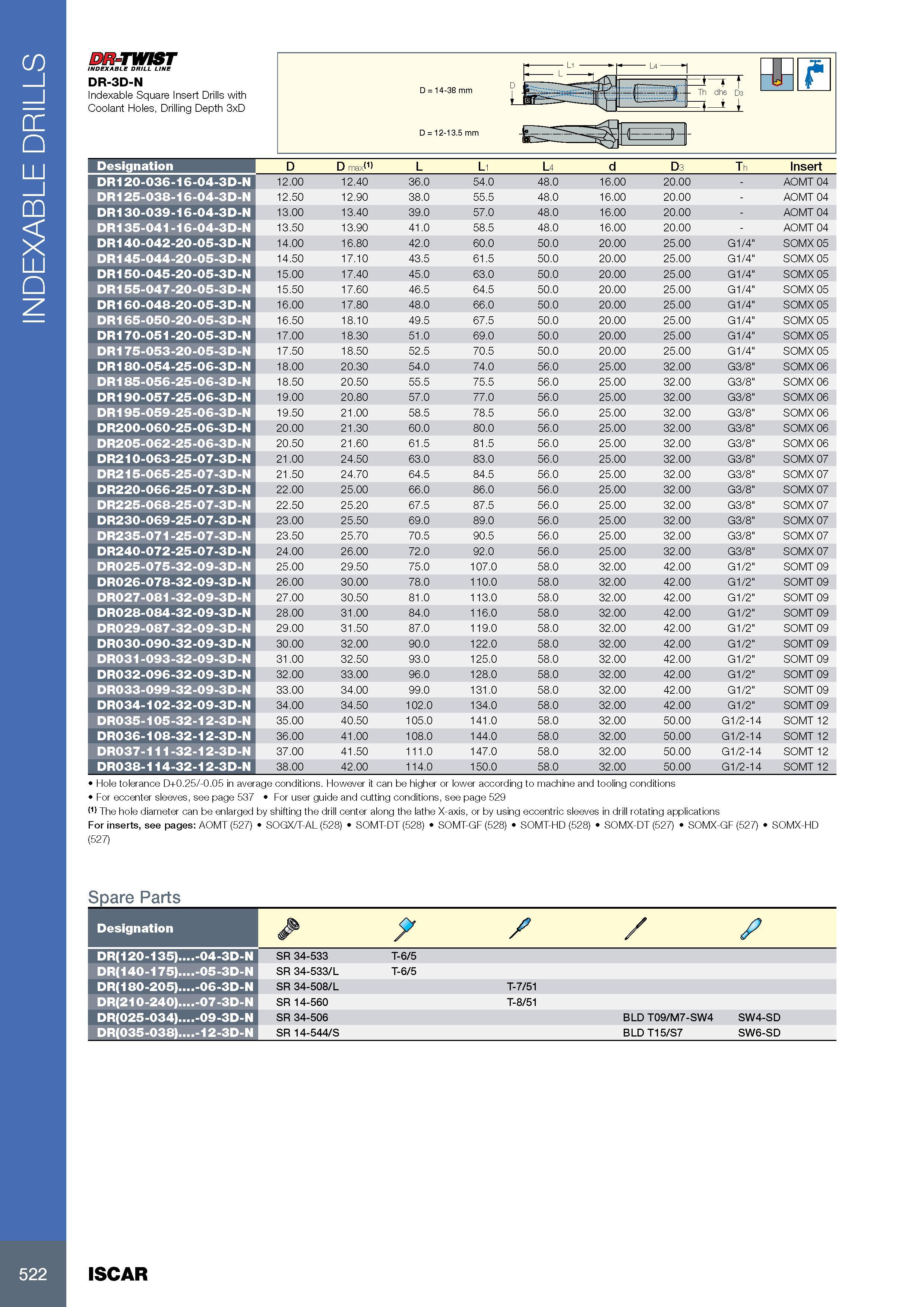

INDEXABLE DRILLS DR-TWIST INDEXABLE DRILL LINE DR-3D-N Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD Обозначение Designation D D max(1) L L1 L4 d D3 Th Insert DR120-036-16-04-3D-N 12.00 12.40 36.0 54.0 48.0 16.00 20.00 - AOMT 04 DR125-038-16-04-3D-N 12.50 12.90 38.0 55.5 48.0 16.00 20.00 - AOMT 04 DR130-039-16-04-3D-N 13.00 13.40 39.0 57.0 48.0 16.00 20.00 - AOMT 04 DR135-041-16-04-3D-N 13.50 13.90 41.0 58.5 48.0 16.00 20.00 - AOMT 04 DR140-042-20-05-3D-N 14.00 16.80 42.0 60.0 50.0 20.00 25.00 G1/4" SOMX 05 DR145-044-20-05-3D-N 14.50 17.10 43.5 61.5 50.0 20.00 25.00 G1/4" SOMX 05 DR150-045-20-05-3D-N 15.00 17.40 45.0 63.0 50.0 20.00 25.00 G1/4" SOMX 05 DR155-047-20-05-3D-N 15.50 17.60 46.5 64.5 50.0 20.00 25.00 G1/4" SOMX 05 DR160-048-20-05-3D-N 16.00 17.80 48.0 66.0 50.0 20.00 25.00 G1/4" SOMX 05 DR165-050-20-05-3D-N 16.50 18.10 49.5 67.5 50.0 20.00 25.00 G1/4" SOMX 05 DR170-051-20-05-3D-N 17.00 18.30 51.0 69.0 50.0 20.00 25.00 G1/4" SOMX 05 DR175-053-20-05-3D-N 17.50 18.50 52.5 70.5 50.0 20.00 25.00 G1/4" SOMX 05 DR180-054-25-06-3D-N 18.00 20.30 54.0 74.0 56.0 25.00 32.00 G3/8" SOMX 06 DR185-056-25-06-3D-N 18.50 20.50 55.5 75.5 56.0 25.00 32.00 G3/8" SOMX 06 DR190-057-25-06-3D-N 19.00 20.80 57.0 77.0 56.0 25.00 32.00 G3/8" SOMX 06 DR195-059-25-06-3D-N 19.50 21.00 58.5 78.5 56.0 25.00 32.00 G3/8" SOMX 06 DR200-060-25-06-3D-N 20.00 21.30 60.0 80.0 56.0 25.00 32.00 G3/8" SOMX 06 DR205-062-25-06-3D-N 20.50 21.60 61.5 81.5 56.0 25.00 32.00 G3/8" SOMX 06 DR210-063-25-07-3D-N 21.00 24.50 63.0 83.0 56.0 25.00 32.00 G3/8" SOMX 07 DR215-065-25-07-3D-N 21.50 24.70 64.5 84.5 56.0 25.00 32.00 G3/8" SOMX 07 DR220-066-25-07-3D-N 22.00 25.00 66.0 86.0 56.0 25.00 32.00 G3/8" SOMX 07 DR225-068-25-07-3D-N 22.50 25.20 67.5 87.5 56.0 25.00 32.00 G3/8" SOMX 07 DR230-069-25-07-3D-N 23.00 25.50 69.0 89.0 56.0 25.00 32.00 G3/8" SOMX 07 DR235-071-25-07-3D-N 23.50 25.70 70.5 90.5 56.0 25.00 32.00 G3/8" SOMX 07 DR240-072-25-07-3D-N 24.00 26.00 72.0 92.0 56.0 25.00 32.00 G3/8" SOMX 07 DR025-075-32-09-3D-N 25.00 29.50 75.0 107.0 58.0 32.00 42.00 G1/2" SOMT 09 DR026-078-32-09-3D-N 26.00 30.00 78.0 110.0 58.0 32.00 42.00 G1/2" SOMT 09 DR027-081-32-09-3D-N 27.00 30.50 81.0 113.0 58.0 32.00 42.00 G1/2" SOMT 09 DR028-084-32-09-3D-N 28.00 31.00 84.0 116.0 58.0 32.00 42.00 G1/2" SOMT 09 DR029-087-32-09-3D-N 29.00 31.50 87.0 119.0 58.0 32.00 42.00 G1/2" SOMT 09 DR030-090-32-09-3D-N 30.00 32.00 90.0 122.0 58.0 32.00 42.00 G1/2" SOMT 09 DR031-093-32-09-3D-N 31.00 32.50 93.0 125.0 58.0 32.00 42.00 G1/2" SOMT 09 DR032-096-32-09-3D-N 32.00 33.00 96.0 128.0 58.0 32.00 42.00 G1/2" SOMT 09 DR033-099-32-09-3D-N 33.00 34.00 99.0 131.0 58.0 32.00 42.00 G1/2" SOMT 09 DR034-102-32-09-3D-N 34.00 34.50 102.0 134.0 58.0 32.00 42.00 G1/2" SOMT 09 DR035-105-32-12-3D-N 35.00 40.50 105.0 141.0 58.0 32.00 50.00 G1/2-14 SOMT 12 DR036-108-32-12-3D-N 36.00 41.00 108.0 144.0 58.0 32.00 50.00 G1/2-14 SOMT 12 DR037-111-32-12-3D-N 37.00 41.50 111.0 147.0 58.0 32.00 50.00 G1/2-14 SOMT 12 DR038-114-32-12-3D-N 38.00 42.00 114.0 150.0 58.0 32.00 50.00 G1/2-14 SOMT 12 Hole tolerance D+0.25/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions For eccenter sleeves, see page 537 For user guide and cutting conditions, see page 529 (1) The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications For inserts, see pages: AOMT (527) SOGX/T-AL (528) SOMT-DT (528) SOMT-GF (528) SOMT-HD (528) SOMX-DT (527) SOMX-GF (527) SOMX-HD (527) Spare Parts Обозначение Designation / DR(120-135).. ..-04-3D-N SR 34-533 T-6/5 DR(140-175).. ..-05-3D-N SR 34-533/L T-6/5 DR(180-205).. ..-06-3D-N SR 34-508/L T-7/51 DR(210-240).. ..-07-3D-N SR 14-560 T-8/51 DR(025-034).. ..-09-3D-N SR 34-506 BLD T09/M7-SW4 SW4-SD DR(035-038).. ..-12-3D-N SR 14-544/S BLD T15/S7 SW6-SD 522 ISCAR
