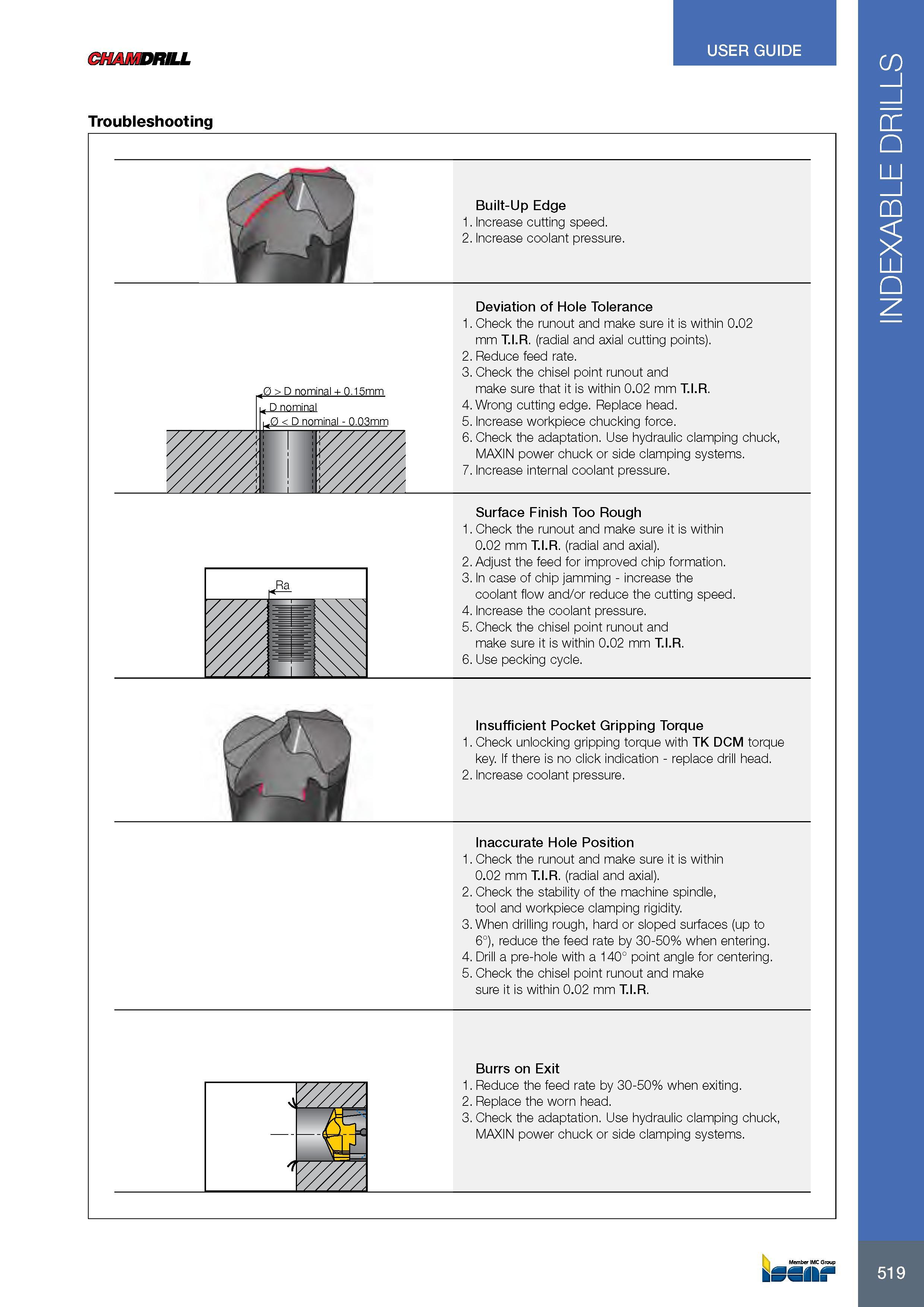

CHAMDRILL USER GUIDE Troubleshooting 0 > D nominal + 0.15mm t D nominal 1 ,0 < D nominal - 0.03mm Built-Up Edge 1. Increase cutting speed. 2. Increase coolant pressure. Deviation of Hole Tolerance 1. Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial cutting points). 2. Reduce feed rate. 3. Check the chisel point runout and make sure that it is within 0.02 mm T.I.R. 4. Wrong cutting edge. Replace head. 5. Increase workpiece chucking force. 6. Check the adaptation. Use hydraulic clamping chuck, MAXIN power chuck or side clamping systems. 7. Increase internal coolant pressure. Ra w r Surface Finish Too Rough 1. Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial). 2. Adjust the feed for improved chip formation. 3. In case of chip jamming - increase the coolant flow and/or reduce the cutting speed. 4. Increase the coolant pressure. 5. Check the chisel point runout and make sure it is within 0.02 mm T.I.R. 6. Use pecking cycle. Insufficient Pocket Gripping Torque 1. Check unlocking gripping torque with TK DCM torque key. If there is no click indication - replace drill head. 2. Increase coolant pressure. Inaccurate Hole Position 1. Check the runout and make sure it is within 0.02 mm T.I.R. (radial and axial). 2. Check the stability of the machine spindle, tool and workpiece clamping rigidity. 3. When drilling rough, hard or sloped surfaces (up to 6°), reduce the feed rate by 30-50% when entering. 4. Drill a pre-hole with a 140° point angle for centering. 5. Check the chisel point runout and make sure it is within 0.02 mm T.I.R. >4 y///A Burrs on Exit 1. Reduce the feed rate by 30-50% when exiting. 2. Replace the worn head. 3. Check the adaptation. Use hydraulic clamping chuck, MAXIN power chuck or side clamping systems. Member IMC Group kSSII t INDEXABLE DRILLS
