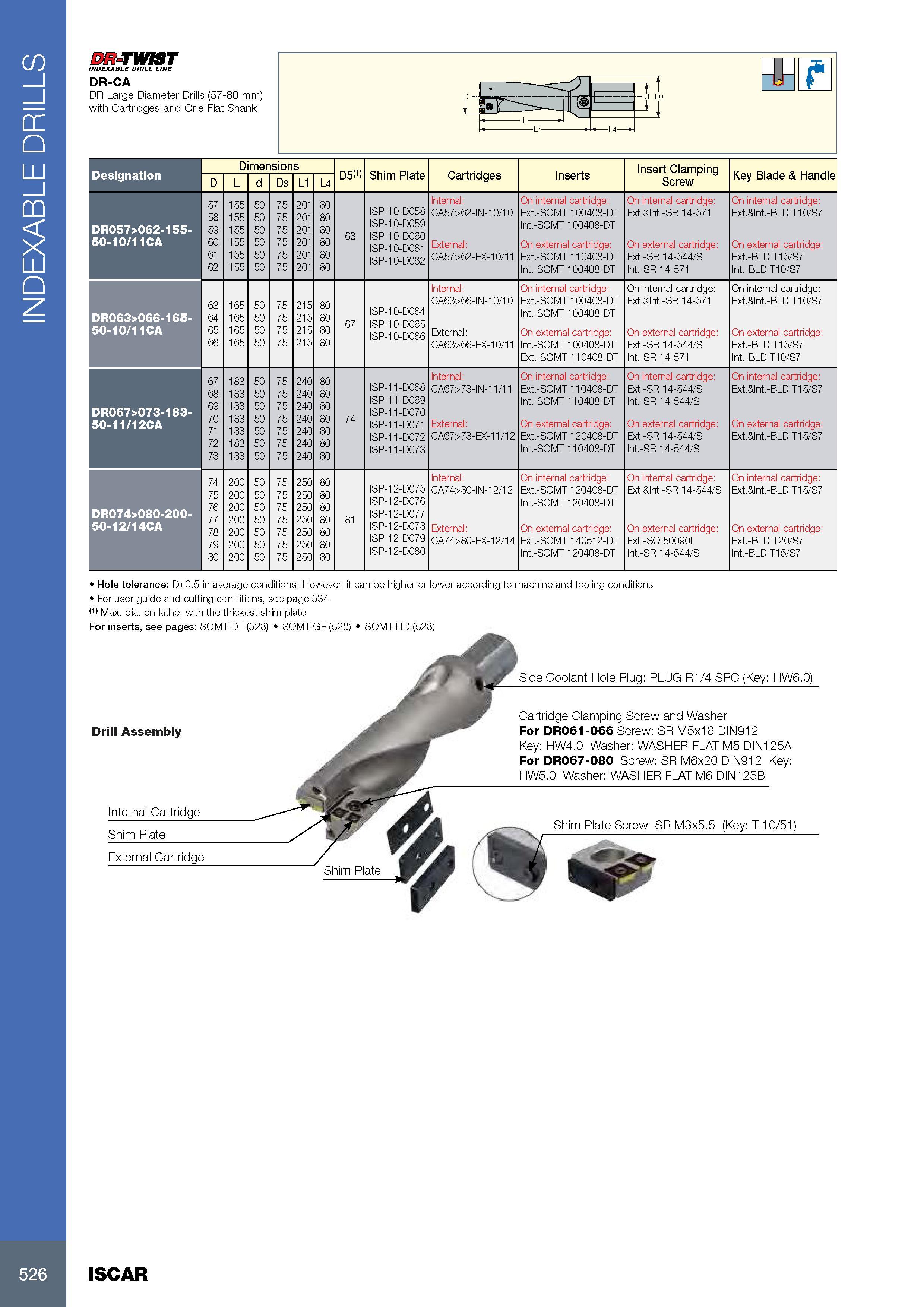

INDEXABLE DRILLS DR-TWIST INDEXABLE DRILL LINE DR-CA DR Large Diameter Drills (57-80 mm) with Cartridges and One Flat Shank Обозначение Designation DR057>062-155- 50-10/11CA DR063>066-165- 50-10/11CA DR067>073-183-50-11/12CA Размеры в мм Dimensions D L DR074>080-200- 50-12/14CA 200 200 200 200 200 200 200 D3 L1 L4 D5(1) 63 67 74 Shim Plate ISP-10-D058 ISP-10-D059 ISP-10-D060 ISP-10-D061 ISP-10-D062 ISP-10-D064 ISP-10-D065 ISP-10-D066 ISP-11-D068 ISP-11-D069 ISP-11-D070 ISP-11-D071 ISP-11-D072 ISP-11-D073 ISP-12-D075 ISP-12-D076 ISP-12-D077 ISP-12-D078 ISP-12-D079 ISP-12-D080 Cartridges Internal: CA57>62-IN-10/10 External: CA57>62-EX-10/11 Internal: CA63>66-IN-10/10 External: CA63>66-EX-10/11 Internal: CA67>73-IN-11/11 External: CA67>73-EX-11/12 Internal: CA74>80-IN-12/12 External: CA74>80-EX-12/14 Inserts Oninternal cartridge: Ext.-SOMT 100408-DT Int.-SOMT 100408-DT On external cartridge: Ext.-SOMT 110408-DT Int.-SOMT 100408-DT On internal cartridge: Ext.-SOMT 100408-DT Int.-SOMT 100408-DT On external cartridge: Int.-SOMT 100408-DT Ext.-SOMT 110408-DT On internal cartridge: Ext.-SOMT 110408-DT Int.-SOMT 110408-DT On external cartridge: Ext.-SOMT 120408-DT Int.-SOMT 110408-DT On internal cartridge: Ext.-SOMT 120408-DT Int.-SOMT 120408-DT On external cartridge: Ext.-SOMT 140512-DT Int.-SOMT 120408-DT Insert Clamping Screw On internal cartridge: Ext.&Int.-SR 14-571 On external cartridge: Ext.-SR 14-544/S Int.-SR 14-571 On internal cartridge: Ext.&Int.-SR 14-571 On external cartridge: Ext.-SR 14-544/S Int.-SR 14-571 On internal cartridge: Ext.-SR 14-544/S Int.-SR 14-544/S On external cartridge: Ext.-SR 14-544/S Int.-SR 14-544/S On internal cartridge: Ext.&Int.-SR 14-544/S On external cartridge: Ext.-SO 50090I Int.-SR 14-544/S Key Blade & Handle On internal cartridge: Ext.&Int.-BLD T10/S7 On external cartridge: Ext.-BLD T15/S7 Int.-BLD T10/S7 On internal cartridge: Ext.&Int.-BLD T10/S7 On external cartridge: Ext.-BLD T15/S7 Int.-BLD T10/S7 On internal cartridge: Ext.&Int.-BLD T15/S7 On external cartridge: Ext.&Int.-BLD T15/S7 On internal cartridge: Ext.&Int.-BLD T15/S7 On external cartridge: Ext.-BLD T20/S7 Int.-BLD T15/S7 Hole tolerance: D±0.5 in average conditions. However, it can be higher or lower according to machine and tooling conditions For user guide and cutting conditions, see page 534 (1) Max. dia. on lathe, with the thickest shim plate For inserts, see pages: SOMT-DT (528) SOMT-GF (528) SOMT-HD (528) Drill Assembly Internal Cartridge Shim Plate External Cartridge Side Coolant Hole Plug: PLUG R1/4 SPC (Key: HW6.0) Cartridge Clamping Screw and Washer For DR061-066 Screw: SR M5x16 DIN912 Key: HW4.0 Washer: WASHER FLAT M5 DIN125A For DR067-080 Screw: SR M6x20 DIN912 Key: HW5.0 Washer: WASHER FLAT M6 DIN125B Shim Plate Screw SR M3x5.5 (Key: T-10/51) d 81 526 ISCAR
