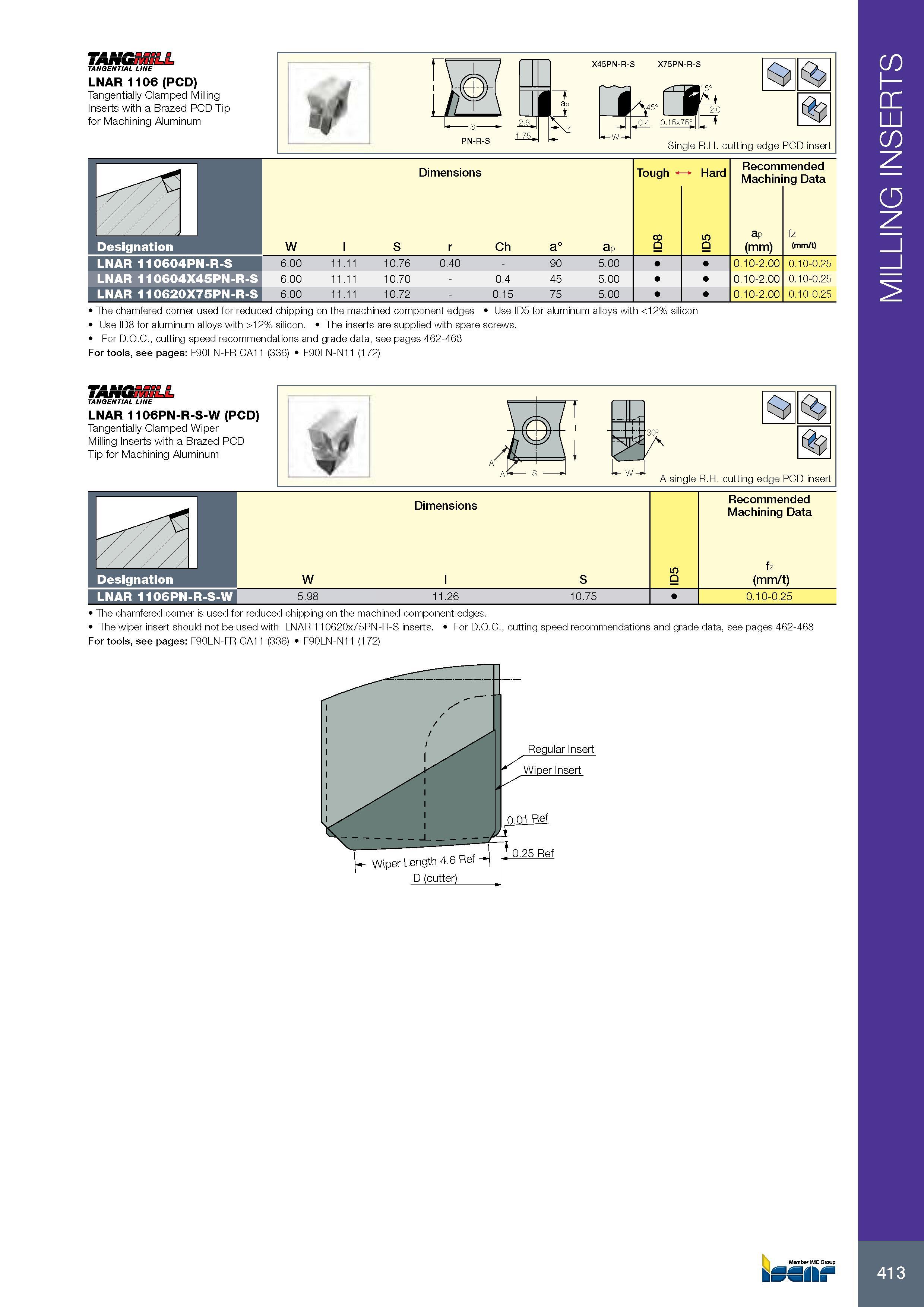

MILLING INSERTS 413 TJ WHM UNE LNAR 1106 (PCD) Tangentially Clamped Milling Inserts with a Brazed PCD Tip for Machining Aluminum 1 Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data co ID 5 ID Глубина резания в мм ap (mm) fz Обозначение Designation W l S r Ch a° ap (mm/t) LNAR 110604PN-R-S 6.00 11.11 10.76 0.40 - 90 5.00 0.10-2.00 0.10-0.25 LNAR 110604X45PN-R-S 6.00 11.11 10.70 - 0.4 45 5.00 0.10-2.00 0.10-0.25 LNAR 110620X75PN-R-S 6.00 11.11 10.72 - 0.15 75 5.00 0.10-2.00 0.10-0.25 The chamfered corner used for reduced chipping on the machined component edges Use ID5 for aluminum alloys with <12% silicon Use ID8 for aluminum alloys with >12% silicon. The inserts are supplied with spare screws. For D.O.C., cutting speed recommendations and grade data, see pages 462-468 For tools, see pages: F90LN-FR CA11 (336) F90LN-N11 (172) TANGENTIAL LINE LNAR 1106PN-R-S-W (PCD) Tangentially Clamped Wiper Milling Inserts with a Brazed PCD Tip for Machining Aluminum W A single R.H. cutting edge PCD insert Размеры в мм Dimensions Режимы резания при металлообработке Recommended Machining Data W l S ID5 Подача на зуб fz (mm/t) 5.98 11.26 10.75 1 0.10-0.25 Обозначение Designation LNAR 1106PN-R-S-W The chamfered corner is used for reduced chipping on the machined component edges. The wiper insert should not be used with LNAR 110620x75PN-R-S inserts. For D.O.C., cutting speed recommendations and grade data, see pages 462-468 For tools, see pages: F90LN-FR CA11 (336) F90LN-N11 (172) A MILLING INSERTS
