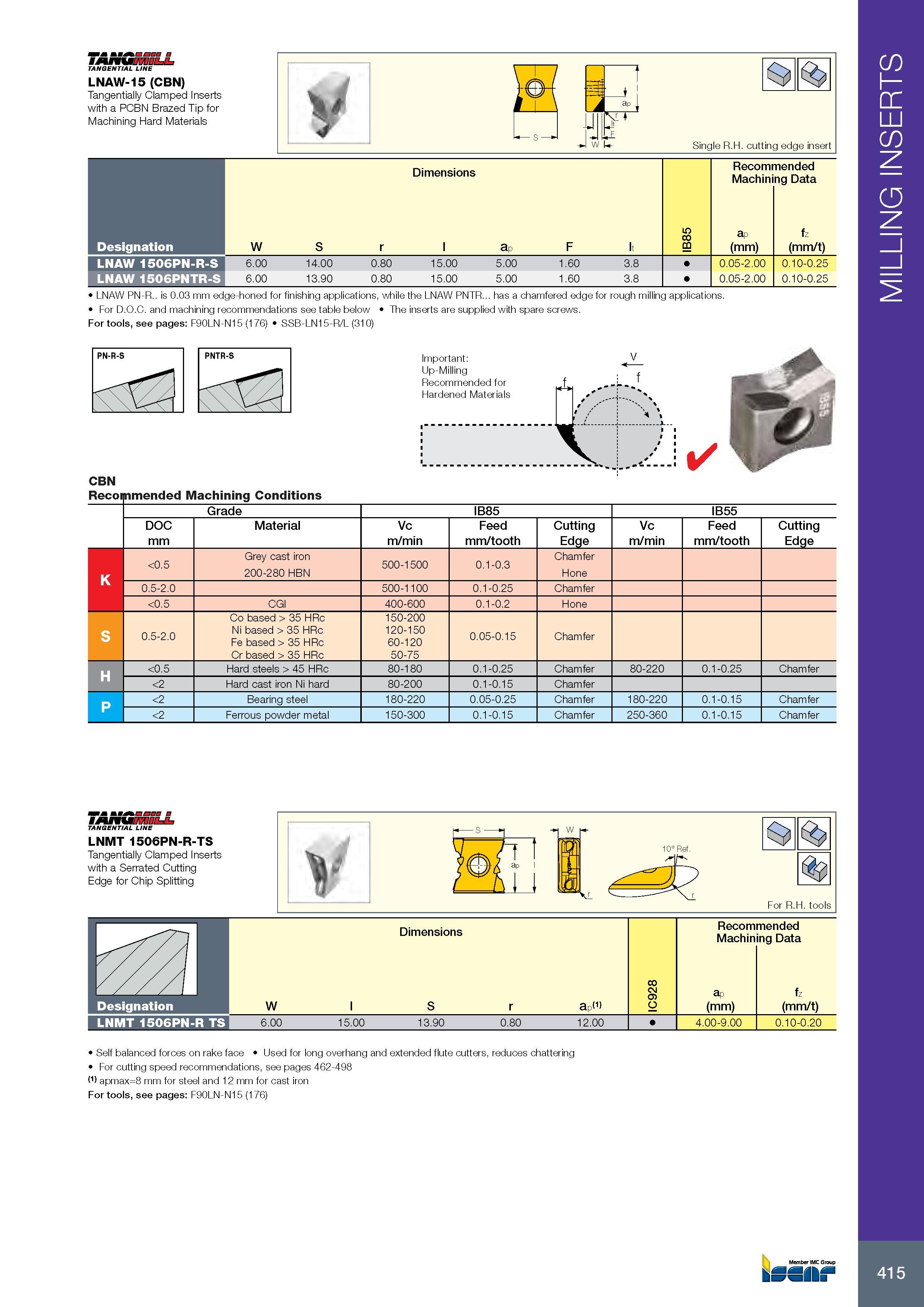

MILLING INSERTS T/ E Th UNE LNAW-15 (CBN) Tangentially Clamped Inserts with a PCBN Brazed Tip for Machining Hard Materials JJT Single R.H. cutting edge insert Размеры в мм Dimensions Режимы резания при металлообработке Recommended Machining Data Обозначение Designation W S r l ap F It IB85 Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) LNAW 1506PN-R-S 6.00 14.00 0.80 15.00 5.00 1.60 3.8 0.05-2.00 0.10-0.25 LNAW 1506PNTR-S 6.00 13.90 0.80 15.00 5.00 1.60 3.8 0.05-2.00 0.10-0.25 LNAW PN-R.. is 0.03 mm edge-honed for finishing applications, while the LNAW PNTR... has a chamfered edge for rough milling applications. For D.O.C. and machining recommendations see table below The inserts are supplied with spare screws. For tools, see pages: F90LN-N15 (176) SSB-LN15-R/L (310) Important: CBN Recommended Machining Conditions Recommended for f Hardened Materials t j L t 1 Grade 1 1 IB85 1 IB55 DOC mm Material Vc m/min Feed mm/tooth Cutting Edge Vc m/min Feed mm/tooth Cutting Edge K <0.5 Grey cast iron 200-280 HBN 500-1500 0.1-0.3 Chamfer Hone 0.5-2.0 500-1100 0.1-0.25 Chamfer <0.5 CGI 400-600 0.1-0.2 Hone S 0.5-2.0 Co based > 35 HRc Ni based > 35 HRc Fe based > 35 HRc Cr based > 35 HRc 150-200 120-150 60-120 50-75 0.05-0.15 Chamfer H <0.5 Hard steels > 45 HRc 80-180 0.1-0.25 Chamfer 80-220 0.1-0.25 Chamfer <2 Hard cast iron Ni hard 80-200 0.1-0.15 Chamfer P <2 Bearing steel 180-220 0.05-0.25 Chamfer 180-220 0.1-0.15 Chamfer <2 Ferrous powder metal 150-300 0.1-0.15 Chamfer 250-360 0.1-0.15 Chamfer LNMT 1506PN-R-TS Tangentially Clamped Inserts with a Serrated Cutting Edge for Chip Splitting Обозначение Designation LNMT 1506PN-R TS For R.H. tools Размеры в мм Dimensions Режимы резания при металлообработке Recommended Machining Data W l S r ap(1) IC928 Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) 6.00 15.00 13.90 0.80 12.00 1 1 4.00-9.00 0.10-0.20 Self balanced forces on rake face Used for long overhang and extended flute cutters, reduces chattering Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 462-498 (1) apmax=8 mm for steel and 12 mm for cast iron For tools, see pages: F90LN-N15 (176) Member IMC Group kSSII t W v MILLING INSERTS
