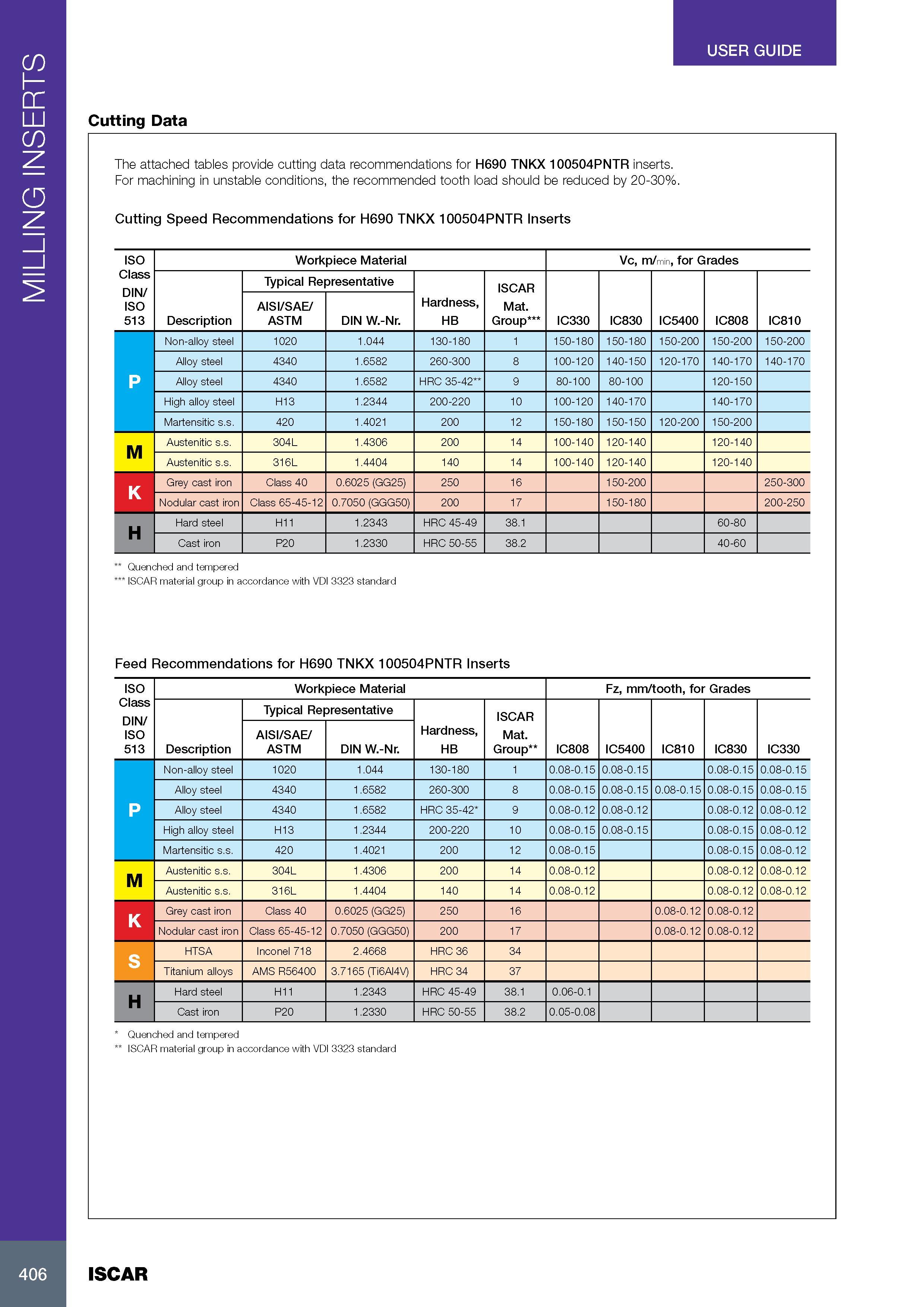

MILLING INSERTS USER GUIDE Cutting Data The attached tables provide cutting data recommendations for H690 TNKX 100504PNTR inserts. For machining in unstable conditions, the recommended tooth load should be reduced by 20-30%. Cutting Speed Recommendations for H690 TNKX 100504PNTR Inserts ISO Workpiece Material Vc, m/min, for Grades Class DIN/ ISO 513 Typical Representative ISCAR Description AISI/SAE/ ASTM DIN W.-Nr. Hardness, HB Mat. Group IC330 IC830 IC5400 IC808 IC810 Non-alloy steel 1020 1.044 130-180 1 150-180 150-180 150-200 150-200 150-200 Alloy steel 4340 1.6582 260-300 8 100-120 140-150 120-170 140-170 140-170 1 P Alloy steel 4340 1.6582 HRC 35-42 9 80-100 80-100 120-150 High alloy steel H13 1.2344 200-220 10 100-120 140-170 140-170 Martensitic s.s. 420 1.4021 200 12 150-180 150-150 120-200 150-200 M Austenitic s.s. 304L 1.4306 200 14 100-140 120-140 120-140 Austenitic s.s. 316L 1.4404 140 14 100-140 120-140 120-140 k Grey cast iron Class 40 0.6025 (GG25) 250 16 150-200 250-300 Nodular cast iron Class 65-45-12 0.7050 (GGG50) 200 17 150-180 200-250 H Hard steel H11 1.2343 HRC 45-49 38.1 60-80 Cast iron P20 1.2330 HRC 50-55 38.2 40-60 Quenched and tempered ISCAR material group in accordance with VDI 3323 standard Feed Recommendations for H690 TNKX 100504PNTR Inserts ISO Workpiece Material Fz, mm/tooth, for Grades Class DIN/ ISO 513 Typical Representative ISCAR Description AISI/SAE/ ASTM DIN W.-Nr. Hardness, HB Mat. Group IC808 IC5400 IC810 IC830 IC330 Non-alloy steel 1020 1.044 130-180 1 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 Alloy steel 4340 1.6582 260-300 8 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 1 P Alloy steel 4340 1.6582 HRC 35-42 9 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12 High alloy steel H13 1.2344 200-220 10 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.12 Martensitic s.s. 420 1.4021 200 12 0.08-0.15 0.08-0.15 0.08-0.12 M Austenitic s.s. 304L 1.4306 200 14 0.08-0.12 0.08-0.12 0.08-0.12 Austenitic s.s. 316L 1.4404 140 14 0.08-0.12 0.08-0.12 0.08-0.12 k Grey cast iron Class 40 0.6025 (GG25) 250 16 0.08-0.12 0.08-0.12 Nodular cast iron Class 65-45-12 0.7050 (GGG50) 200 17 0.08-0.12 0.08-0.12 s HTSA Inconel 718 2.4668 HRC 36 34 Titanium alloys AMS R56400 3.7165 (Ti6Al4V) HRC 34 37 H Hard steel H11 1.2343 HRC 45-49 38.1 0.06-0.1 Cast iron P20 1.2330 HRC 50-55 38.2 0.05-0.08 Quenched and tempered ISCAR material group in accordance with VDI 3323 standard 406 ISCAR
