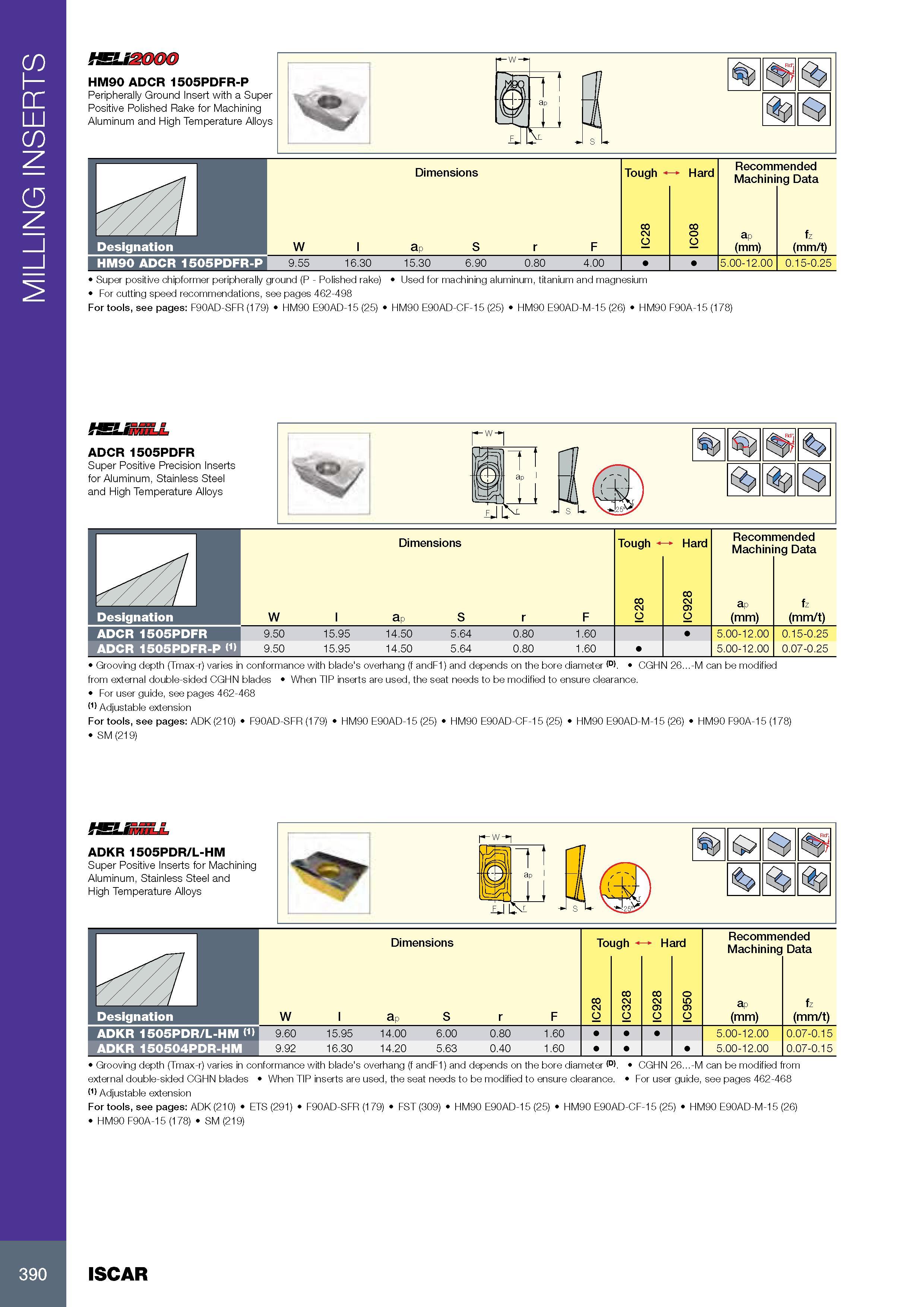

MILLING INSERTS 2SLS2000 HM90 ADCR 1505PDFR-P Peripherally Ground Insert with a Super Positive Polished Rake for Machining Aluminum and High Temperature Alloys -W- m P. 11 Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data W l ap S r F IC28 IC08 Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) 9.55 16.30 15.30 6.90 0.80 4.00 1 1 5.00-12.00 0.15-0.25 Обозначение Designation HM90 ADCR 1505PDFR-P Super positive chipformer peripherally ground (P - Polished rake) Used for machining aluminum, titanium and magnesium Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 462-498 For tools, see pages: F90AD-SFR (179) HM90 E90AD-15 (25) HM90 E90AD-CF-15 (25) HM90 E90AD-M-15 (26) HM90 F90A-15 (178) ADCR 1505PDFR Super Positive Precision Inserts for Aluminum, Stainless Steel and High Temperature Alloys Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data 7 8 2 IC IC928 Глубина резания в мм ap (mm) fz Обозначение Designation W l ap S r F (mm/t) ADCR 1505PDFR 9.50 15.95 14.50 5.64 0.80 1.60 5.00-12.00 0.15-0.25 ADCR 1505PDFR-P <1) 9.50 15.95 14.50 5.64 0.80 1.60 5.00-12.00 0.07-0.25 Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andF1) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 (1) Adjustable extension For tools, see pages: ADK (210) F90AD-SFR (179) HM90 E90AD-15 (25) HM90 E90AD-CF-15 (25) HM90 E90AD-M-15 (26) HM90 F90A-15 (178) SM (219) ADKR 1505PDR/L-HM Super Positive Inserts for Machining Aluminum, Stainless Steel and High Temperature Alloys - w- i Tt ap 1 JJ ap 1 1 "7 Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data 8 2 IC IC328 IC928 IC950 Глубина резания в мм ap (mm) fz Обозначение Designation W l ap S r F (mm/t) ADKR 1505PDR/L-HM <1) 9.60 15.95 14.00 6.00 0.80 1.60 5.00-12.00 0.07-0.15 ADKR 150504PDR-HM 9.92 16.30 14.20 5.63 0.40 1.60 5.00-12.00 0.07-0.15 Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andF1) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 (1) Adjustable extension For tools, see pages: ADK (210) ETS (291) F90AD-SFR (179) FST (309) HM90 E90AD-15 (25) HM90 E90AD-CF-15 (25) HM90 E90AD-M-15 (26) HM90 F90A-15 (178) SM (219) 390 ISCAR
