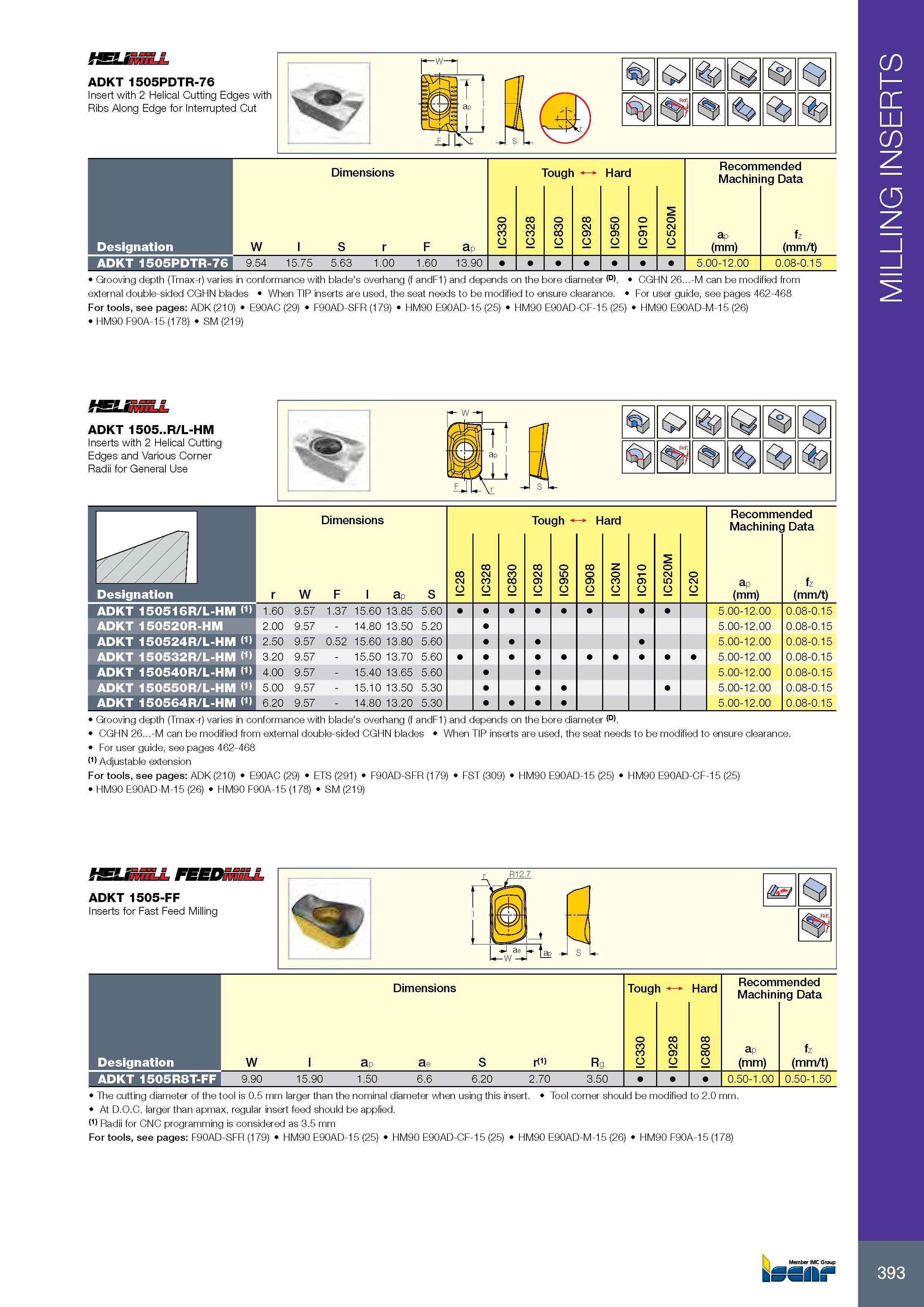

MILLING INSERTS ADKT 1505PDTR-76 Insert with 2 Helical Cutting Edges with Ribs Along Edge for Interrupted Cut Размеры в мм Dimensions Обозначение Designation W l S r F Sp IC330 IC328 IC830 IC928 IC950 IC910 IC520M sp (mm) Подача на зуб fz (mm/t) ADKT 1505PDTR-76 9.54 15.75 5.63 1.00 1.60 13.90 1 1 1 1 1 1 1 5.00-12.00 0.08-0.15 Tough Hard Режимы резания при металлообработке Recommended Machining Data Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andFI) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 For tools, see pages: ADK (210) E90AC (29) F90AD-SFR (179) HM90 E90AD-15 (25) HM90 E90AD-CF-15 (25) HM90 E90AD-M-15 (26) HM90 F90A-15 (178) SM (219) ADKT 1505..R/L-HM Inserts with 2 Helical Cutting Edges and Various Corner Radii for General Use Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data IC28 IC328 IC830 IC928 IC950 IC908 IC30N IC910 IC520M IC20 sp (mm) Подача на зуб fz (mm/t) Обозначение Designation r W F l Sp S ADKT 150516R/L-HM <1) 1.60 9.57 1.37 15.60 13.85 5.60 5.00-12.00 0.08-0.15 ADKT 150520R-HM 2.00 9.57 - 14.80 13.50 5.20 5.00-12.00 0.08-0.15 ADKT 150524R/L-HM <1) 2.50 9.57 0.52 15.60 13.80 5.60 5.00-12.00 0.08-0.15 ADKT 150532R/L-HM <1) 3.20 9.57 - 15.50 13.70 5.60 5.00-12.00 0.08-0.15 ADKT 150540R/L-HM <1) 4.00 9.57 - 15.40 13.65 5.60 5.00-12.00 0.08-0.15 ADKT 150550R/L-HM <1) 5.00 9.57 - 15.10 13.50 5.30 5.00-12.00 0.08-0.15 ADKT 150564R/L-HM <1) 6.20 9.57 - 14.80 13.20 5.30 5.00-12.00 0.08-0.15 Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andF1) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 (1) Adjustable extension For tools, see pages: ADK (210) E90AC (29) ETS (291) F90AD-SFR (179) FST (309) HM90 E90AD-15 (25) HM90 E90AD-CF-15 (25) HM90 E90AD-M-15 (26) HM90 F90A-15 (178) SM (219) SSUSSU. FEED ADKT 1505-FF Inserts for Fast Feed Milling Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data Обозначение Designation W l Sp Se S r-M) Rg IC330 IC928 IC808 sp (mm) Подача на зуб fz (mm/t) ADKT 1505R8T-FF 9.90 15.90 1.50 6.6 6.20 2.70 3.50 1 1 i 0.50-1.00 0.50-1.50 The cutting diameter of the tool is 0.5 mm larger than the nominal diameter when using this insert At D.O.C. larger than apmax, regular insert feed should be applied. (1) Radii for CNC programming is considered as 3.5 mm For tools, see pages: F90AD-SFR (179) HM90 E90AD-15 (25) HM90 E90AD-CF-15 (25) HM90 E90AD-M-15 (26) Tool corner should be modified to 2.0 mm. HM90 F90A-15 (178) Member IMC Group kSSII t S 393 MILLING INSERTS
