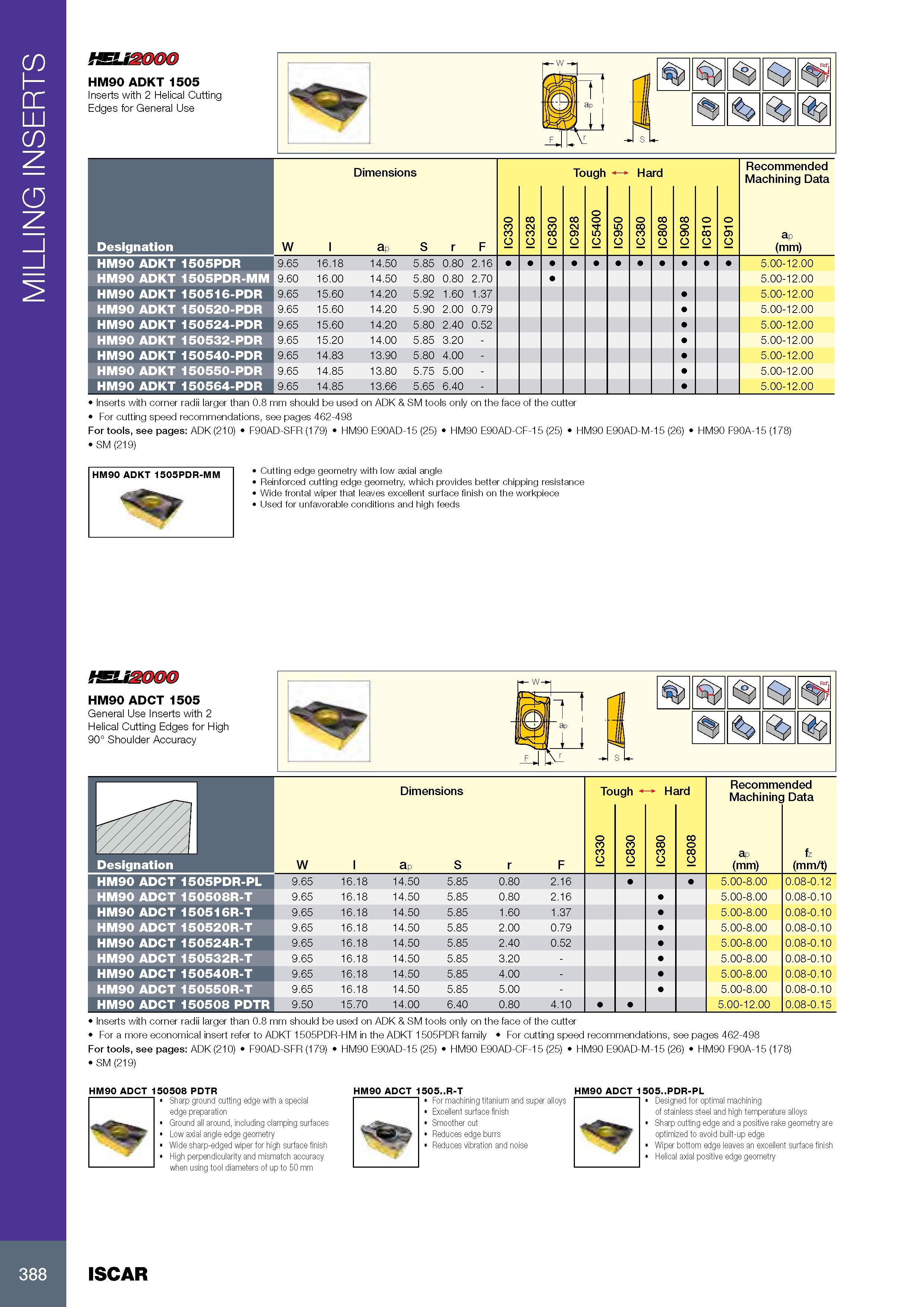

MILLING INSERTS 2SLS2000 HM90 ADKT 1505 Inserts with 2 Helical Cutting Edges for General Use Размеры в мм Dimensions Tough 1 Hard Режимы резания при металлообработке Recommended Machining Data Глубина резания в мм ap (mm) Обозначение Designation W l ap S r F IC330 IC328 IC830 IC928 IC5400 IC950 IC380 IC808 IC908 IC810 IC910 HM90 ADKT 1505PDR 9.65 16.18 14.50 5.85 0.80 2.16 5.00-12.00 HM90 ADKT 1505PDR-MM 9.60 16.00 14.50 5.80 0.80 2.70 5.00-12.00 HM90 ADKT 150516-PDR 9.65 15.60 14.20 5.92 1.60 1.37 5.00-12.00 HM90 ADKT 150520-PDR 9.65 15.60 14.20 5.90 2.00 0.79 5.00-12.00 HM90 ADKT 150524-PDR 9.65 15.60 14.20 5.80 2.40 0.52 5.00-12.00 HM90 ADKT 150532-PDR 9.65 15.20 14.00 5.85 3.20 - 5.00-12.00 HM90 ADKT 150540-PDR 9.65 14.83 13.90 5.80 4.00 - 5.00-12.00 HM90 ADKT 150550-PDR 9.65 14.85 13.80 5.75 5.00 - 5.00-12.00 HM90 ADKT 150564-PDR 9.65 14.85 13.66 5.65 6.40 - 5.00-12.00 Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 462-498 For tools, see pages: ADK (210) F90AD-SFR (179) HM90 E90AD-15 (25) HM90 E90AD-CF-15 (25) HM90 E90AD-M-15 (26) SM (219) HM90 F90A-15 (178) HM90 ADKT 1505PDR-MM Cutting edge geometry with low axial angle Reinforced cutting edge geometry, which provides better chipping resistance Wide frontal wiper that leaves excellent surface finish on the workpiece Used for unfavorable conditions and high feeds fSU2000 HM90 ADCT 1505 General Use Inserts with 2 Helical Cutting Edges for High 90° Shoulder Accuracy :L Размеры в мм Dimensions Tough i Hard Режимы резания при металлообработке Recommended Machining Data 1 IC330 IC830 IC380 IC808 Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) Обозначение Designation W l ap S r F HM90 ADCT 1505PDR-PL 9.65 16.18 14.50 5.85 0.80 2.16 5.00-8.00 0.08-0.12 HM90 ADCT 150508R-T 9.65 16.18 14.50 5.85 0.80 2.16 5.00-8.00 0.08-0.10 HM90 ADCT 150516R-T 9.65 16.18 14.50 5.85 1.60 1.37 5.00-8.00 0.08-0.10 HM90 ADCT 150520R-T 9.65 16.18 14.50 5.85 2.00 0.79 5.00-8.00 0.08-0.10 HM90 ADCT 150524R-T 9.65 16.18 14.50 5.85 2.40 0.52 5.00-8.00 0.08-0.10 HM90 ADCT 150532R-T 9.65 16.18 14.50 5.85 3.20 - 5.00-8.00 0.08-0.10 HM90 ADCT 150540R-T 9.65 16.18 14.50 5.85 4.00 - 5.00-8.00 0.08-0.10 HM90 ADCT 150550R-T 9.65 16.18 14.50 5.85 5.00 - 5.00-8.00 0.08-0.10 HM90 ADCT 150508 PDTR 9.50 15.70 14.00 6.40 0.80 4.10 5.00-12.00 0.08-0.15 Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter For a more economical insert refer to ADKT 1505PDR-HM in the ADKT 1505PDR family Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 462-498 For tools, see pages: ADK (210) F90AD-SFR (179) HM90 E90AD-15 (25) HM90 E90AD-CF-15 (25) HM90 E90AD-M-15 (26) HM90 F90A-15 (178) SM (219) HM90 ADCT 150508 PDTR Sharp ground cutting edge with a special edge preparation Ground all around, including clamping surfaces Low axial angle edge geometry Wide sharp-edged wiper for high surface finish High perpendicularity and mismatch accuracy when using tool diameters of up to 50 mm HM90 ADCT 1505..R-T For machining titanium and super alloys Excellent surface finish Smoother cut Reduces edge burrs Reduces vibration and noise HM90 ADCT 1505..PDR-PL Designed for optimal machining of stainless steel and high temperature alloys Sharp cutting edge and a positive rake geometry are optimized to avoid built-up edge Wiper bottom edge leaves an excellent surface finish Helical axial positive edge geometry 388 ISCAR
