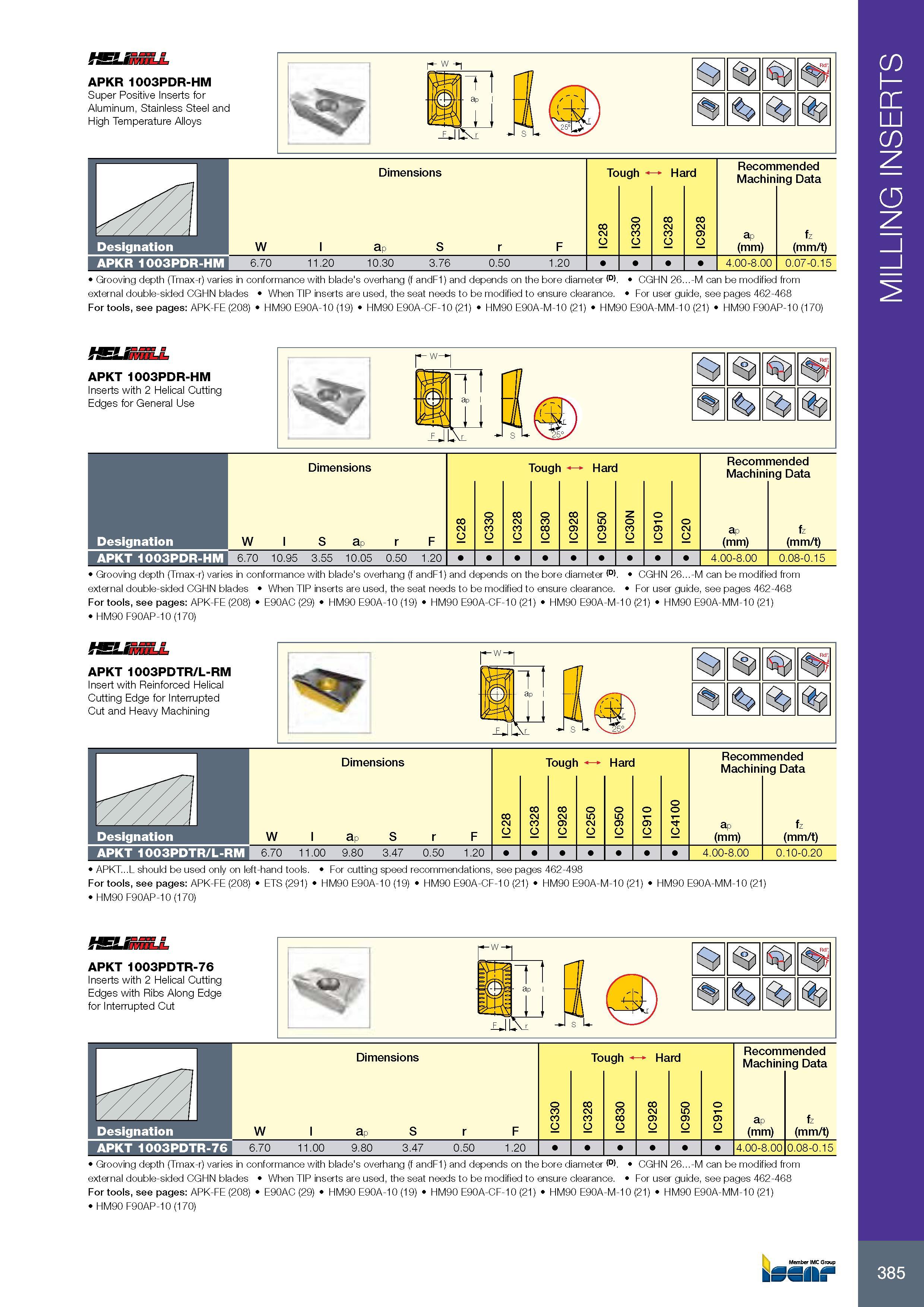

MILLING INSERTS APKR 1003PDR-HM Super Positive Inserts for Aluminum, Stainless Steel and High Temperature Alloys W - i Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data W l ap S r F IC28 IC330 IC328 IC928 Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) 6.70 11.20 10.30 3.76 0.50 1.20 4.00-8.00 0.07-0.15 Обозначение Designation APKR 1003PDR-HM Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andFI) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 For tools, see pages: APK-FE (208) HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data Обозначение Designation W l S ap r F IC28 IC330 IC328 IC830 IC928 IC950 IC30N IC910 IC20 Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) APKT 1003PDR-HM 6.70 10.95 3.55 10.05 0.50 1.20 1 1 1 1 1 1 1 1 1 4.00-8.00 0.08-0.15 Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andF1) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 For tools, see pages: APK-FE (208) E90AC (29) HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) APKT 1003PDTR/L-RM I nsert with Reinforced Helical Cutting Edge for Interrupted Cut and Heavy Machining - 5° Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data 7I W l ap S r F IC28 IC328 IC928 IC250 IC950 IC910 IC4100 Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) Обозначение Designation APKT 1003PDTR/L-RM 6.70 11.00 9.80 3.47 0.50 1.20 1 1 1 1 1 1 1 1 4.00-8.00 0.10-0.20 APKT...L should be used only on left-hand tools. Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 462-498 For tools, see pages: APK-FE (208) ETS (291) HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) S APKT 1003PDTR-76 Inserts with 2 Helical Cutting Edges with Ribs Along Edge for Interrupted Cut 1 ap i u Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data W l ap S r F IC330 IC328 IC830 IC928 IC950 IC910 Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) 6.70 11.00 9.80 3.47 0.50 1.20 1 1 1 1 1 1 4.00-8.00 0.08-0.15 Обозначение Designation APKT 1003PDTR-76 Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andF1) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 For tools, see pages: APK-FE (208) E90AC (29) HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) W 385 MILLING INSERTS
