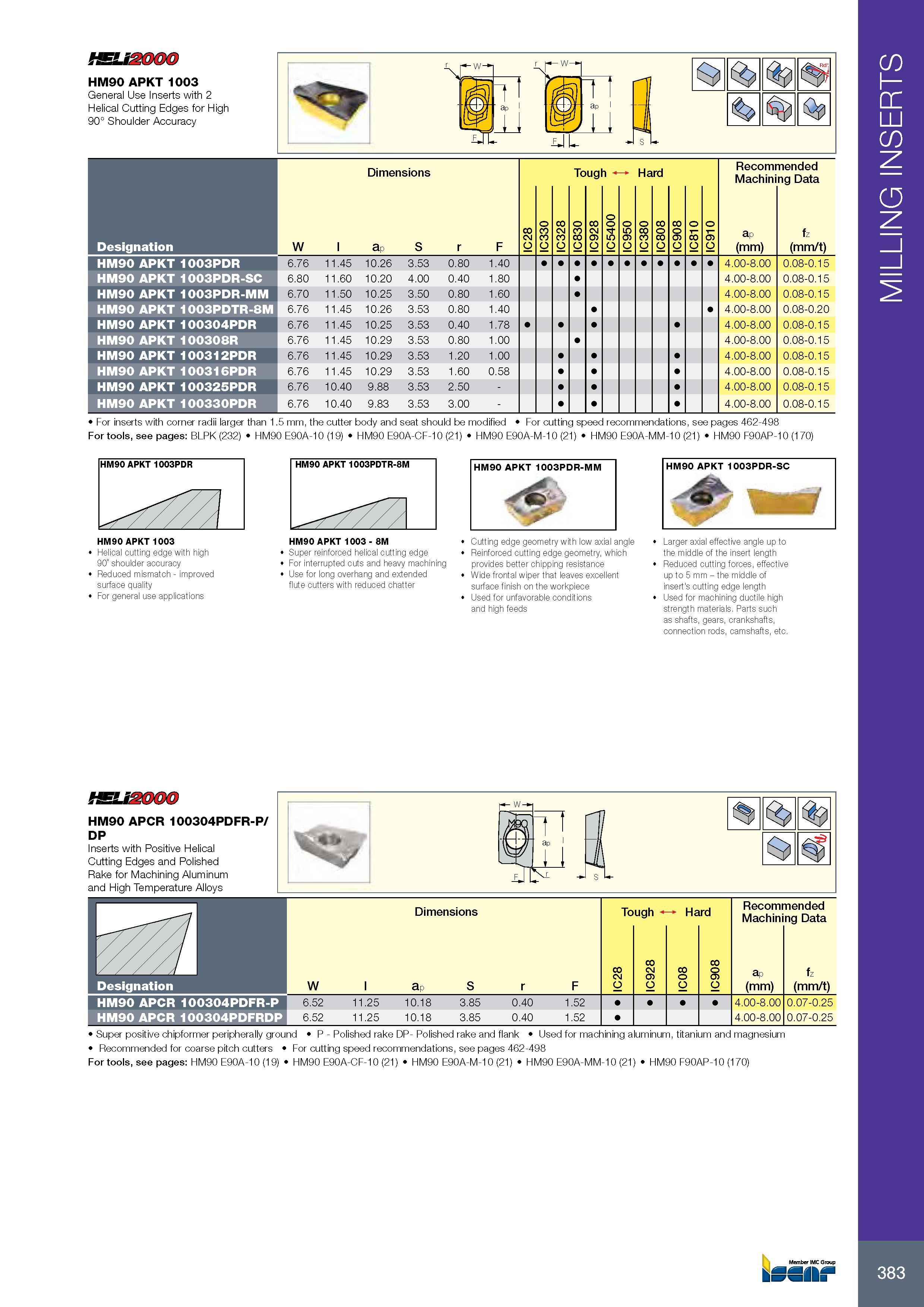

MILLING INSERTS 2SLS2000 HM90 APKT 1003 General Use Inserts with 2 Helical Cutting Edges for High 90° Shoulder Accuracy Размеры в мм Dimensions Обозначение Designation W l ap S r F 8 2 IC o IC co 2 IC o 8 IC co 2 9 IC o o m IC o m 9 IC o 8 IC co o 8 IC co o 9 IC o T- 8 IC o T- 9 IC Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) HM90 APKT 1003PDR 6.76 11.45 10.26 3.53 0.80 1.40 4.00-8.00 0.08-0.15 HM90 APKT 1003PDR-SC 6.80 11.60 10.20 4.00 0.40 1.80 4.00-8.00 0.08-0.15 HM90 APKT 1003PDR-MM 6.70 11.50 10.25 3.50 0.80 1.60 4.00-8.00 0.08-0.15 HM90 APKT 1003PDTR-8M 6.76 11.45 10.26 3.53 0.80 1.40 4.00-8.00 0.08-0.20 HM90 APKT 100304PDR 6.76 11.45 10.25 3.53 0.40 1.78 4.00-8.00 0.08-0.15 HM90 APKT 100308R 6.76 11.45 10.29 3.53 0.80 1.00 4.00-8.00 0.08-0.15 HM90 APKT 100312PDR 6.76 11.45 10.29 3.53 1.20 1.00 4.00-8.00 0.08-0.15 HM90 APKT 100316PDR 6.76 11.45 10.29 3.53 1.60 0.58 4.00-8.00 0.08-0.15 HM90 APKT 100325PDR 6.76 10.40 9.88 3.53 2.50 - 4.00-8.00 0.08-0.15 HM90 APKT 100330PDR 6.76 10.40 9.83 3.53 3.00 - 4.00-8.00 0.08-0.15 Tough Hard Режимы резания при металлообработке Recommended Machining Data For inserts with corner radii larger than 1.5 mm, the cutter body and seat should be modified Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 462-498 For tools, see pages: BLPK (232) HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) HM90 APKT 1003PDR HM90 APKT 1003PDTR-8M HM90 APKT 1003PDR-MM HM90 APKT 1003PDR-SC ’V HM90 APKT 1003 Helical cutting edge with high 90° shoulder accuracy Reduced mismatch - improved surface quality For general use applications HM90 APKT 1003 - 8M Super reinforced helical cutting edge For interrupted cuts and heavy machining Use for long overhang and extended flute cutters with reduced chatter Cutting edge geometry with low axial angle Reinforced cutting edge geometry, which provides better chipping resistance Wide frontal wiper that leaves excellent surface finish on the workpiece Used for unfavorable conditions and high feeds Larger axial effective angle up to the middle of the insert length Reduced cutting forces, effective up to 5 mm - the middle of insert's cutting edge length Used for machining ductile high strength materials. Parts such as shafts, gears, crankshafts, connection rods, camshafts, etc. fSLi2000 HM90 APCR 100304PDFR-P/ DP Inserts with Positive Helical Cutting Edges and Polished Rake for Machining Aluminum and High Temperature Alloys -"7 Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data 8 2 IC IC928 8 IC IC908 Глубина резания в мм ap (mm) fz Обозначение Designation W l ap S r F (mm/t) HM90 APCR 100304PDFR-P 6.52 11.25 10.18 3.85 0.40 1.52 4.00-8.00 0.07-0.25 HM90 APCR 100304PDFRDP 6.52 11.25 10.18 3.85 0.40 1.52 4.00-8.00 0.07-0.25 Super positive chipformer peripherally ground P - Polished rake DP- Polished rake and flank Used for machining aluminum, titanium and magnesium Recommended for coarse pitch cutters Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 462-498 For tools, see pages: HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) Member IMC Group kSSII t S 383 MILLING INSERTS
