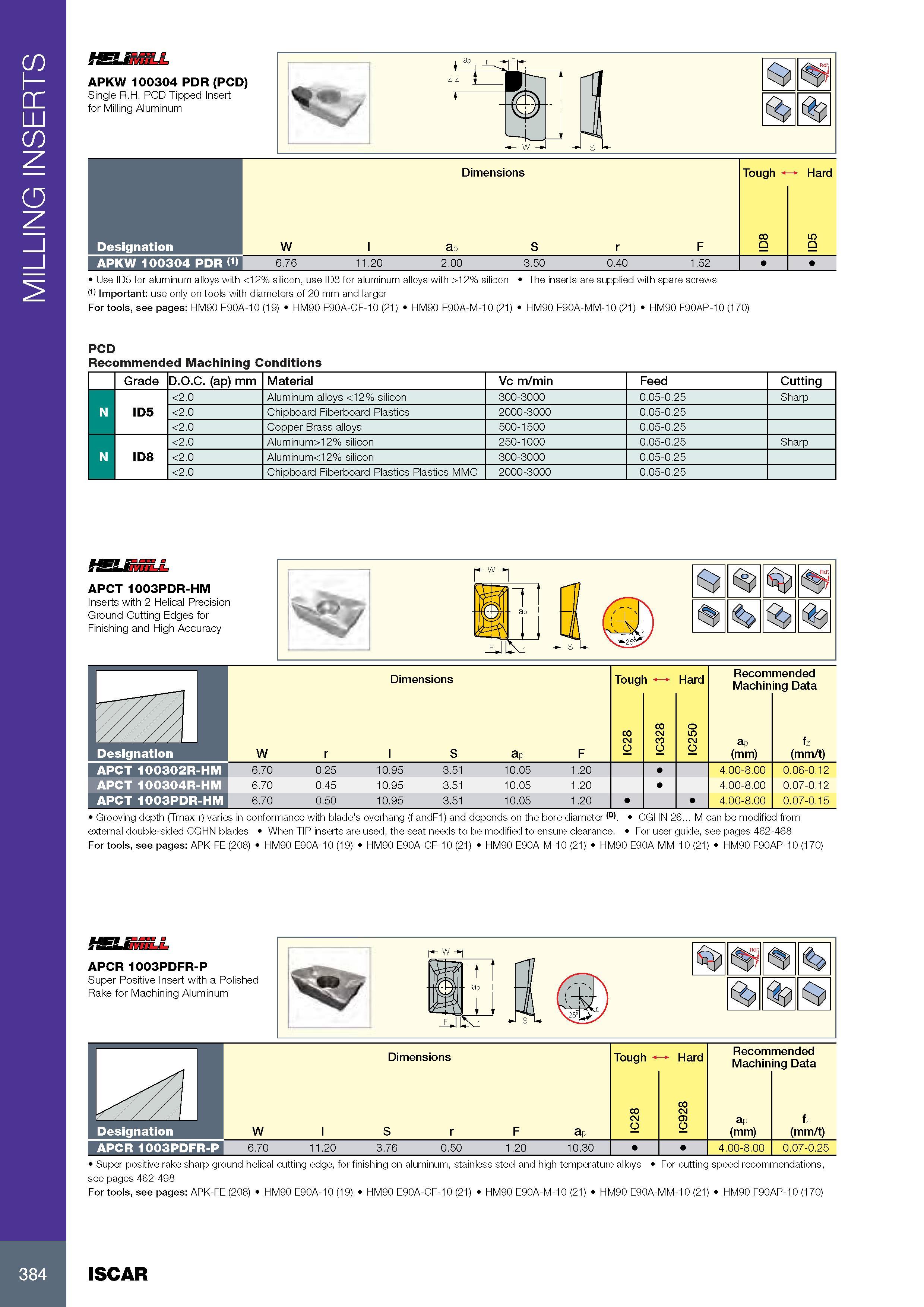

MILLING INSERTS APKW 100304 PDR (PCD) Single R.H. PCD Tipped Insert for Milling Aluminum ap r -hFk- - I s L- Размеры в мм Dimensions Tough Hard Обозначение Designation W l ap S r F 8 a m a APKW 100304 PDR <1> 6.76 11.20 2.00 3.50 0.40 1.52 Use ID5 for aluminum alloys with <12% silicon, use ID8 for aluminum alloys with >12% silicon The inserts are supplied with spare screws (1) Important: use only on tools with diameters of 20 mm and larger For tools, see pages: HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) PCD Recommended Machining Conditions Grade D.O.C. (ap) mm Material Vc m/min Feed Cutting ID5 <2.0 Aluminum alloys <12% silicon 300-3000 0.05-0.25 Sharp <2.0 Chipboard Fiberboard Plastics 2000-3000 0.05-0.25 <2.0 Copper Brass alloys 500-1500 0.05-0.25 ID8 <2.0 Aluminum>12% silicon 250-1000 0.05-0.25 Sharp <2.0 Aluminum<12% silicon 300-3000 0.05-0.25 <2.0 Chipboard Fiberboard Plastics Plastics MMC 2000-3000 0.05-0.25 W N N APCT 1003PDR-HM Inserts with 2 Helical Precision Ground Cutting Edges for Finishing and High Accuracy - W - .V 11 l\l 1 Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data 1 IC28 IC328 IC250 J= Подача на зуб fz (mm/t) Обозначение Designation W r l S ap F APCT 100302R-HM 6.70 0.25 10.95 3.51 10.05 1.20 4.00-8.00 0.06-0.12 APCT 100304R-HM 6.70 0.45 10.95 3.51 10.05 1.20 4.00-8.00 0.07-0.12 APCT 1003PDR-HM 6.70 0.50 10.95 3.51 10.05 1.20 4.00-8.00 0.07-0.15 Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andF1) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 For tools, see pages: APK-FE (208) HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) APCR 1003PDFR-P Super Positive Insert with a Polished Rake for Machining Aluminum - w - 1 ap I Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data - IC28 IC928 p m) ap (m Подача на зуб fz (mm/t) Обозначение Designation W l S r F ap APCR 1003PDFR-P 6.70 11.20 3.76 0.50 1.20 10.30 1 1 4.00-8.00 0.07-0.25 Super positive rake sharp ground helical cutting edge, for finishing on aluminum, stainless steel and high temperature alloys Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 462-498 For tools, see pages: APK-FE (208) HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) 384 ISCAR
