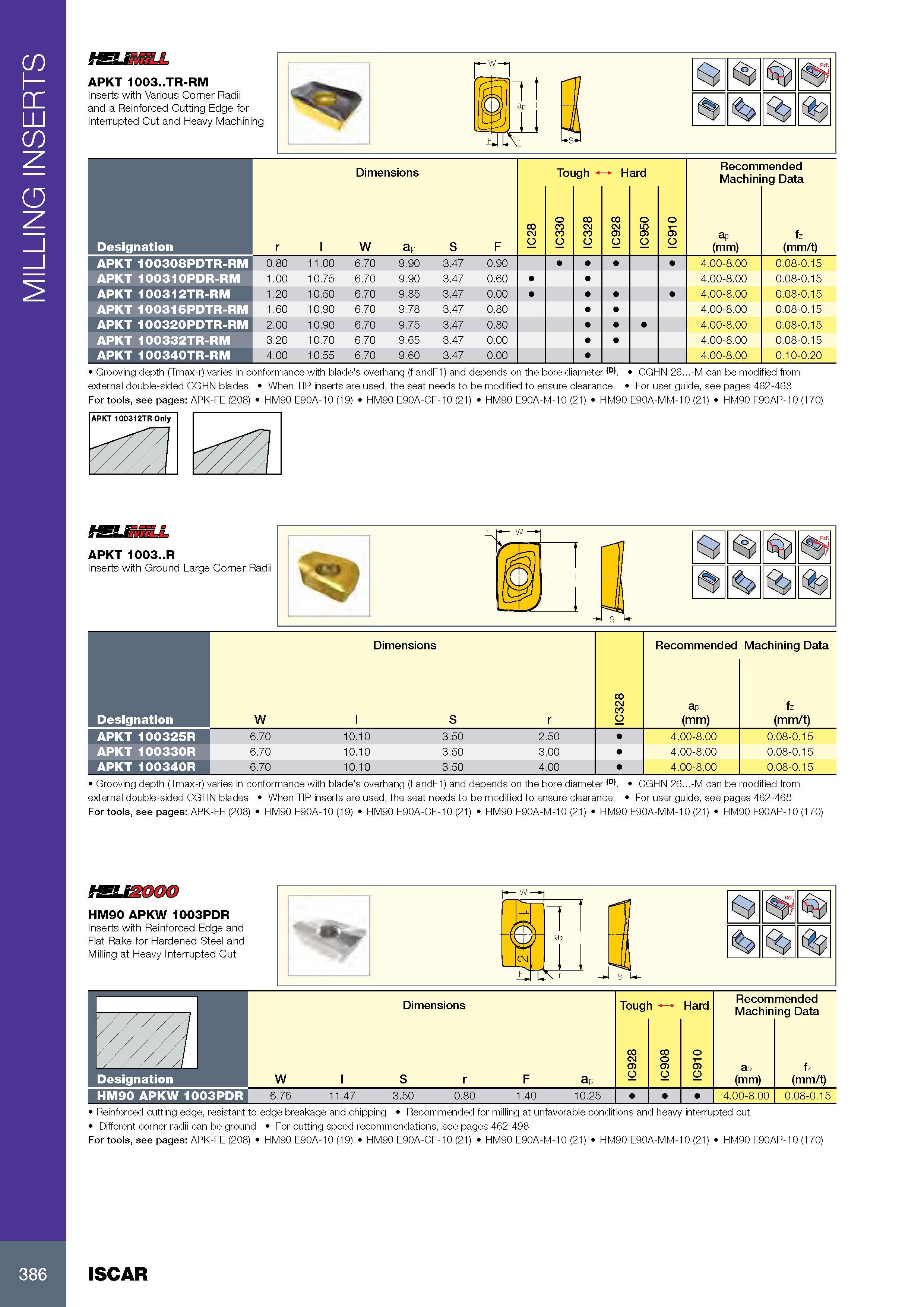

MILLING INSERTS APKT 1003..TR-RM Inserts with Various Corner Radii and a Reinforced Cutting Edge for Interrupted Cut and Heavy Machining Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data Обозначение Designation r l W ap S F IC28 IC330 IC328 IC928 IC950 IC910 Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) APKT 100308PDTR-RM 0.80 11.00 6.70 9.90 3.47 0.90 4.00-8.00 0.08-0.15 APKT 100310PDR-RM 1.00 10.75 6.70 9.90 3.47 0.60 4.00-8.00 0.08-0.15 APKT 100312TR-RM 1.20 10.50 6.70 9.85 3.47 0.00 4.00-8.00 0.08-0.15 APKT 100316PDTR-RM 1.60 10.90 6.70 9.78 3.47 0.80 4.00-8.00 0.08-0.15 APKT 100320PDTR-RM 2.00 10.90 6.70 9.75 3.47 0.80 4.00-8.00 0.08-0.15 APKT 100332TR-RM 3.20 10.70 6.70 9.65 3.47 0.00 4.00-8.00 0.08-0.15 APKT 100340TR-RM 4.00 10.55 6.70 9.60 3.47 0.00 4.00-8.00 0.10-0.20 Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andFI) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 For tools, see pages: APK-FE (208) HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) APKT 100312TR Only /"J " APKT 1003..R Inserts with Ground Large Corner Radii Размеры в мм Dimensions IC328 Режимы резания при металлообработке Recommended Machining Data Обозначение Designation W l S r Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) APKT 100325R 6.70 10.10 3.50 2.50 4.00-8.00 0.08-0.15 APKT 100330R 6.70 10.10 3.50 3.00 4.00-8.00 0.08-0.15 APKT 100340R 6.70 10.10 3.50 4.00 4.00-8.00 0.08-0.15 Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andF1) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 For tools, see pages: APK-FE (208) HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) HM90 APKW 1003PDR Inserts with Reinforced Edge and Flat Rake for Hardened Steel and Milling at Heavy Interrupted Cut Размеры в мм Dimensions Обозначение Designation HM90 APKW 1003PDR W ap 6.76 11.47 3.50 0.80 1.40 10.25 Tough 05 C 8 o 05 C Hard 05 C Режимы резания при металлообработке Recommended Machining Data Глубина резания в мм ap (mm) 4.00-8.00 Подача на зуб fz (mm/t) 0.08-0.15 Reinforced cutting edge, resistant to edge breakage and chipping Recommended for milling at unfavorable conditions and heavy interrupted cut Different corner radii can be ground Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 462-498 For tools, see pages: APK-FE (208) HM90 E90A-10 (19) HM90 E90A-CF-10 (21) HM90 E90A-M-10 (21) HM90 E90A-MM-10 (21) HM90 F90AP-10 (170) S S S S r 386 ISCAR
