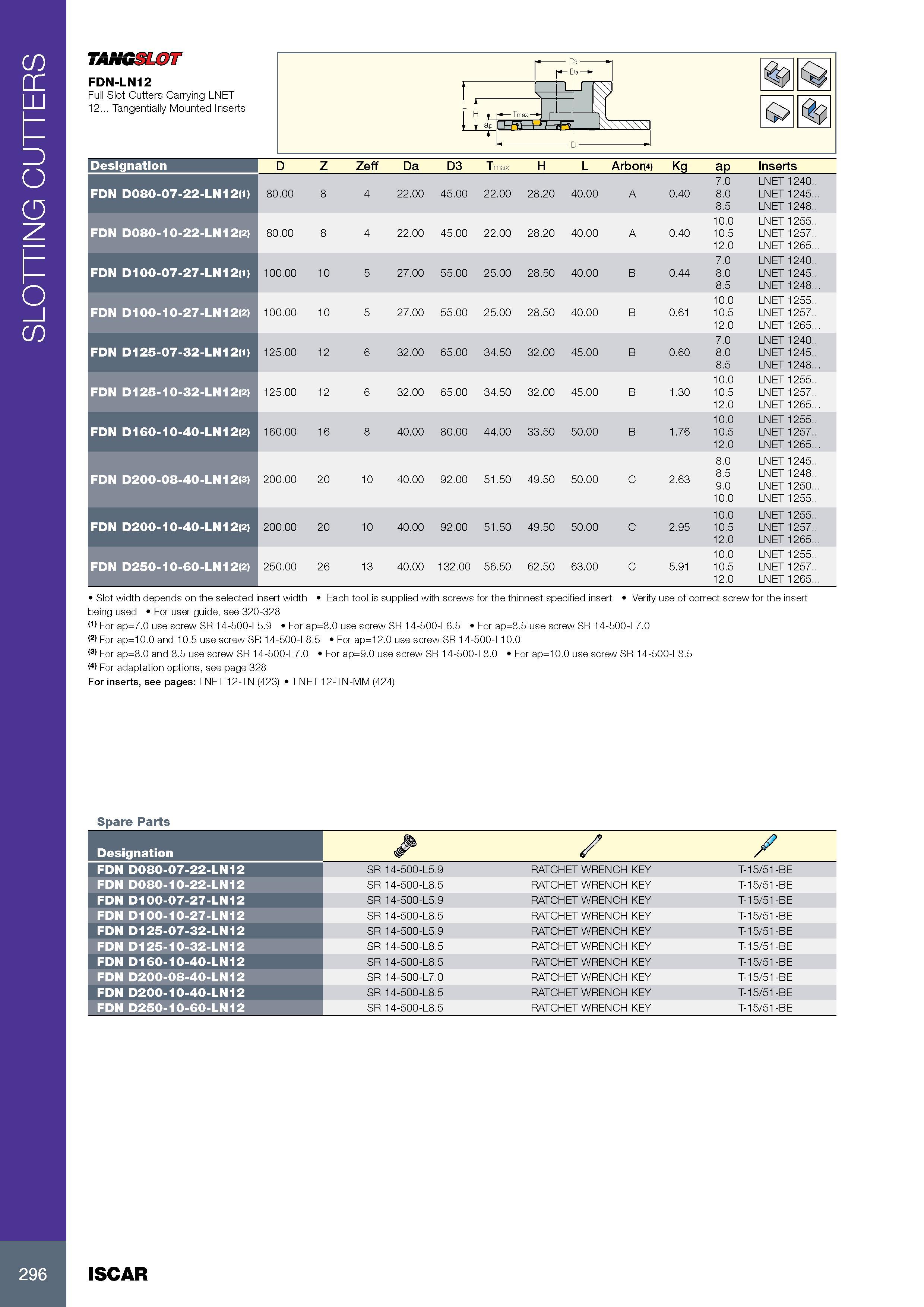

SLOTTING CUTTERS TANGSLOT FDN-LN12 Full Slot Cutters Carrying LNET 12... Tangentially Mounted Inserts Обозначение Designation D Z Zeff Da D3 Tmax H L Arbor(4) Kg ap Inserts FDN D080-07-22-LN12(i) 80.00 8 4 22.00 45.00 22.00 28.20 40.00 A 0.40 7.0 8.0 8.5 LNET 1240.. LNET 1245... LNET 1248.. FDN D080-10-22-LN12(2) 80.00 8 4 22.00 45.00 22.00 28.20 40.00 A 0.40 10.0 10.5 12.0 LNET 1255.. LNET 1257.. LNET 1265... FDN D100-07-27-LN12(1) 100.00 10 5 27.00 55.00 25.00 28.50 40.00 B 0.44 7.0 8.0 8.5 LNET 1240.. LNET 1245.. LNET 1248... FDN D100-10-27-LN12(2) 100.00 10 5 27.00 55.00 25.00 28.50 40.00 B 0.61 10.0 10.5 12.0 LNET 1255.. LNET 1257.. LNET 1265... FDN D125-07-32-LN12(1) 125.00 12 6 32.00 65.00 34.50 32.00 45.00 B 0.60 7.0 8.0 8.5 LNET 1240.. LNET 1245.. LNET 1248... FDN D125-10-32-LN12(2) 125.00 12 6 32.00 65.00 34.50 32.00 45.00 B 1.30 10.0 10.5 12.0 LNET 1255.. LNET 1257.. LNET 1265... FDN D160-10-40-LN12(2) 160.00 16 8 40.00 80.00 44.00 33.50 50.00 B 1.76 10.0 10.5 12.0 LNET 1255.. LNET 1257.. LNET 1265... 8.0 LNET 1245.. FDN D200-08-40-LN12(3) 200.00 20 10 40.00 92.00 51.50 49.50 50.00 C 2.63 8.5 9.0 10.0 LNET 1248.. LNET 1250... LNET 1255.. FDN D200-10-40-LN12(2) 200.00 20 10 40.00 92.00 51.50 49.50 50.00 C 2.95 10.0 10.5 12.0 LNET 1255.. LNET 1257.. LNET 1265... FDN D250-10-60-LN12(2) 250.00 26 13 40.00 132.00 56.50 62.50 63.00 C 5.91 10.0 10.5 12.0 LNET 1255.. LNET 1257.. LNET 1265... Slot width depends on the selected insert width Each tool is supplied with screws for the thinnest specified insert Verify use of correct screw for the insert being used For user guide, see 320-328 <1) For ap=7.0 use screw SR 14-500-L5.9 For ap=8.0 use screw SR 14-500-L6.5 For ap=8.5 use screw SR 14-500-L7.0 <2) For ap=10.0 and 10.5 use screw SR 14-500-L8.5 For ap=12.0 use screw SR 14-500-L10.0 <3) For ap=8.0 and 8.5 use screw SR 14-500-L7.0 For ap=9.0 use screw SR 14-500-L8.0 For ap=10.0 use screw SR 14-500-L8.5 <4) For adaptation options, see page 328 For inserts, see pages: LNET 12-TN (423) LNET 12-TN-MM (424) Spare Parts Обозначение Designation FDN D080-07-22-LN12 SR 14-500-L5.9 RATCHET WRENCH KEY T-15/51-BE FDN D080-10-22-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE FDN D100-07-27-LN12 SR 14-500-L5.9 RATCHET WRENCH KEY T-15/51-BE FDN D100-10-27-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE FDN D125-07-32-LN12 SR 14-500-L5.9 RATCHET WRENCH KEY T-15/51-BE FDN D125-10-32-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE FDN D160-10-40-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE FDN D200-08-40-LN12 SR 14-500-L7.0 RATCHET WRENCH KEY T-15/51-BE FDN D200-10-40-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE FDN D250-10-60-LN12 SR 14-500-L8.5 RATCHET WRENCH KEY T-15/51-BE 296 ISCAR
