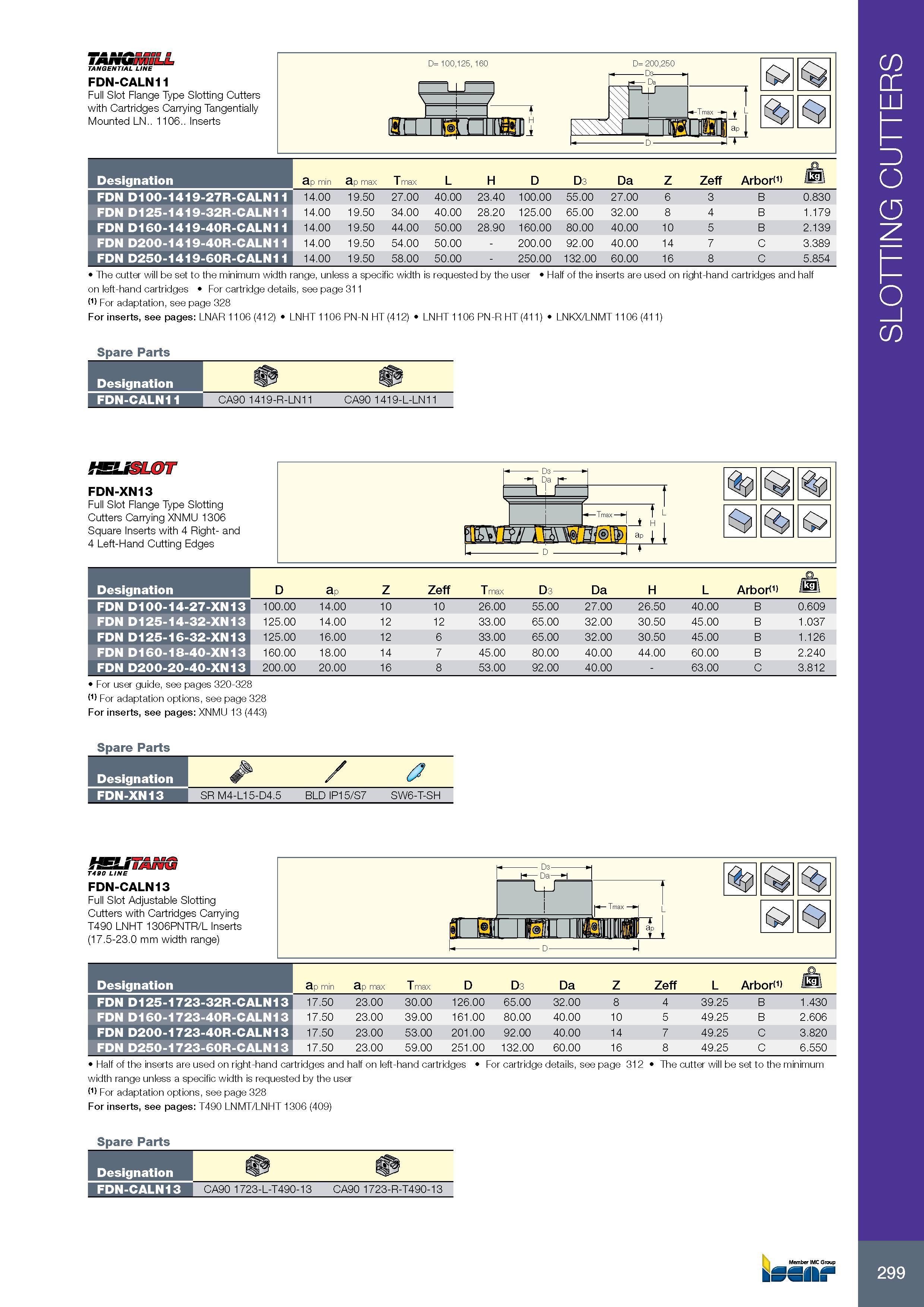

TANGENTIAL LINE FDN-CALN11 Full Slot Flange Type Slotting Cutters with Cartridges Carrying Tangentially Mounted LN.. 1106.. Inserts D= 100,125, 160 mo i Kjalmn; D= 200,250 D3 - D Обозначение Designation ap min ap max Tmax L H D D3 Da Z Zeff Arbor(1) O /kp FDN D100-1419-27R-CALN11 14.00 19.50 27.00 40.00 23.40 100.00 55.00 27.00 6 3 B 0.830 FDN D125-1419-32R-CALN11 14.00 19.50 34.00 40.00 28.20 125.00 65.00 32.00 8 4 B 1.179 FDN D160-1419-40R-CALN11 14.00 19.50 44.00 50.00 28.90 160.00 80.00 40.00 10 5 B 2.139 FDN D200-1419-40R-CALN11 14.00 19.50 54.00 50.00 - 200.00 92.00 40.00 14 7 C 3.389 FDN D250-1419-60R-CALN11 14.00 19.50 58.00 50.00 - 250.00 132.00 60.00 16 8 C 5.854 The cutter will be set to the minimum width range, unless a specific width is requested by the user Half of the inserts are used on right-hand cartridges and half on left-hand cartridges For cartridge details, see page 311 (1) For adaptation, see page 328 For inserts, see pages: LNAR 1106 (412) LNHT 1106 PN-N HT (412) LNHT 1106 PN-R HT (411) LNKX/LNMT 1106 (411) Spare Parts Обозначение Designation HI FDN-CALN11 CA90 1419-R-LN11 CA90 1419-L-LN11 fSUSLOT FDN-XN13 Full Slot Flange Type Slotting Cutters Carrying XNMU 1306 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges D ap Z Zeff Tmax D3 Da H L Arbor 100.00 14.00 10 10 26.00 55.00 27.00 26.50 40.00 B 0.609 125.00 14.00 12 12 33.00 65.00 32.00 30.50 45.00 B 1.037 125.00 16.00 12 6 33.00 65.00 32.00 30.50 45.00 B 1.126 160.00 18.00 14 7 45.00 80.00 40.00 44.00 60.00 B 2.240 200.00 20.00 16 8 53.00 92.00 40.00 - 63.00 C 3.812 For user guide, see pages 320-328 (1) For adaptation options, see page 328 For inserts, see pages: XNMU 13 (443) Обозначение Designation FDN D100-14-27-XN13 FDN D125-14-32-XN13 FDN D125-16-32-XN13 FDN D160-18-40-XN13 FDN D200-20-40-XN13 Spare Parts Обозначение Designation & / a FDN-XN13 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH f&LiljfiriG T4B0 LINE FDN-CALN13 Full Slot Adjustable Slotting Cutters with Cartridges Carrying T490 LNHT 1306PNTR/L Inserts (17.5-23.0 mm width range) Sp min Sp max T max D D3 Da Z Zeff L Arbor(1) 17.50 23.00 30.00 126.00 65.00 32.00 8 4 39.25 B 1.430 17.50 23.00 39.00 161.00 80.00 40.00 10 5 49.25 B 2.606 17.50 23.00 53.00 201.00 92.00 40.00 14 7 49.25 C 3.820 17.50 23.00 59.00 251.00 132.00 60.00 16 8 49.25 C 6.550 Half of the inserts are used on right-hand cartridges and half on left-hand cartridges For cartridge details, see page 312 The cutter will be set to the minimum width range unless a specific width is requested by the user (1) For adaptation options, see page 328 For inserts, see pages: T490 LNMT/LNHT 1306 (409) Обозначение Designation FDN D125-1723-32R-CALN13 FDN D160-1723-40R-CALN13 FDN D200-1723-40R-CALN13 FDN D250-1723-60R-CALN13 Spare Parts Обозначение Designation n FDN-CALN13 CA90 1723-L-T490-13 CA90 1723-R-T490-13 299 SLOTTING CUTTERS
