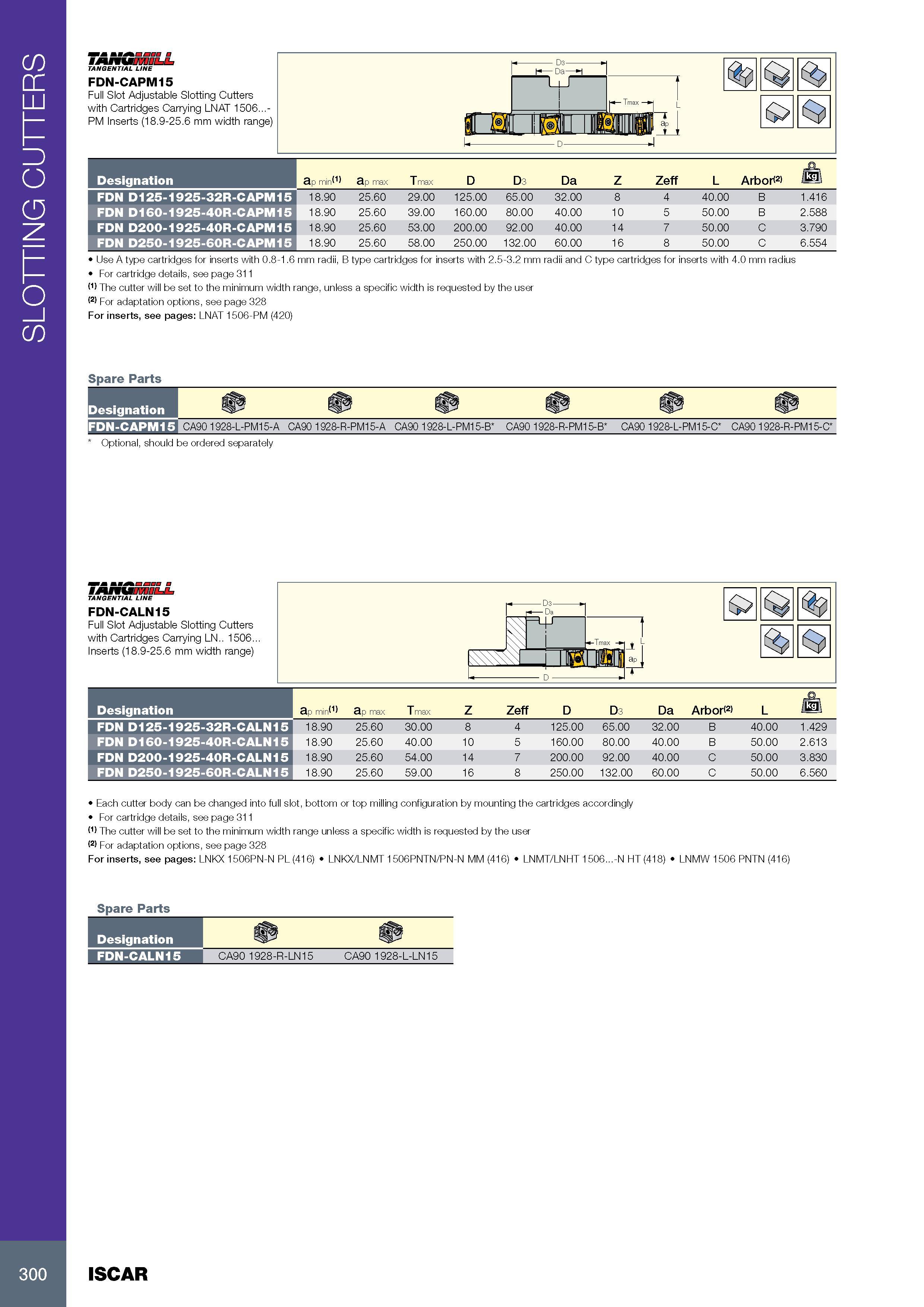

SLOTTING CUTTERS FDN-CAPM15 Full Slot Adjustable Slotting Cutters with Cartridges Carrying LNAT 1506...-PM Inserts (18.9-25.6 mm width range) Обозначение Designation ap minI1) ap max Tmax D D3 Da Z Zeff L Arbor<2> /kp FDN D125-1925-32R-CAPM15 18.90 25.60 29.00 125.00 65.00 32.00 8 4 40.00 B 1.416 FDN D160-1925-40R-CAPM15 18.90 25.60 39.00 160.00 80.00 40.00 10 5 50.00 B 2.588 FDN D200-1925-40R-CAPM15 18.90 25.60 53.00 200.00 92.00 40.00 14 7 50.00 C 3.790 FDN D250-1925-60R-CAPM15 18.90 25.60 58.00 250.00 132.00 60.00 16 8 50.00 C 6.554 Use A type cartridges for inserts with 0.8-1.6 mm radii, B type cartridges for inserts with 2.5-3.2 mm radii and C type cartridges for inserts with 4.0 mm radius For cartridge details, see page 311 11) The cutter will be set to the minimum width range, unless a specific width is requested by the user 12) For adaptation options, see page 328 For inserts, see pages: LNAT 1506-PM (420) Spare Parts Обозначение Designation HI n FDN-CAPM15 CA90 1928-L-PM15-A CA90 1 928-R-PM15-A CA90 1 928-L-PM15-B CA90 1928-R-PM15-B CA90 1928-L-PM15-C CA90 1928-R-PM15-C Optional, should be ordered separately TANGENTIAL LINE FDN-CALN15 Full Slot Adjustable Slotting Cutters with Cartridges Carrying LN.. 1506... Inserts (18.9-25.6 mm width range) Обозначение Designation ap minI1) ap max Tmax Z Zeff D D3 Da Arbor<2> L FDN D125-1925-32R-CALN15 18.90 25.60 30.00 8 4 125.00 65.00 32.00 B 40.00 1.429 FDN D160-1925-40R-CALN15 18.90 25.60 40.00 10 5 160.00 80.00 40.00 B 50.00 2.613 FDN D200-1925-40R-CALN15 18.90 25.60 54.00 14 7 200.00 92.00 40.00 C 50.00 3.830 FDN D250-1925-60R-CALN15 18.90 25.60 59.00 16 8 250.00 132.00 60.00 C 50.00 6.560 Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly For cartridge details, see page 311 11) The cutter will be set to the minimum width range unless a specific width is requested by the user 12) For adaptation options, see page 328 For inserts, see pages: LNKX 1506PN-N PL (416) LNKX/LNMT 1506PNTN/PN-N MM (416) LNMT/LNHT 1506...-N HT (418) LNMW 1506 PNTN (416) Spare Parts Обозначение Designation FDN-CALN15 CA90 1928-R-LN15 CA90 1928-L-LN15 300 ISCAR
