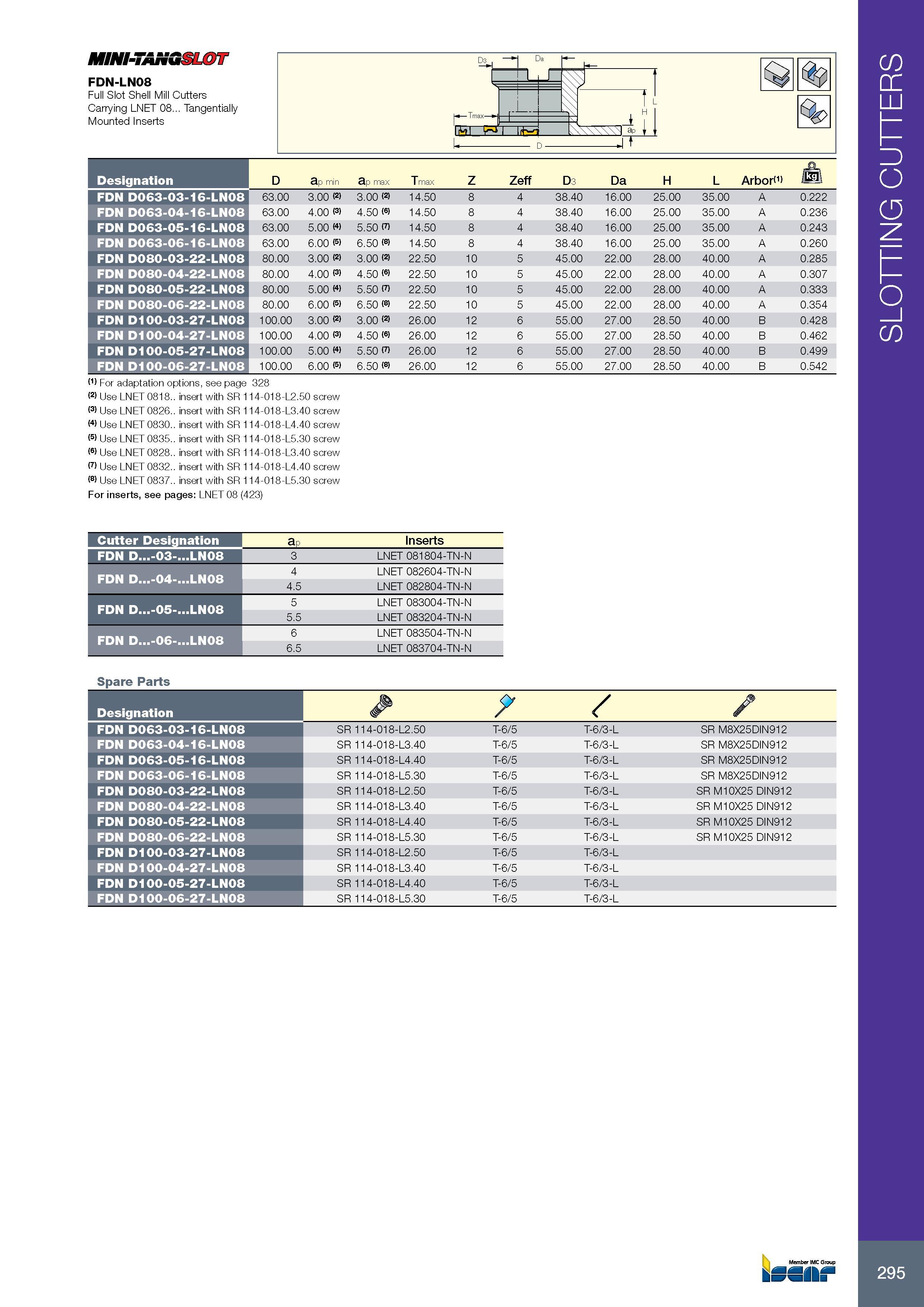

MINI-TANG FDN-LN08 Full Slot Shell Mill Cutters Carrying LNET 08... Tangentially Mounted Inserts Обозначение Designation D Sp min Sp max Tmax Z Zeff D3 Da H L Arbors FDN D063-03-16-LN08 63.00 3.00 <2> 3.00 (2) 14.50 8 4 38.40 16.00 25.00 35.00 A 0.222 FDN D063-04-16-LN08 63.00 4.00 (3) 4.50 14.50 8 4 38.40 16.00 25.00 35.00 A 0.236 FDN D063-05-16-LN08 63.00 5.00 (4) 5.50 (7) 14.50 8 4 38.40 16.00 25.00 35.00 A 0.243 FDN D063-06-16-LN08 63.00 6.00 6.50 (8) 14.50 8 4 38.40 16.00 25.00 35.00 A 0.260 FDN D080-03-22-LN08 80.00 3.00 <2> 3.00 (2) 22.50 10 5 45.00 22.00 28.00 40.00 A 0.285 FDN D080-04-22-LN08 80.00 4.00 (3) 4.50 (6) 22.50 10 5 45.00 22.00 28.00 40.00 A 0.307 FDN D080-05-22-LN08 80.00 5.00 (4) 5.50 (7) 22.50 10 5 45.00 22.00 28.00 40.00 A 0.333 FDN D080-06-22-LN08 80.00 6.00 6.50 (8) 22.50 10 5 45.00 22.00 28.00 40.00 A 0.354 FDN D100-03-27-LN08 100.00 3.00 (2) 3.00 (2) 26.00 12 6 55.00 27.00 28.50 40.00 B 0.428 FDN D100-04-27-LN08 100.00 4.00 (3) 4.50 26.00 12 6 55.00 27.00 28.50 40.00 B 0.462 FDN D100-05-27-LN08 100.00 5.00 (4) 5.50 (7) 26.00 12 6 55.00 27.00 28.50 40.00 B 0.499 FDN D100-06-27-LN08 100.00 6.00 6.50 (8) 26.00 12 6 55.00 27.00 28.50 40.00 B 0.542 (1) For adaptation options, see page 328 (2) Use LNET 0818.. insert with SR 114-018-L2.50 screw <3> Use LNET 0826.. insert with SR 114-018-L3.40 screw (4) Use LNET 0830.. insert with SR 114-018-L4.40 screw (5) Use LNET 0835.. insert with SR 114-018-L5.30 screw (6) Use LNET 0828.. insert with SR 114-018-L3.40 screw (7) Use LNET 0832.. insert with SR 114-018-L4.40 screw (8) Use LNET 0837.. insert with SR 114-018-L5.30 screw For inserts, see pages: LNET 08 (423) ap Inserts FDN D.. .-03-. ..LN08 3 LNET 081804-TN-N FDN D.. - o ..LN08 4 LNET 082604-TN-N 4.5 LNET 082804-TN-N FDN D.. - o 5 ..LN08 5 LNET 083004-TN-N 5.5 LNET 083204-TN-N FDN D.. - o 0) ..LN08 6 LNET 083504-TN-N 6.5 LNET 083704-TN-N Spare Parts Обозначение Designation FDN D063-03-16-LN08 SR 114-018-L2.50 T-6/5 T-6/3-L SR M8X25DIN912 FDN D063-04-16-LN08 SR 114-018-L3.40 T-6/5 T-6/3-L SR M8X25DIN912 FDN D063-05-16-LN08 SR 114-018-L4.40 T-6/5 T-6/3-L SR M8X25DIN912 FDN D063-06-16-LN08 SR 114-018-L5.30 T-6/5 T-6/3-L SR M8X25DIN912 FDN D080-03-22-LN08 SR 114-018-L2.50 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D080-04-22-LN08 SR 114-018-L3.40 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D080-05-22-LN08 SR 114-018-L4.40 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D080-06-22-LN08 SR 114-018-L5.30 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D100-03-27-LN08 SR 114-018-L2.50 T-6/5 T-6/3-L FDN D100-04-27-LN08 SR 114-018-L3.40 T-6/5 T-6/3-L FDN D100-05-27-LN08 SR 114-018-L4.40 T-6/5 T-6/3-L FDN D100-06-27-LN08 SR 114-018-L5.30 T-6/5 T-6/3-L 295 SLOTTING CUTTERS
