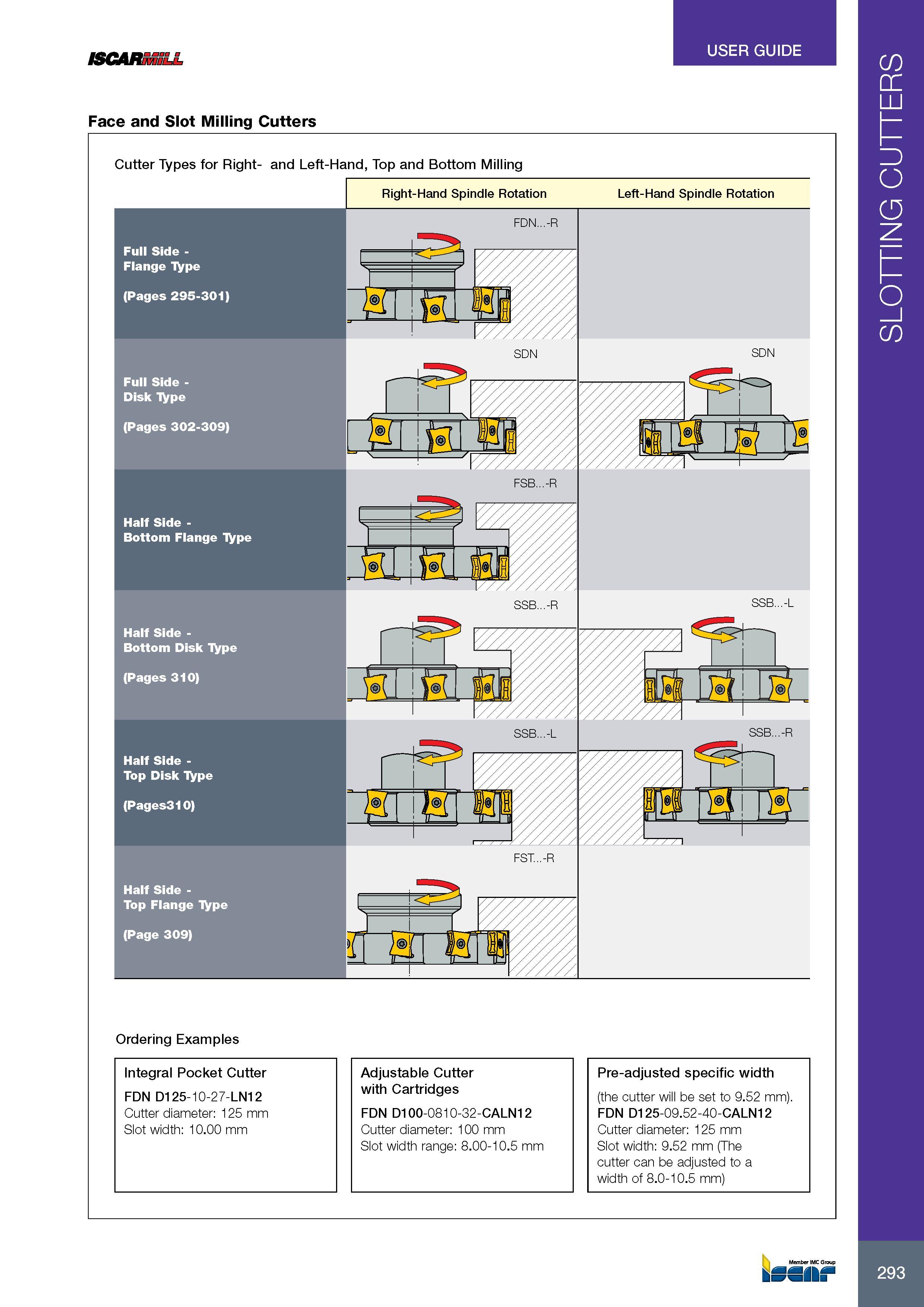

ISCARMILL USER GUIDE Face and Slot Milling Cutters Cutter Types for Right- and Left-Hand, Top and Bottom Milling Full Side -Flange Type (Pages 295-301) Full Side -Disk Type (Pages 302-309) Half Side -Bottom Flange Type Half Side -Bottom Disk Type (Pages 310) Half Side -Top Disk Type (Pages310) Half Side -Top Flange Type (Page 309) Ordering Examples Integral Pocket Cutter FDN D125-10-27-LN12 Cutter diameter: 125 mm Slot width: 10.00 mm Adjustable Cutter with Cartridges FDN D100-0810-32-CALN12 Cutter diameter: 100 mm Slot width range: 8.00-10.5 mm Pre-adjusted specific width (the cutter will be set to 9.52 mm). FDN D125-09.52-40-CALN12 Cutter diameter: 125 mm Slot width: 9.52 mm (The cutter can be adjusted to a width of 8.0-10.5 mm) Member IMC Group kssi SLOTTING CUTTERS
