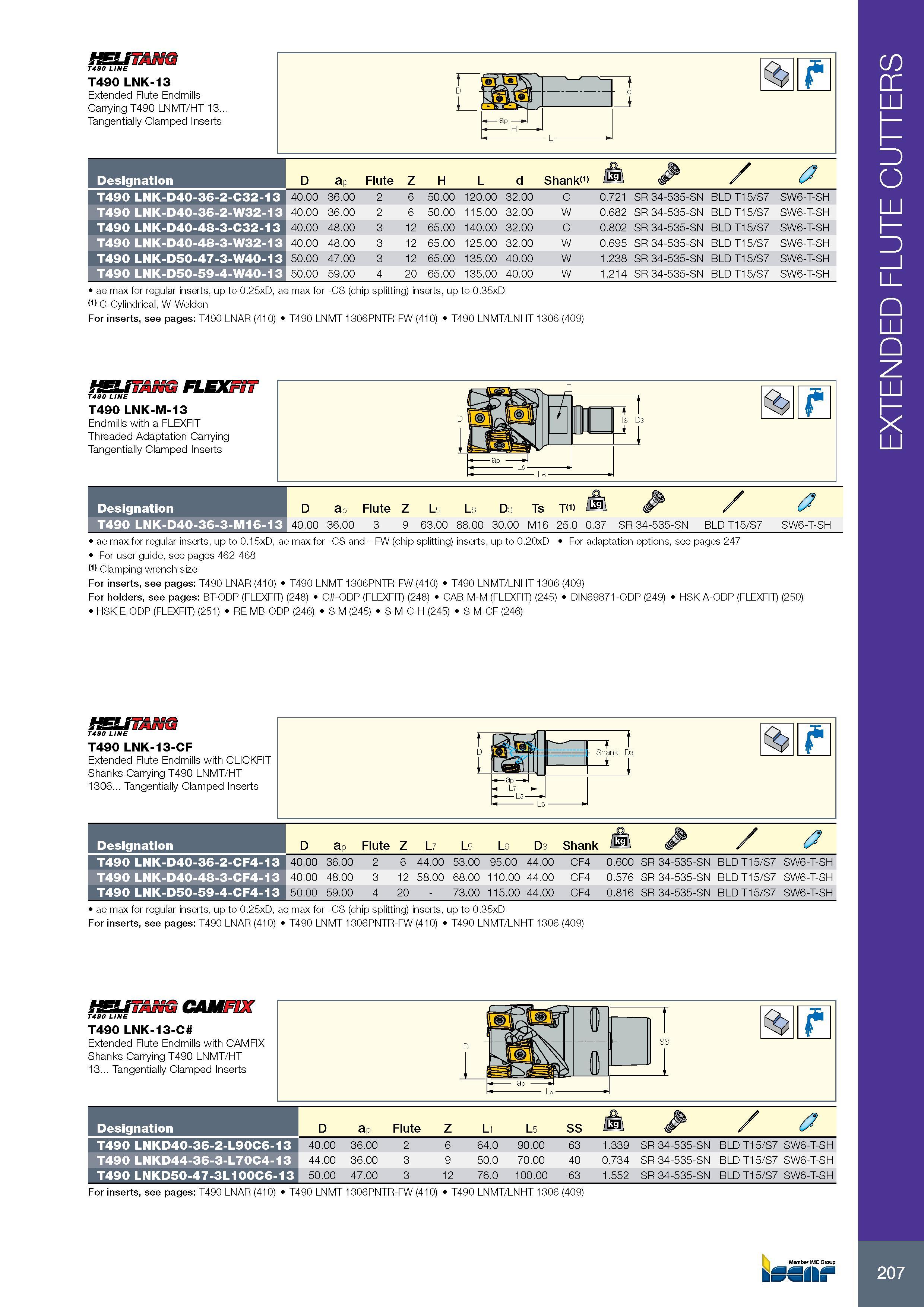

Фрезерный инструмент Iscar с твердосплавными режущими пластинами Длиннокромочные кукурузные фрезы Эскиз с основными размерами Обозначение Комплектующие T4B0

Фрезерный инструмент Iscar с твердосплавными режущими пластинами Длиннокромочные кукурузные фрезы Эскиз с основными размерами Обозначение Комплектующие T4B0 LINE T490 LNK-13 Extended Flute Endmills Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts Обозначение Designation D ap Flute Z H L d Shank<1> jOl /k i\ / 0 T490 LNK-D40-36-2-C32-13 40.00 36.00 2 6 50.00 120.00 32.00 C 0.721 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D40-36-2-W32-13 40.00 36.00 2 6 50.00 115.00 32.00 W 0.682 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D40-48-3-C32-13 40.00 48.00 3 12 65.00 140.00 32.00 C 0.802 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D40-48-3-W32-13 40.00 48.00 3 12 65.00 125.00 32.00 W 0.695 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D50-47-3-W40-13 50.00 47.00 3 12 65.00 135.00 40.00 W 1.238 SR 34-535-SN BLD T15/S7 SW6-T-SH T490 LNK-D50-59-4-W40-13 50.00 59.00 4 20 65.00 135.00 40.00 W 1.214 SR 34-535-SN BLD T15/S7 SW6-T-SH ae max for regular inserts, up to 0.25xD, ae max for -CS (chip splitting) inserts, up to 0.35xD (1> Тип хвостовика инструмента C-Cylindrical (цилиндрический) W-Weldon For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409) HEUTAHG FLEXFiT T490 LINE T490 LNK-M-13 Endmills with a FLEXFIT Threaded Adaptation Carrying Tangentially Clamped Inserts Ts D3 i Обозначение Designation D ap Flute Z L5 L6 D3 Ts T <1> (S) lm / 0 T490 LNK-D40-36-3-M16-13 40.00 36.00 3 9 63.00 88.00 30.00 M16 25.0 0.37 SR 34-535-SN BLD T15/S7 SW6-T-SH ae max for regular inserts, up to 0.15xD, ae max for -CS and - FW (chip splitting) inserts, up to 0.20xD For adaptation options, see pages 247 For user guide, see pages 462-468 (1> Clamping wrench size For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409) For holders, see pages: BT-ODP (FLEXFIT) (248) C -ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246) fSLiTANG T490 LINE T490 LNK-13-CF Extended Flute Endmills with CLICKFIT Shanks Carrying T490 LNMT/HT 1306... Tangentially Clamped Inserts Обозначение Designation T490 LNK-D40-36-2-CF4-13 T490 LNK-D40-48-3-CF4-13 T490 LNK-D50-59-4-CF4-13 ae max for regular inserts, up to 0.25xD, ae max for -CS (chip splitting) inserts, up to 0.35xD For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409) 40.00 36.00 40.00 48.00 50.00 59.00 6 44.00 12 58.00 20 - 53.00 95.00 44.00 68.00 110.00 44.00 73.00 115.00 44.00 CF4 CF4 CF4 0.600 SR 34-535-SN BLD T15/S7 SW6-T-SH 0.576 SR 34-535-SN BLD T15/S7 SW6-T-SH 0.816 SR 34-535-SN BLD T15/S7 SW6-T-SH 2SBJTANG GAMFHX T490 LINE T490 LNK-13-C Extended Flute Endmills with CAMFIX Shanks Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts D ap Flute Z L1 L5 SS f 0 40.00 36.00 2 6 64.0 90.00 63 1.339 SR 34-535-SN BLD T15/S7 SW6-T-SH 44.00 36.00 3 9 50.0 70.00 40 0.734 SR 34-535-SN BLD T15/S7 SW6-T-SH 50.00 47.00 3 12 76.0 100.00 63 1.552 SR 34-535-SN BLD T15/S7 SW6-T-SH For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409) Обозначение Designation T490 LNKD40-36-2-L90C6-13 T490 LNKD44-36-3-L70C4-13 T490 LNKD50-47-3L100C6-13 ll S f8 D o S L ap J U L5 EXTENDED FLUTE CUTTERS
