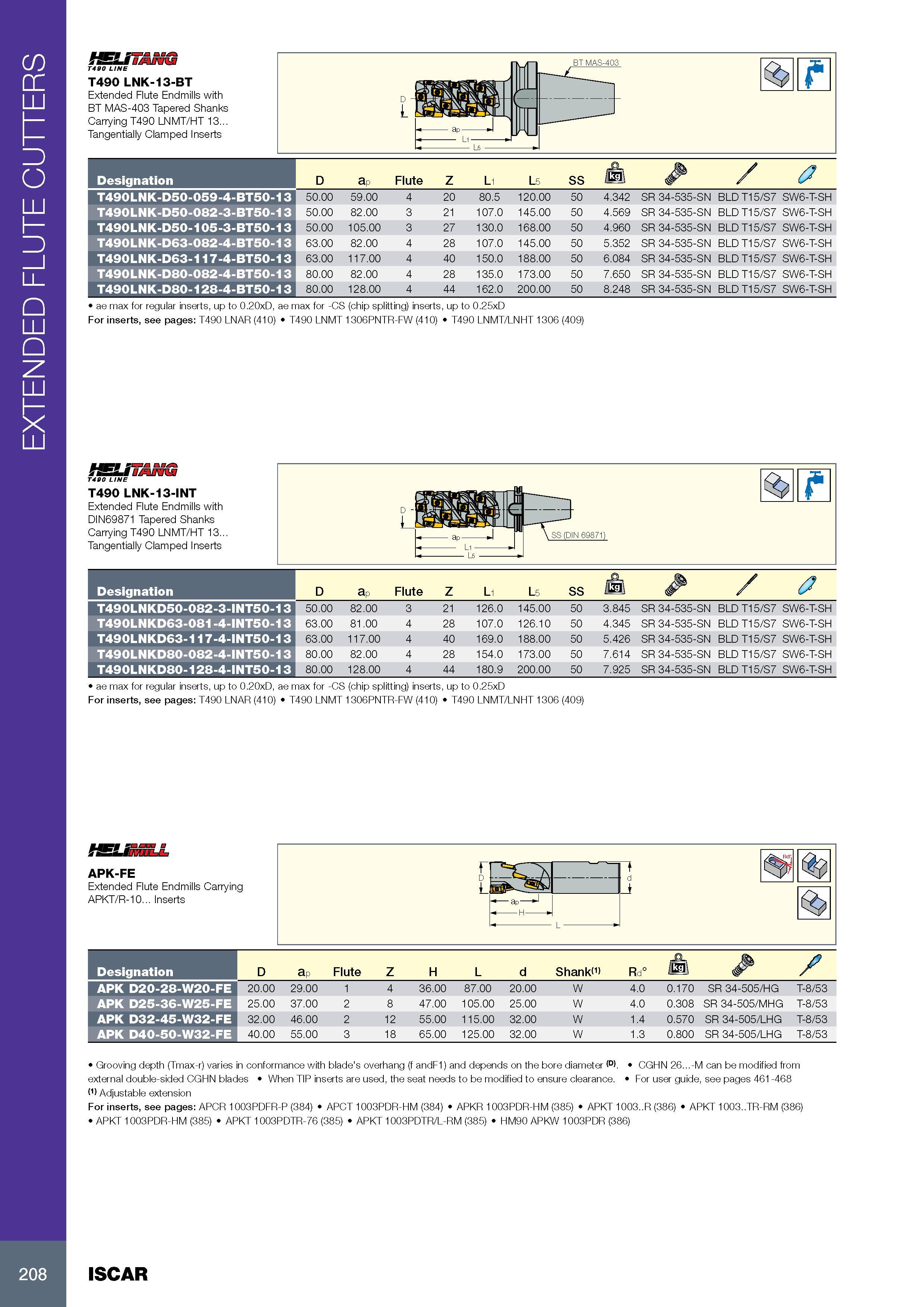

Фрезерный инструмент Iscar с твердосплавными режущими пластинами Длиннокромочные кукурузные фрезы Эскиз с основными размерами Обозначение Комплектующие EXTE

Фрезерный инструмент Iscar с твердосплавными режущими пластинами Длиннокромочные кукурузные фрезы Эскиз с основными размерами Обозначение Комплектующие EXTENDED FLUTE CUTTERS T4B0 LINE T490 LNK-13-BT Extended Flute Endmills with BT MAS-403 Tapered Shanks Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts D ap Flute Z L1 L5 SS X 50.00 59.00 4 20 80.5 120.00 50 4.342 SR 34-535-SN BLD T15/S7 SW6-T-SH 50.00 82.00 3 21 107.0 145.00 50 4.569 SR 34-535-SN BLD T15/S7 SW6-T-SH 50.00 105.00 3 27 130.0 168.00 50 4.960 SR 34-535-SN BLD T15/S7 SW6-T-SH 63.00 82.00 4 28 107.0 145.00 50 5.352 SR 34-535-SN BLD T15/S7 SW6-T-SH 63.00 117.00 4 40 150.0 188.00 50 6.084 SR 34-535-SN BLD T15/S7 SW6-T-SH 80.00 82.00 4 28 135.0 173.00 50 7.650 SR 34-535-SN BLD T15/S7 SW6-T-SH 80.00 128.00 4 44 162.0 200.00 50 8.248 SR 34-535-SN BLD T15/S7 SW6-T-SH ae max for regular inserts, up to 0.20xD, ae max for -CS (chip splitting) inserts, up to 0.25xD For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409) Обозначение Designation T490LNK-D50-059-4-BT50-13 T490LNK-D50-082-3-BT50-13 T490LNK-D50-105-3-BT50-13 T490LNK-D63-082-4-BT50-13 T490LNK-D63-117-4-BT50-13 T490LNK-D80-082-4-BT50-13 T490LNK-D80-128-4-BT50-13 fSUTANG T4B0 LINE T490 LNK-13-INT Extended Flute Endmills with DIN69871 Tapered Shanks Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts SS (DIN 69871) Обозначение Designation D ap Flute Z L1 L5 SS O Ml / 0 T490LNKD50-082-3-INT50-13 50.00 82.00 3 21 126.0 145.00 50 3.845 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD63-081-4-INT50-13 63.00 81.00 4 28 107.0 126.10 50 4.345 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD63-117-4-INT50-13 63.00 117.00 4 40 169.0 188.00 50 5.426 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD80-082-4-INT50-13 80.00 82.00 4 28 154.0 173.00 50 7.614 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD80-128-4-INT50-13 80.00 128.00 4 44 180.9 200.00 50 7.925 SR 34-535-SN BLD T15/S7 SW6-T-SH ae max for regular inserts, up to 0.20xD, ae max for -CS (chip splitting) inserts, up to 0.25xD For inserts, see pages: T490 LNAR (410) T490 LNMT 1306PNTR-FW (410) T490 LNMT/LNHT 1306 (409) APK-FE Extended Flute Endmills Carrying APKT/R-10... Inserts Обозначение Designation D ap Flute Z H L d Shank<1> Rd° Q Z' APK D20-28-W20-FE 20.00 29.00 1 4 36.00 87.00 20.00 W 4.0 0.170 SR 34-505/HG T-8/53 APK D25-36-W25-FE 25.00 37.00 2 8 47.00 105.00 25.00 W 4.0 0.308 SR 34-505/MHG T-8/53 APK D32-45-W32-FE 32.00 46.00 2 12 55.00 115.00 32.00 W 1.4 0.570 SR 34-505/LHG T-8/53 APK D40-50-W32-FE 40.00 55.00 3 18 65.00 125.00 32.00 W 1.3 0.800 SR 34-505/LHG T-8/53 Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andF1) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 461-468 (1) Adjustable extension For inserts, see pages: APCR 1003PDFR-P (384) APCT 1003PDR-HM (384) APKR 1003PDR-HM (385) APKT 1003..R (386) APKT 1003..TR-RM (386) APKT 1003PDR-HM (385) APKT 1003PDTR-76 (385) APKT 1003PDTR/L-RM (385) HM90 APKW 1003PDR (386) 208 ISCAR
