267 Каталог ISCAR 2016 Новый режущий инструмент и инструментальная оснастка Стр.265

Каталог ISCAR 2016 Новый режущий инструмент и оснастка Стр. 265 0267 Lab2u

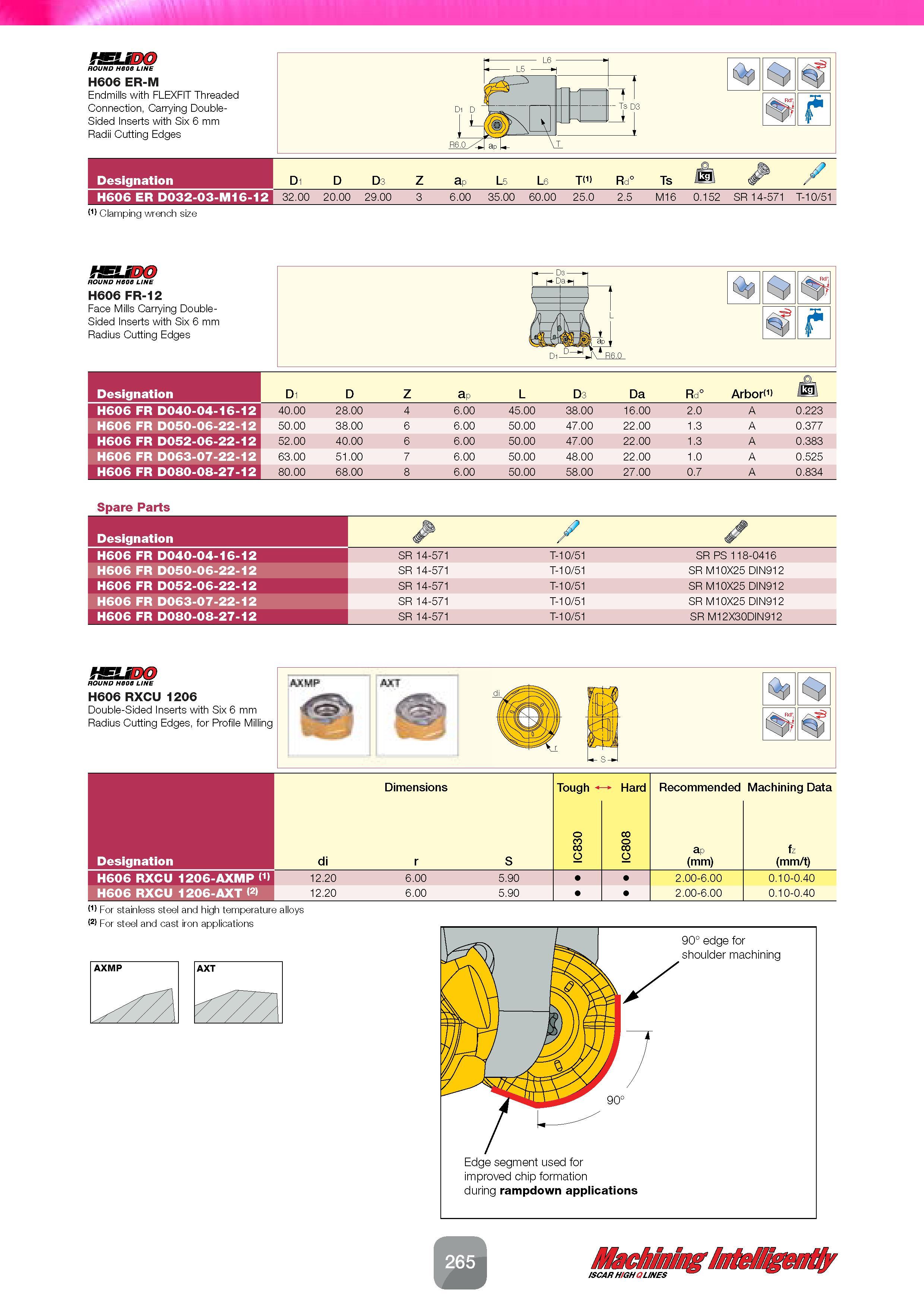

.. JUH T1 11.1 J tsum ROUND H60B LINE H606 ER-M Endmills with FLEXFIT Threaded Connection, Carrying DoubleSided Inserts with Six 6 mm Radii Cutting Edges T Ts D3 T f Designation D1 D D3 Z ap L5 L6 T<1) Rd° Ts H606 ER D032-03-M16-12 32.00 20.00 29.00 3 6.00 35.00 60.00 25.0 2.5 M16 0.152 SR 14-571 T-10/51 Clamping wrench size ISUDO ROUND H606 LINE H606 FR-12 Face Mills Carrying DoubleSided Inserts with Six 6 mm Radius Cutting Edges f6 Designation D1 D Z ap L D3 Da Rd° Arbor(1) /kjr H606 FR D040-04-16-12 40.00 28.00 4 6.00 45.00 38.00 16.00 2.0 A 0.223 H606 FR D050-06-22-12 50.00 38.00 6 6.00 50.00 47.00 22.00 1.3 A 0.377 H606 FR D052-06-22-12 52.00 40.00 6 6.00 50.00 47.00 22.00 1.3 A 0.383 H606 FR D063-07-22-12 63.00 51.00 7 6.00 50.00 48.00 22.00 1.0 A 0.525 H606 FR D080-08-27-12 80.00 68.00 8 6.00 50.00 58.00 27.00 0.7 A 0.834 Spare Parts Designation y H606 FR D040-04-16-12 SR 14-571 T-10/51 SR PS 118-0416 H606 FR D050-06-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H606 FR D052-06-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H606 FR D063-07-22-12 SR 14-571 T-10/51 SR M10X25 DIN912 H606 FR D080-08-27-12 SR 14-571 T-10/51 SR M12X30DIN912 muoo ROUND HBOB LINE H606 RXCU 1206 Double-Sided Inserts with Six 6 mm Radius Cutting Edges, for Profile Milling rf Dimensions Recommended Machining Data Designation di r S IC830 IC808 fz (mm/t) H606 RXCU 1206-AXMP (1) 12.20 6.00 5.90 2.00-6.00 0.10-0.40 H606 RXCU 1206-AXT (2) 12.20 6.00 5.90 2.00-6.00 0.10-0.40 (1) For stainless steel and high temperature alloys (2) For steel and cast iron applications /SCAR HGH LINES
