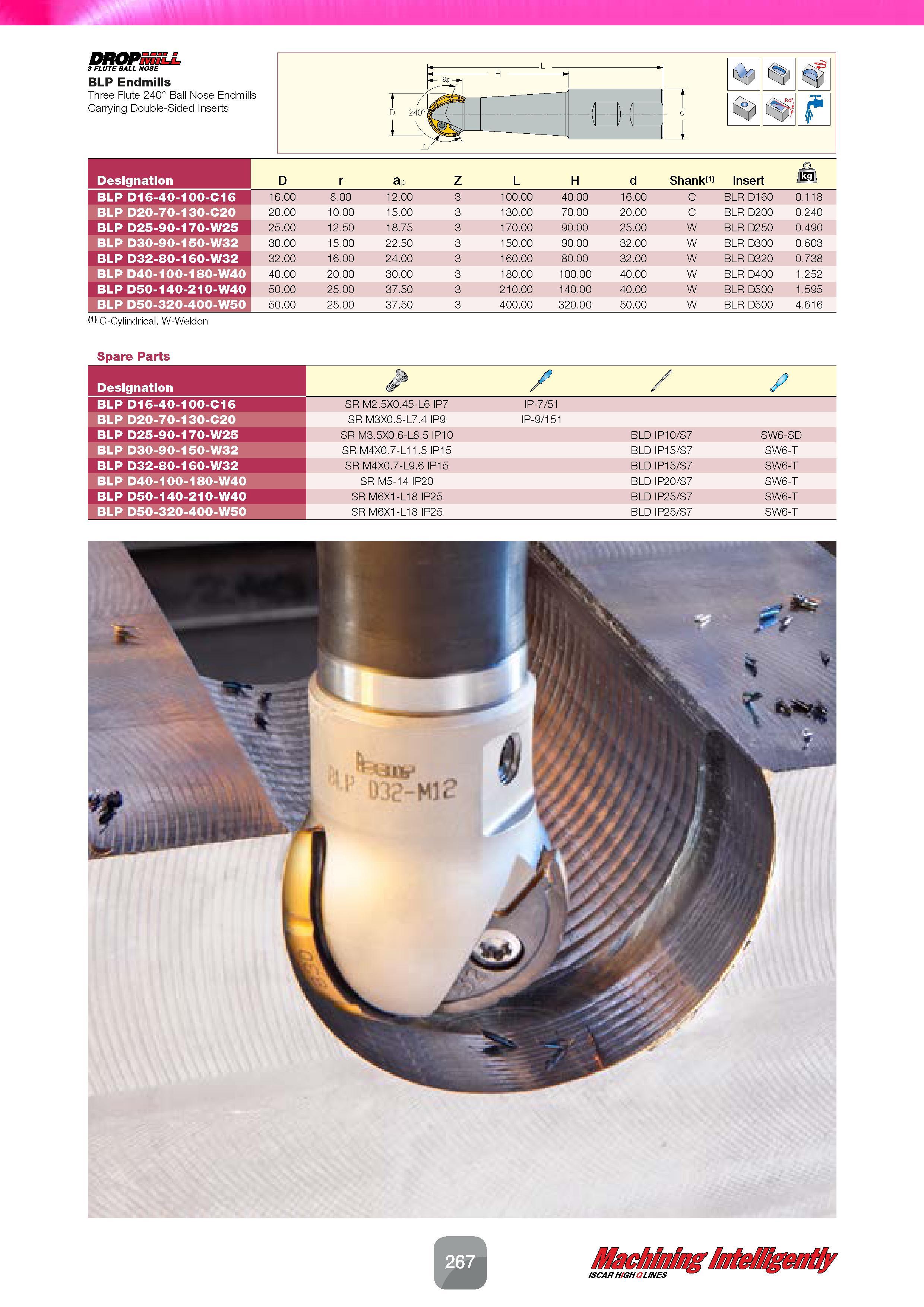

w DROP 3 FLUTE BALL NOSE BLP Endmills Three Flute 240° Ball Nose Endmills Carrying Double-Sided Inserts f C-Cylindrical, W-Weldon Spare Parts Designation D r ap Z L H d Shanks Insert BLP D16-40-100-C16 16.00 8.00 12.00 3 100.00 40.00 16.00 C BLR D160 0.118 BLP D20-70-130-C20 20.00 10.00 15.00 3 130.00 70.00 20.00 C BLR D200 0.240 BLP D25-90-170-W25 25.00 12.50 18.75 3 170.00 90.00 25.00 W BLR D250 0.490 BLP D30-90-150-W32 30.00 15.00 22.50 3 150.00 90.00 32.00 W BLR D300 0.603 BLP D32-80-160-W32 32.00 16.00 24.00 3 160.00 80.00 32.00 W BLR D320 0.738 BLP D40-100-180-W40 40.00 20.00 30.00 3 180.00 100.00 40.00 W BLR D400 1.252 BLP D50-140-210-W40 50.00 25.00 37.50 3 210.00 140.00 40.00 W BLR D500 1.595 BLP D50-320-400-W50 50.00 25.00 37.50 3 400.00 320.00 50.00 W BLR D500 4.616 Designation / BLP D16-40-100-C16 SR M2.5X0.45-L6 IP7 IP-7/51 BLP D20-70-130-C20 SR M3X0.5-L7.4 IP9 IP-9/151 BLP D25-90-170-W25 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD BLP D30-90-150-W32 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T BLP D32-80-160-W32 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T BLP D40-100-180-W40 SR M5-14 IP20 BLD IP20/S7 SW6-T BLP D50-140-210-W40 SR M6X1-L18 IP25 BLD IP25/S7 SW6-T BLP D50-320-400-W50 SR M6X1-L18 IP25 BLD IP25/S7 SW6-T
