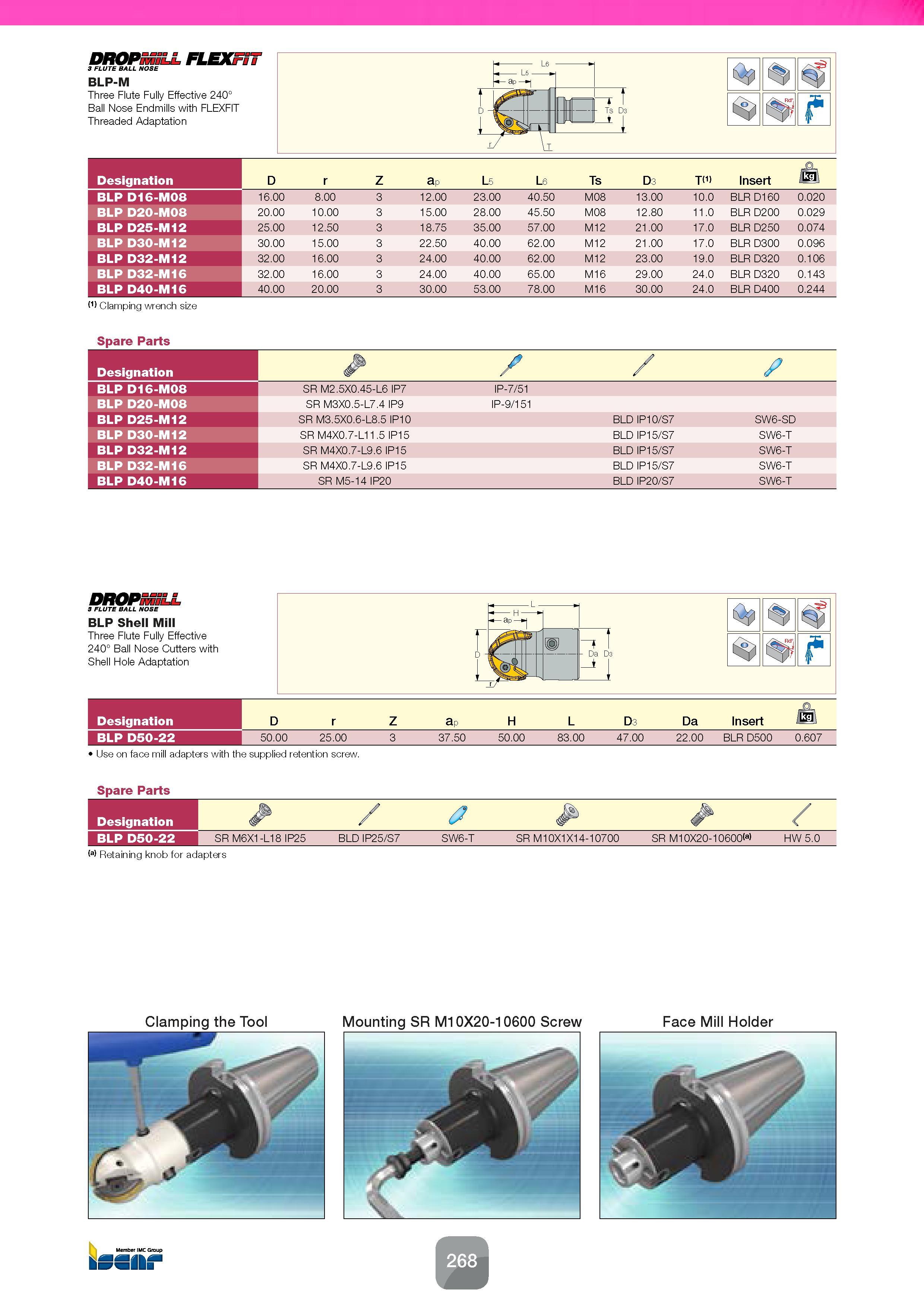

DROP FLEXFiT 3 FLUTE BALL NOSE BLP-M Three Flute Fully Effective 240° Ball Nose Endmills with FLEXFIT Threaded Adaptation t Designation D r Z ap L5 L6 Ts D3 Tl1) Insert BLP D16-M08 16.00 8.00 3 12.00 23.00 40.50 M08 13.00 10.0 BLR D160 0.020 BLP D20-M08 20.00 10.00 3 15.00 28.00 45.50 M08 12.80 11.0 BLR D200 0.029 BLP D25-M12 25.00 12.50 3 18.75 35.00 57.00 M12 21.00 17.0 BLR D250 0.074 BLP D30-M12 30.00 15.00 3 22.50 40.00 62.00 M12 21.00 17.0 BLR D300 0.096 BLP D32-M12 32.00 16.00 3 24.00 40.00 62.00 M12 23.00 19.0 BLR D320 0.106 BLP D32-M16 32.00 16.00 3 24.00 40.00 65.00 M16 29.00 24.0 BLR D320 0.143 BLP D40-M16 40.00 20.00 3 30.00 53.00 78.00 M16 30.00 24.0 BLR D400 0.244 (1) Clamping wrench size Spare Parts Designation / BLP D16-M08 SR M2.5X0.45-L6 IP7 IP-7/51 BLP D20-M08 SR M3X0.5-L7.4 IP9 IP-9/151 BLP D25-M12 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD BLP D30-M12 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T BLP D32-M12 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T BLP D32-M16 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T BLP D40-M16 SR M5-14 IP20 BLD IP20/S7 SW6-T DROPSSLL 3 FLUTE BALL NOSE BLP Shell Mill Three Flute Fully Effective 240° Ball Nose Cutters with Shell Hole Adaptation 'Vj1 t Use on face mill adapters with the supplied retention screw. Spare Parts Designation D r Z ap H L D3 Da Insert Ml BLP D50-22 50.00 25.00 3 37.50 50.00 83.00 47.00 22.00 BLR D500 0.607 Designation /' BLP D50-22 SR M6X1-L18 IP25 BLD IP25/S7 SW6-T SR M10X1X14-10700 SR M10X20-10600(a) HW 5.0 (a) Retaining knob for adapters
