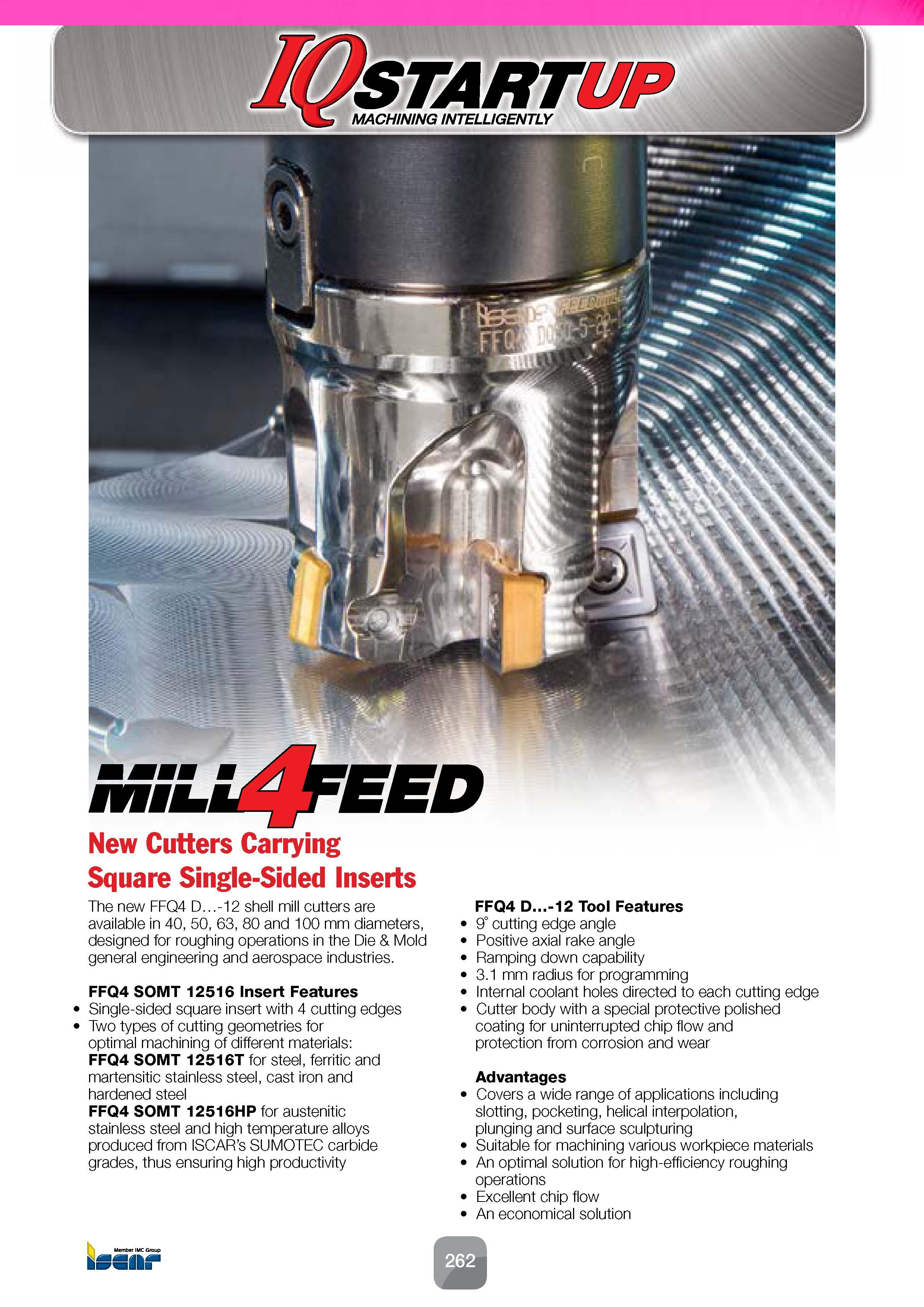

New Cutters Carrying Square Single-Sided Inserts The new FFQ4 D...-12 shell mill cutters are available in 40, 50, 63, 80 and 100 mm diameters, designed for roughing operations in the Die & Mold general engineering and aerospace industries. FFQ4 SOMT 12516 Insert Features Single-sided square insert with 4 cutting edges Two types of cutting geometries for optimal machining of different materials: FFQ4 SOMT 12516T for steel, ferritic and martensitic stainless steel, cast iron and hardened steel FFQ4 SOMT 12516HP for austenitic stainless steel and high temperature alloys produced from ISCAR’s SUMOTEC carbide grades, thus ensuring high productivity FFQ4 D...-12 Tool Features 9° cutting edge angle Positive axial rake angle Ramping down capability 3.1 mm radius for programming Internal coolant holes directed to each cutting edge Cutter body with a special protective polished coating for uninterrupted chip flow and protection from corrosion and wear Advantages Covers a wide range of applications including slotting, pocketing, helical interpolation, plunging and surface sculpturing Suitable for machining various workpiece materials An optimal solution for high-efficiency roughing operations Excellent chip flow An economical solution JS Member IMC Group
